Texas Star Modulator Plus, Modulator V-Plus Service Manual

Texas Star Modulator Plus, Modulator V-Plus
Documentation Project
CBTricks.com

Modulator Plus

Click to see full size

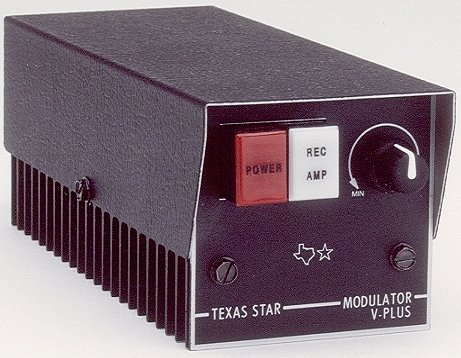

Modulator V-Plus

Click to see full size

Please Note: You need to have Acrobat Reader version 5 or newer installed to view the files with icon. If the files with or icon will not display see the Site FAQ for help on printing and using this information. See section notes for more infomation.
MODIFICATIONS
MOD Plus CW Transmitter To AMP Conversion MOD V Plus CW Transmitter To AMP Conversion
DIAGRAMS

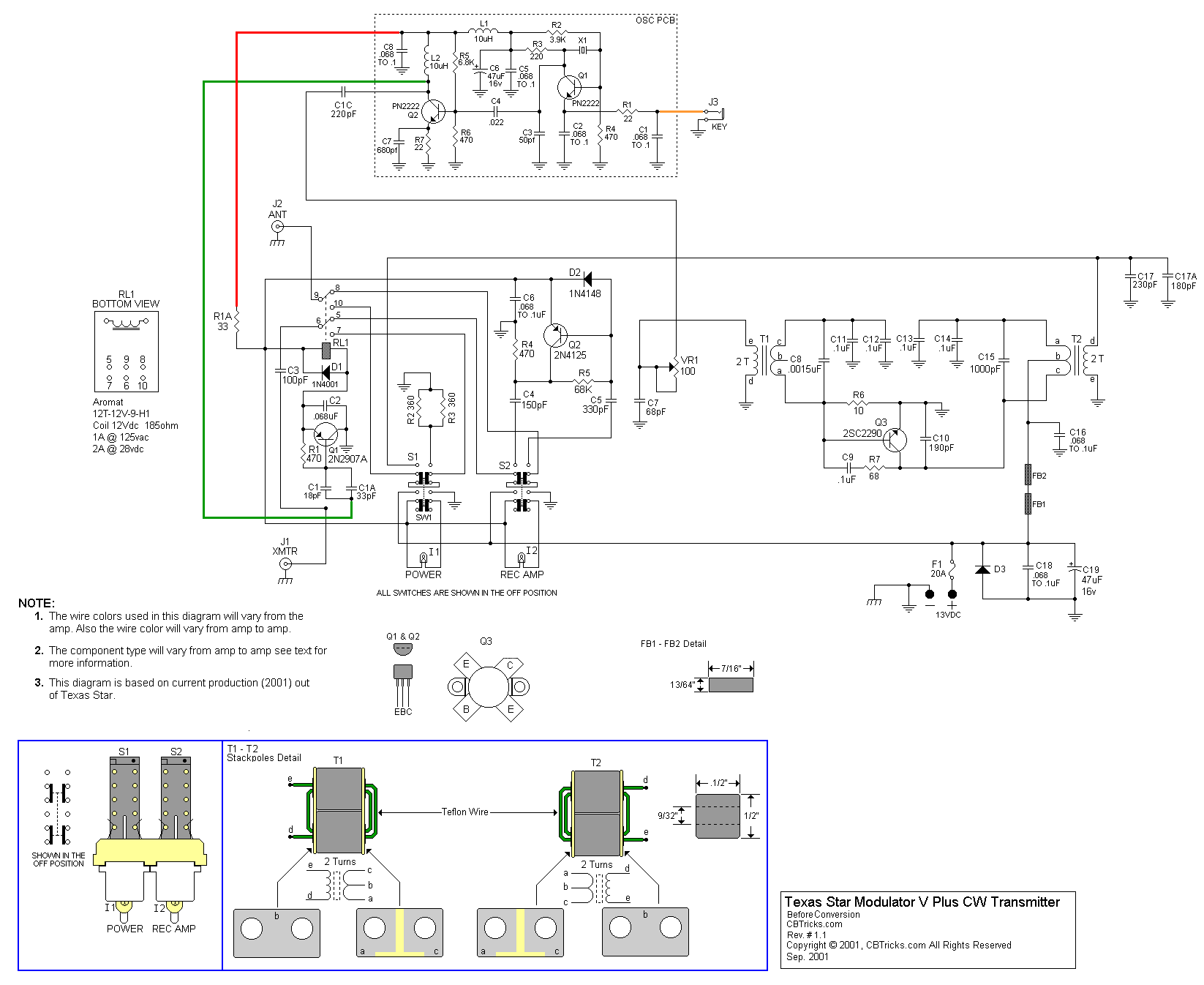

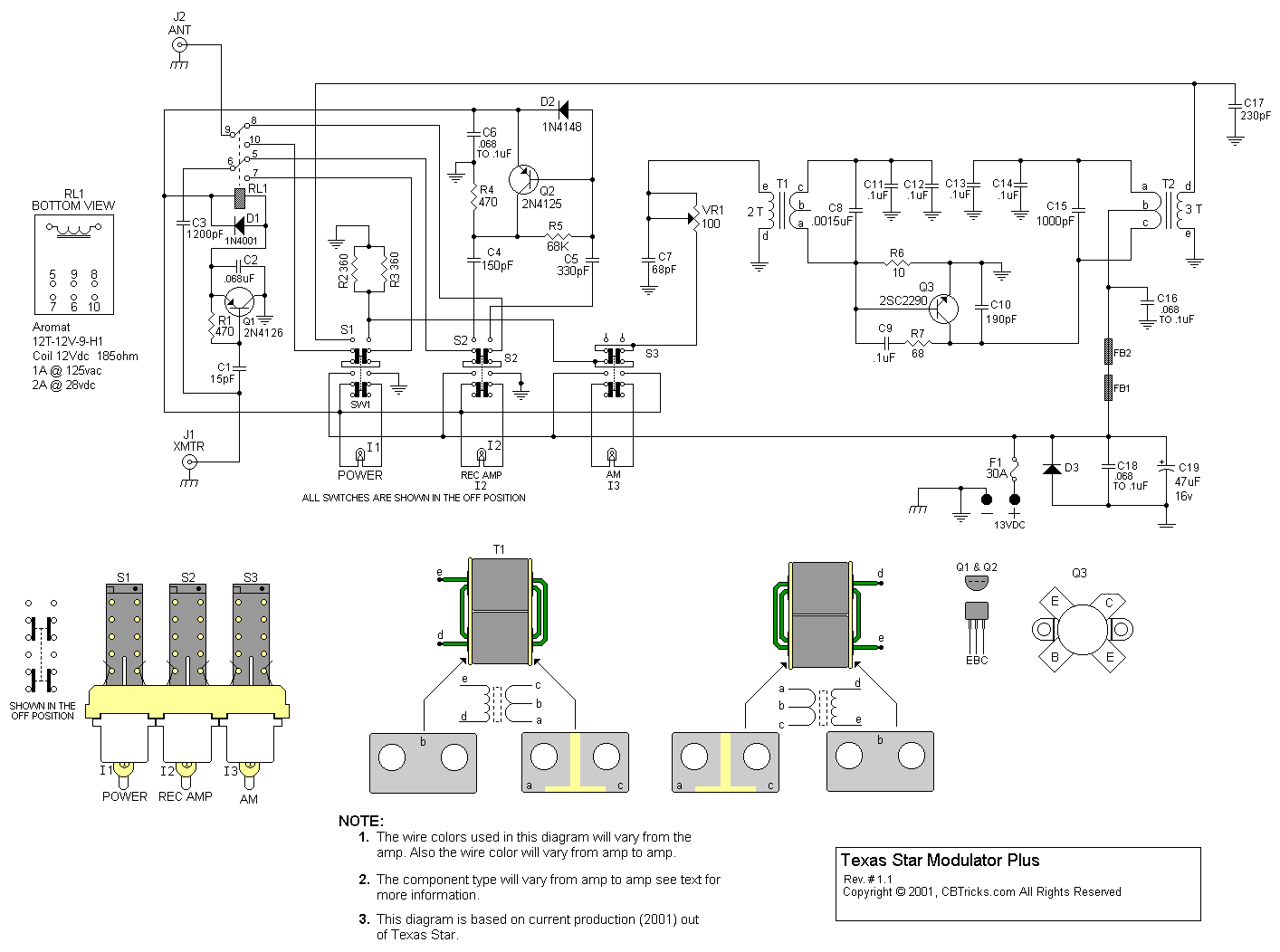

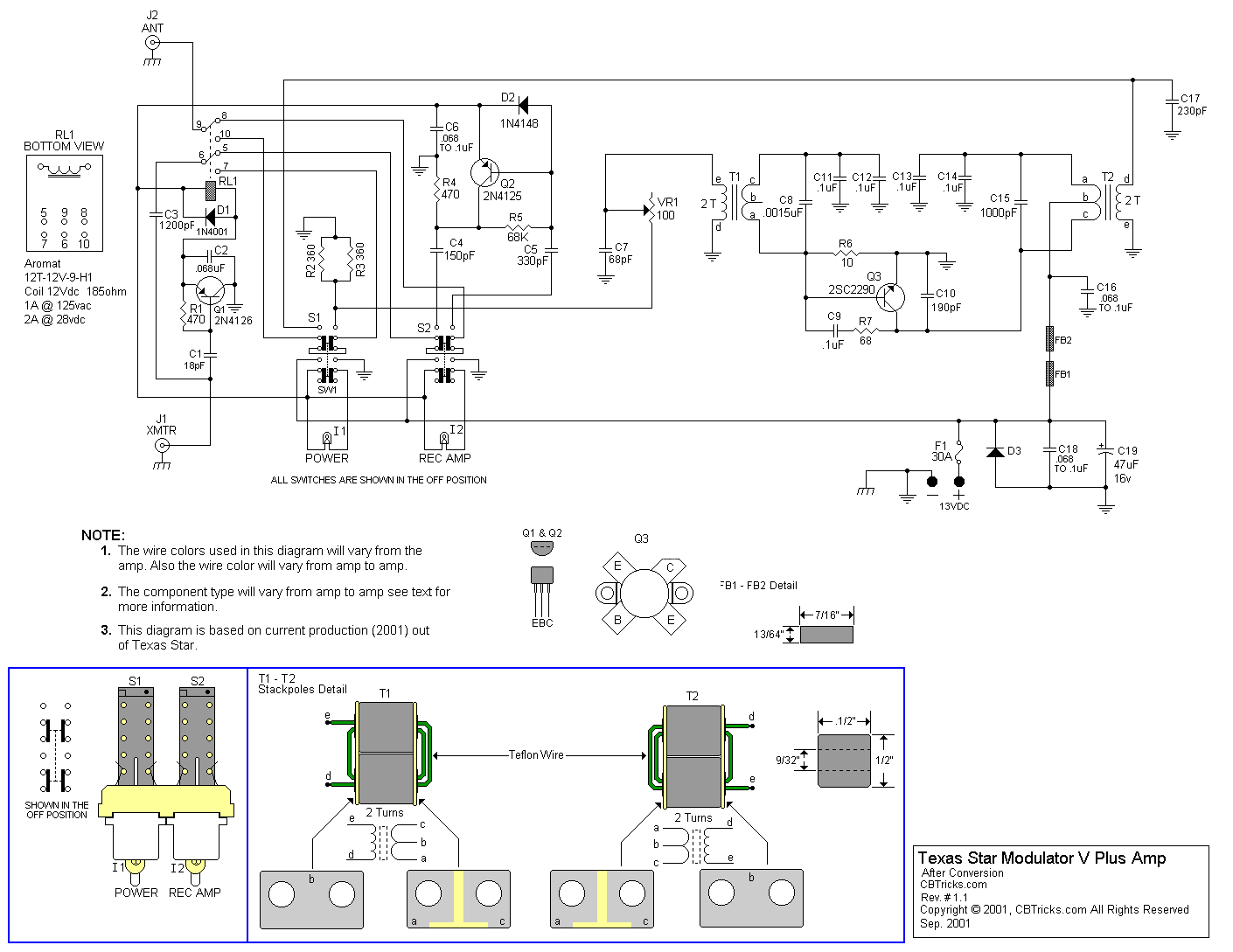

MOD Plus Schematic Diagram (8.5x11) MOD V Plus Schematic Diagram (8.5x11) MOD V Plus CWTX Schematic Diagram (8.5x11)	MOD Plus Schematic Diagram MOD V Plus Schematic Diagram MOD V Plus CWTX Schematic Diagram
PCB Layouts and Parts

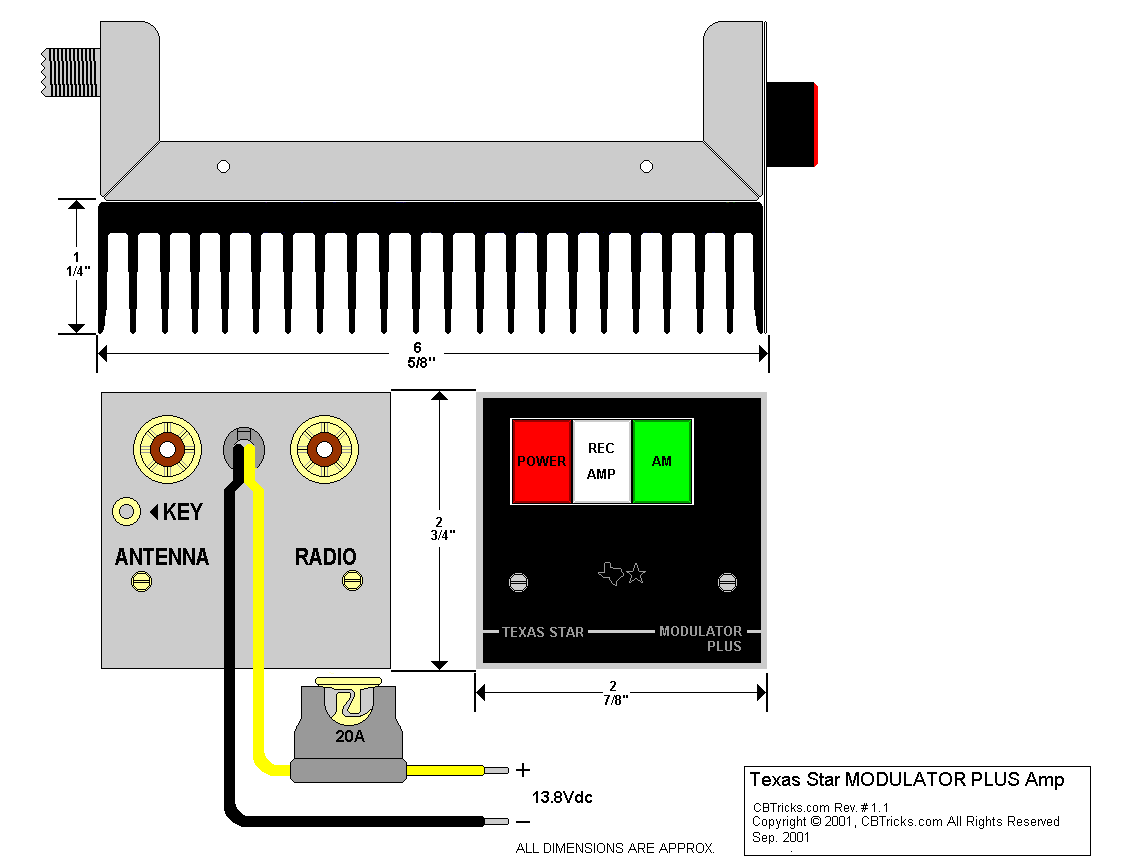

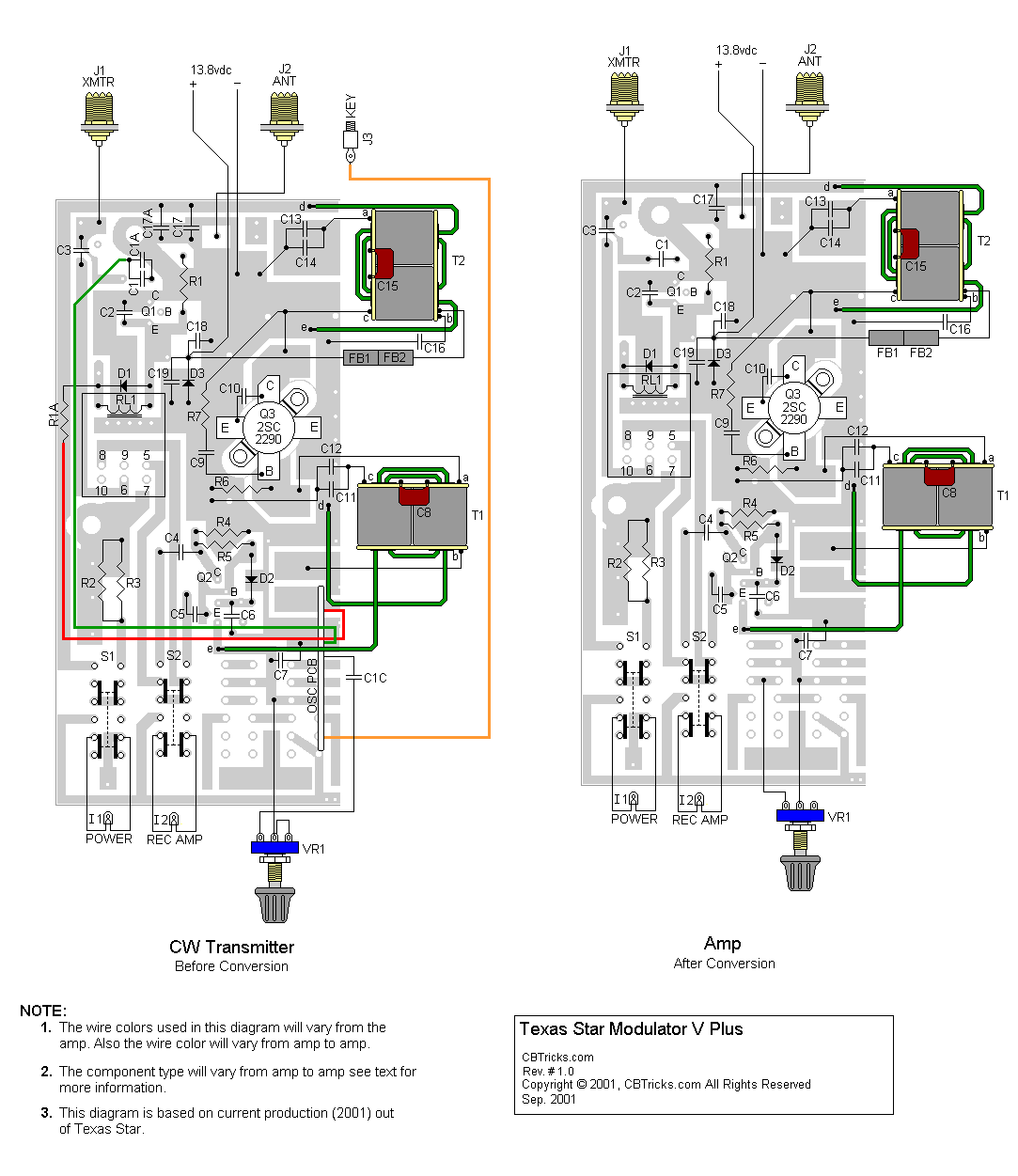

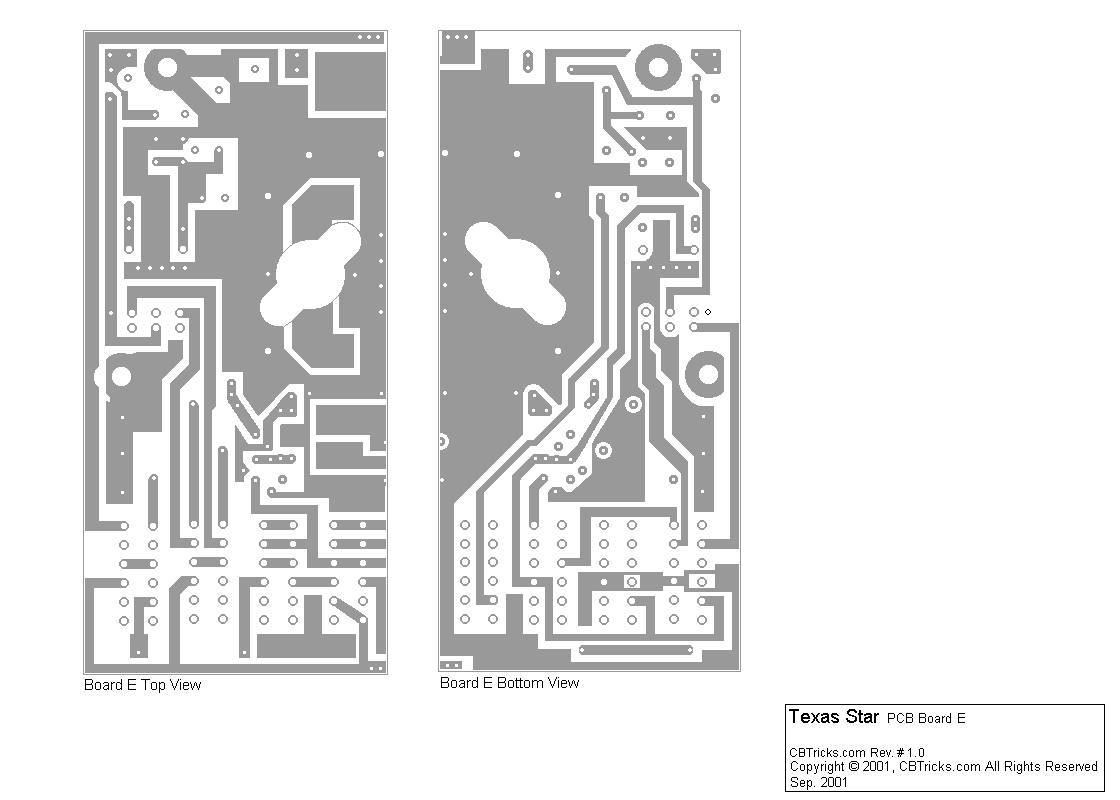

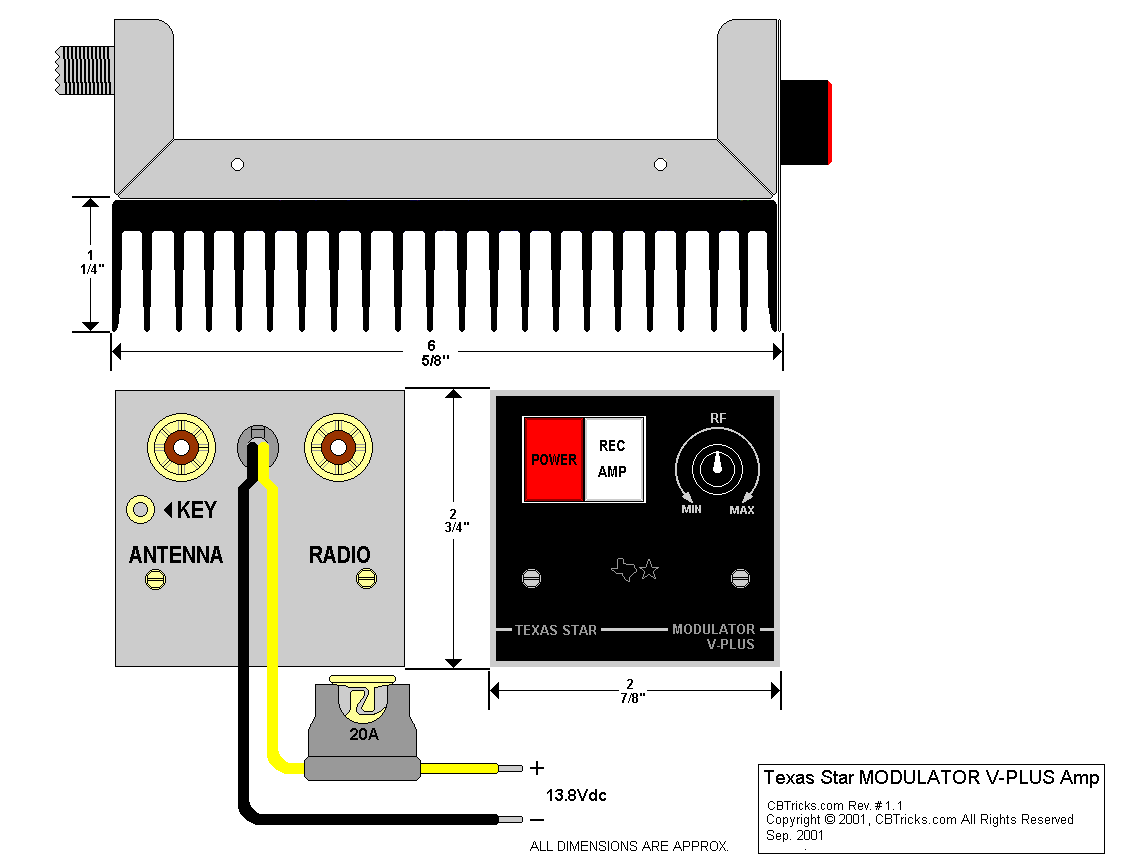

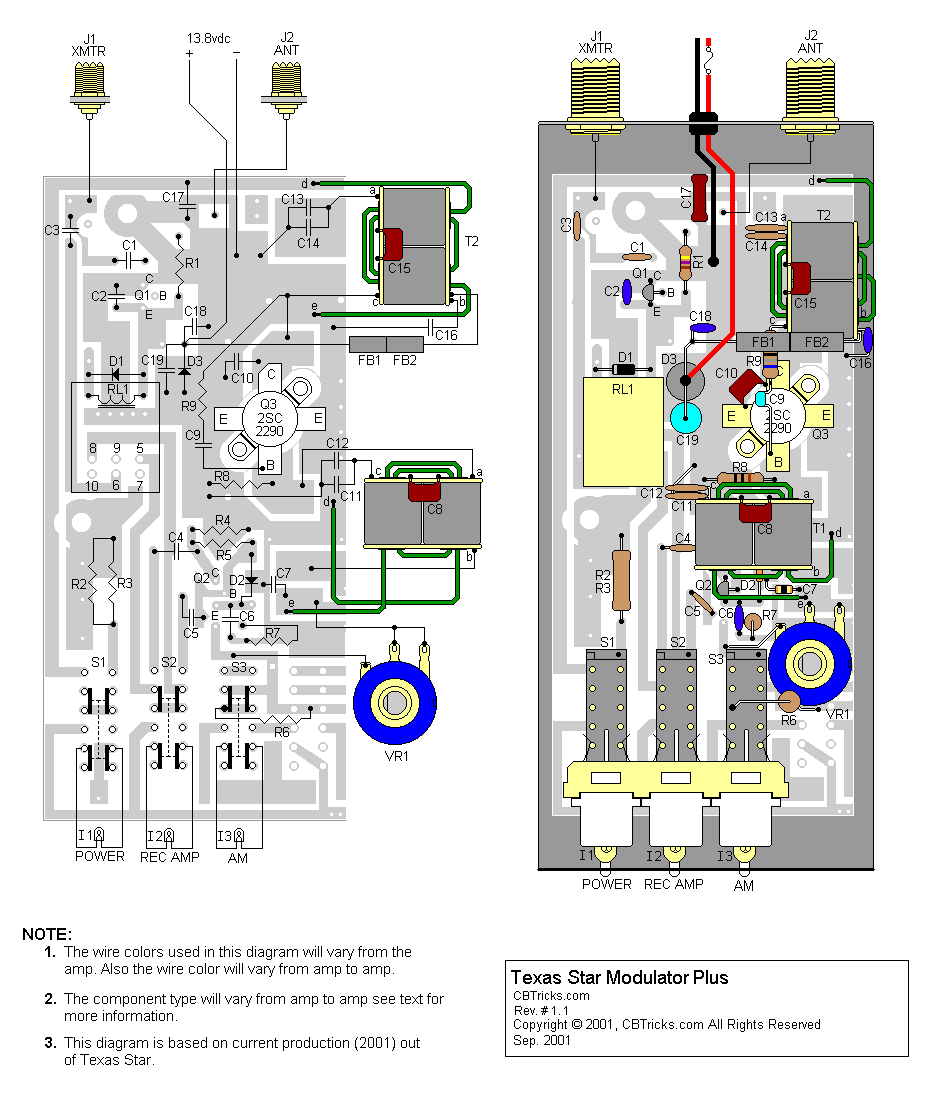

MOD Plus Inter-Connection Diagram/Layouts (8.5x11) MOD V Plus Inter-Connection Diagram (8.5x11) MOD V Plus PCB Layouts (8.5x11) PCB Trace Layouts (Board E) (8.5x11) MOD Plus Cabinet View (8.5x11) MOD V Plus Cabinet View (8.5x11) MOD Plus MOD V Plus Parts List Component Datasheet Section	MOD Plus Inter-Connection Diagram/Layouts MOD V Plus Inter-Connection Diagram MOD V Plus PCB Layouts PCB Trace Layouts (Board E) MOD Plus Cabinet View MOD V Plus Cabinet View

Quick Links
Texas Star Amplifier Accessories	Texas Star Model Index
Amplifier Section Index	Back To CBTricks.com
Section Notes and Information	General Information
