Texas Star DX 1000V
Documentation Project
CBTricks.com

SPECIFICATIONS
Power / Current Chart
Install Note
Remote Control hookup Info.
Remote Control Schematic

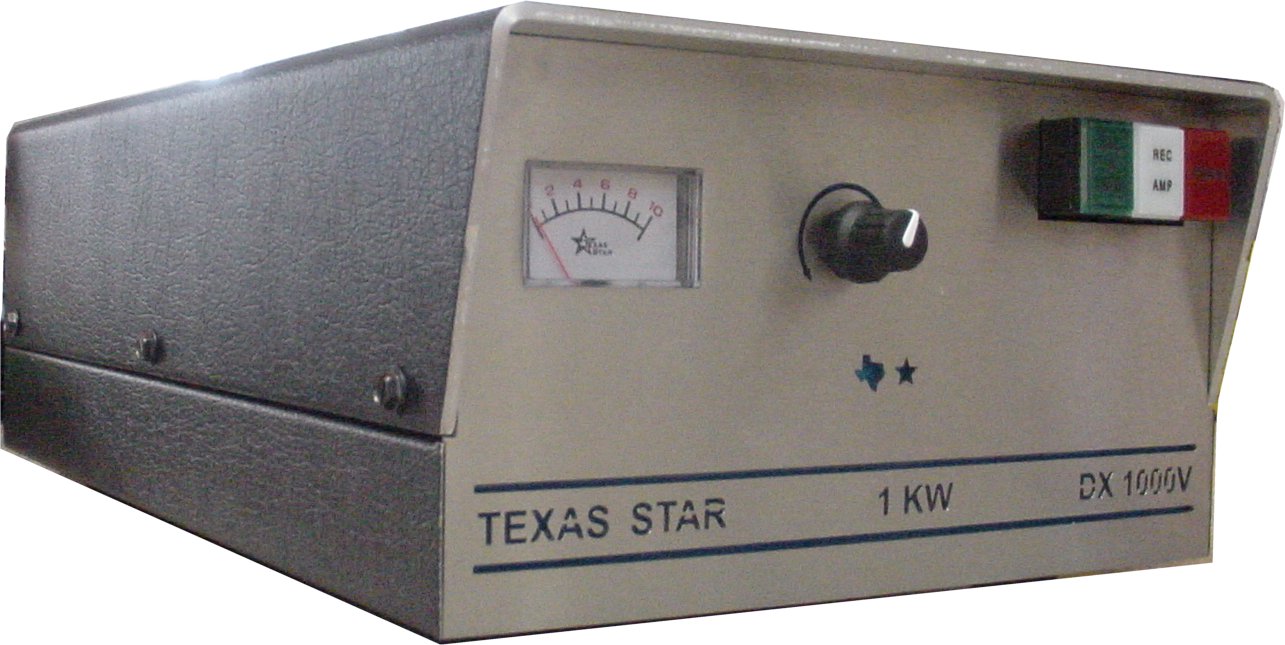

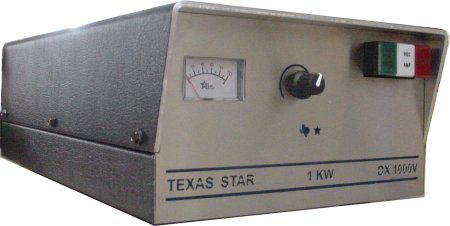

Picture Tour of The DX 1000V

DX1000V Updates
July 2007

DX 1000V

Click Picture to see full size

Please Note:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing and using this information.

The schematics are best if printed on 11x17 (B size) paper. They can be printed on 8.5x11 by clicking "shrink oversize pages to paper size". See section notes for more infomation.

MODIFICATIONS

   CW Transmitter To AMP Conversion


DIAGRAMS

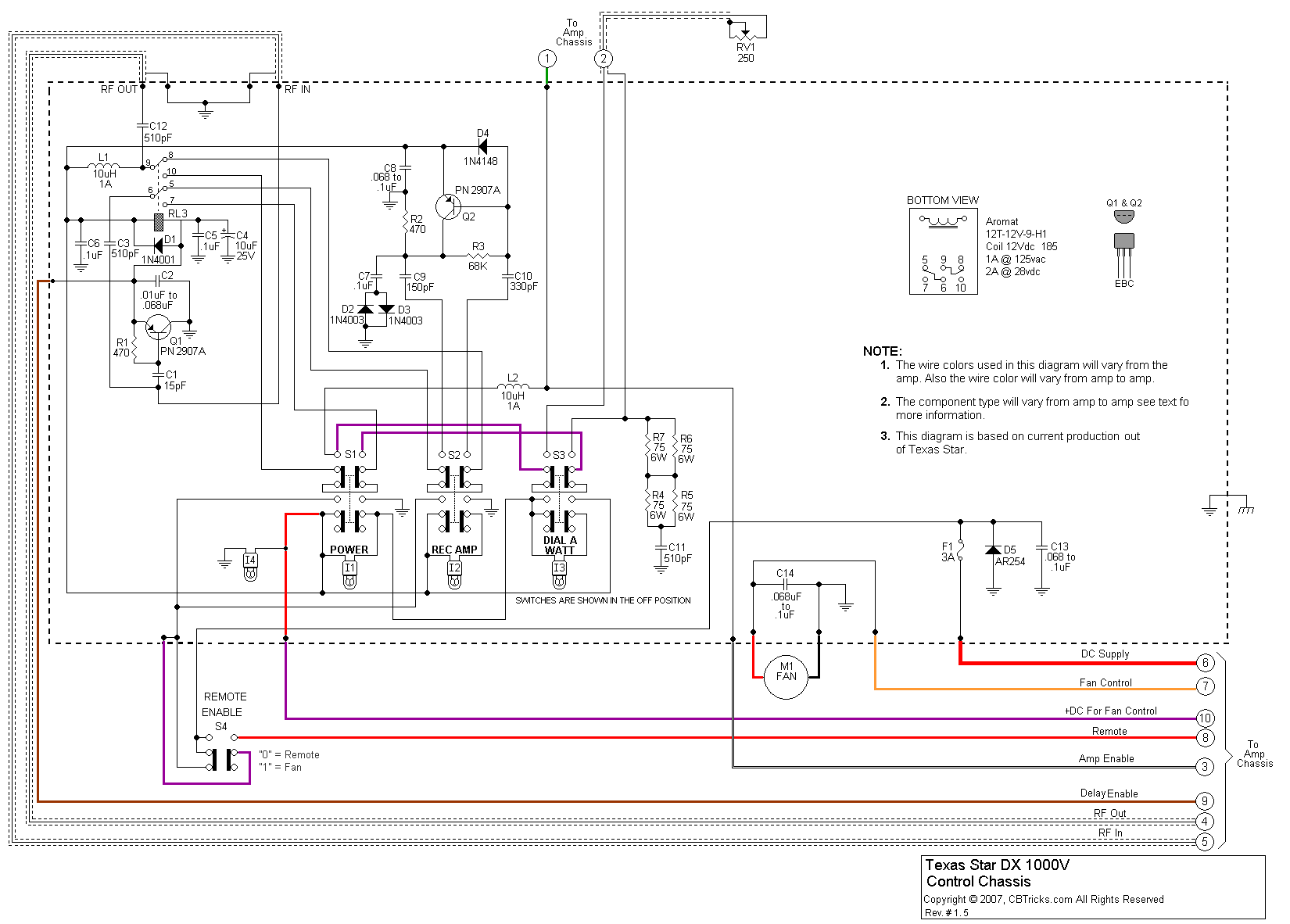

    Schematic Diagram (Control Chassis) (11x17)

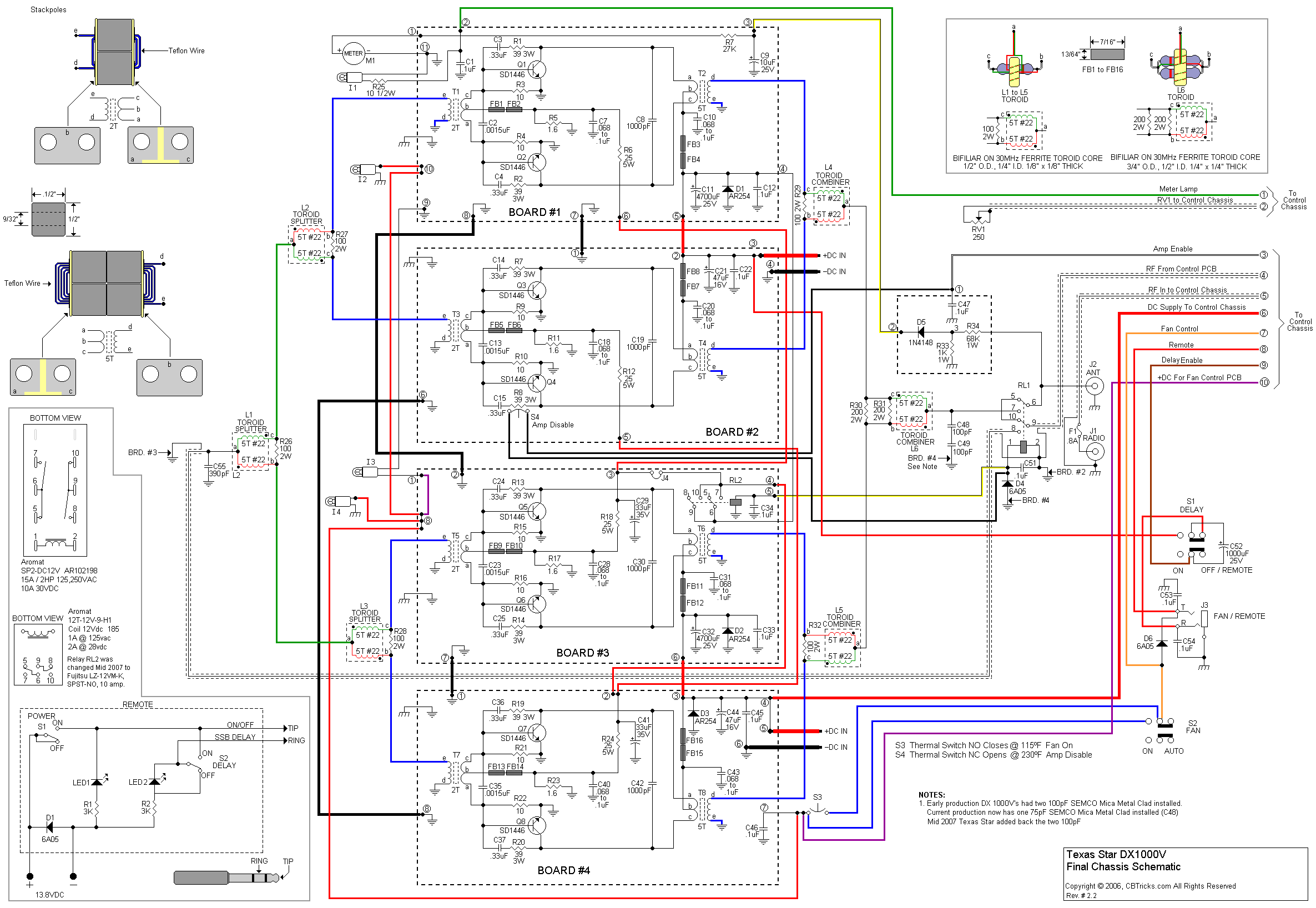

    Schematic Diagram (Amp Chassis) (11x17)
    Schematic Diagram (Control Chassis)
    Schematic Diagram (Amp Chassis)
PCB Layouts and Parts

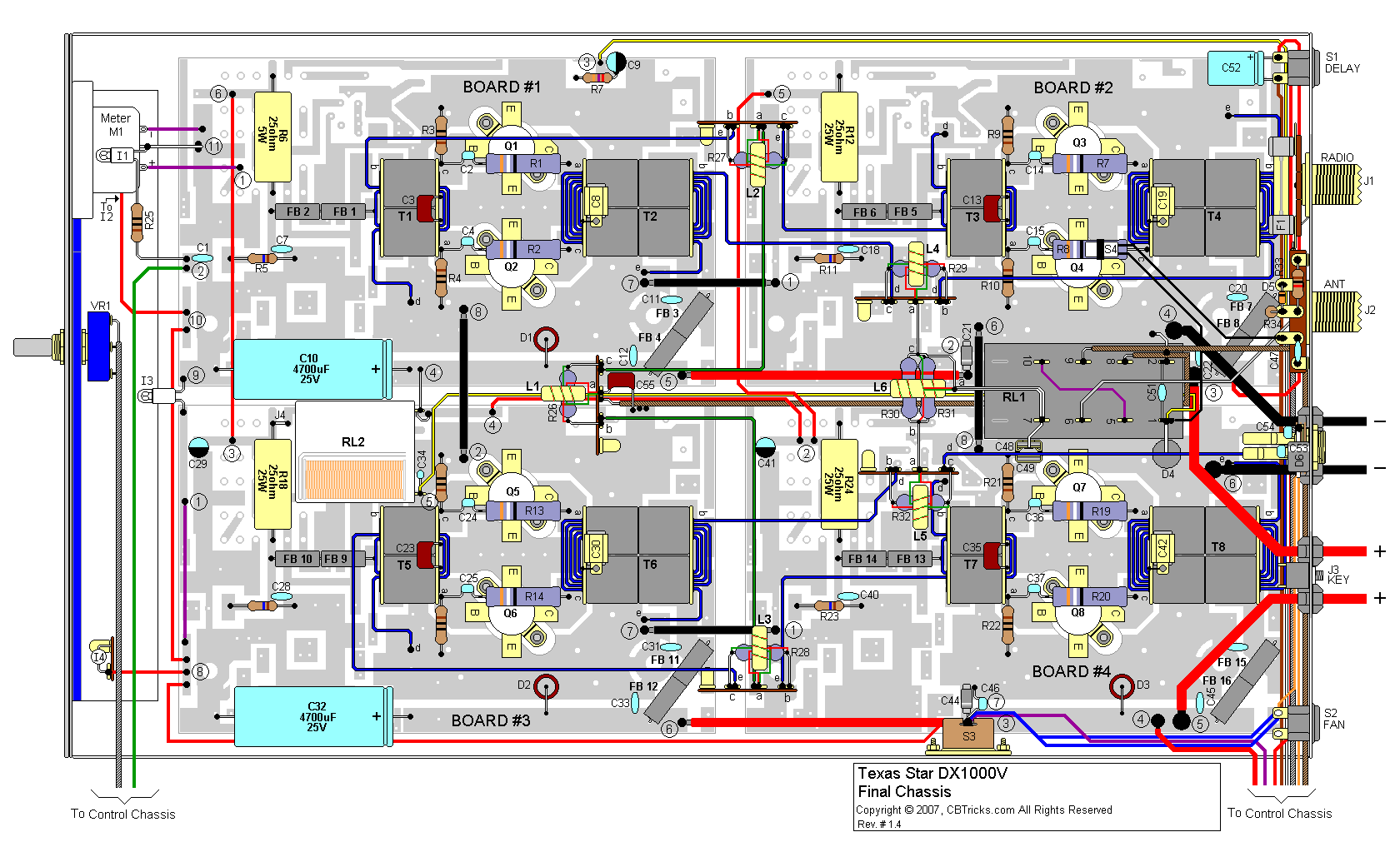

     Amp Chassis PCB Layouts (11x17)

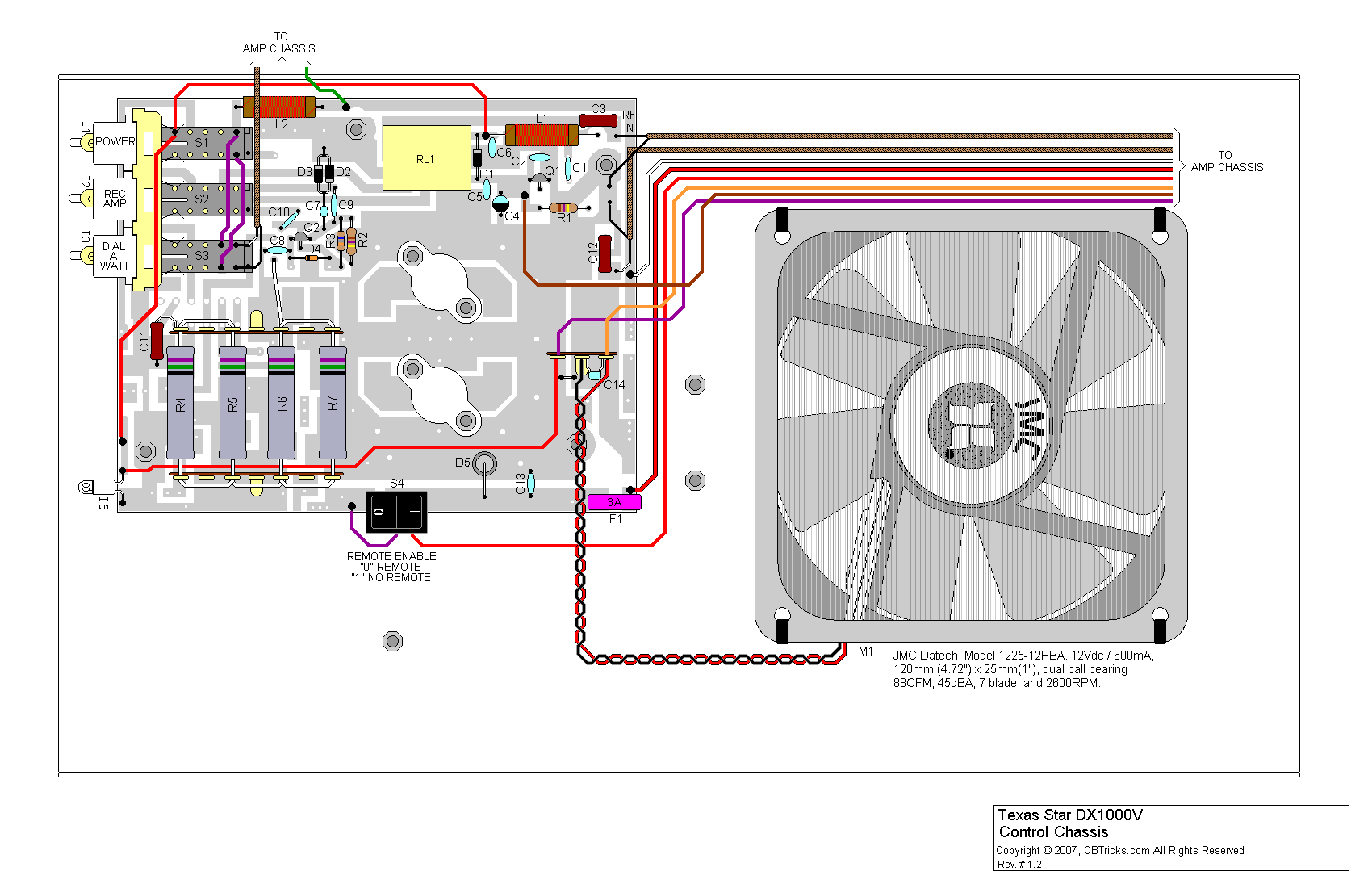

     Control Chassis PCB Layouts (11x17)

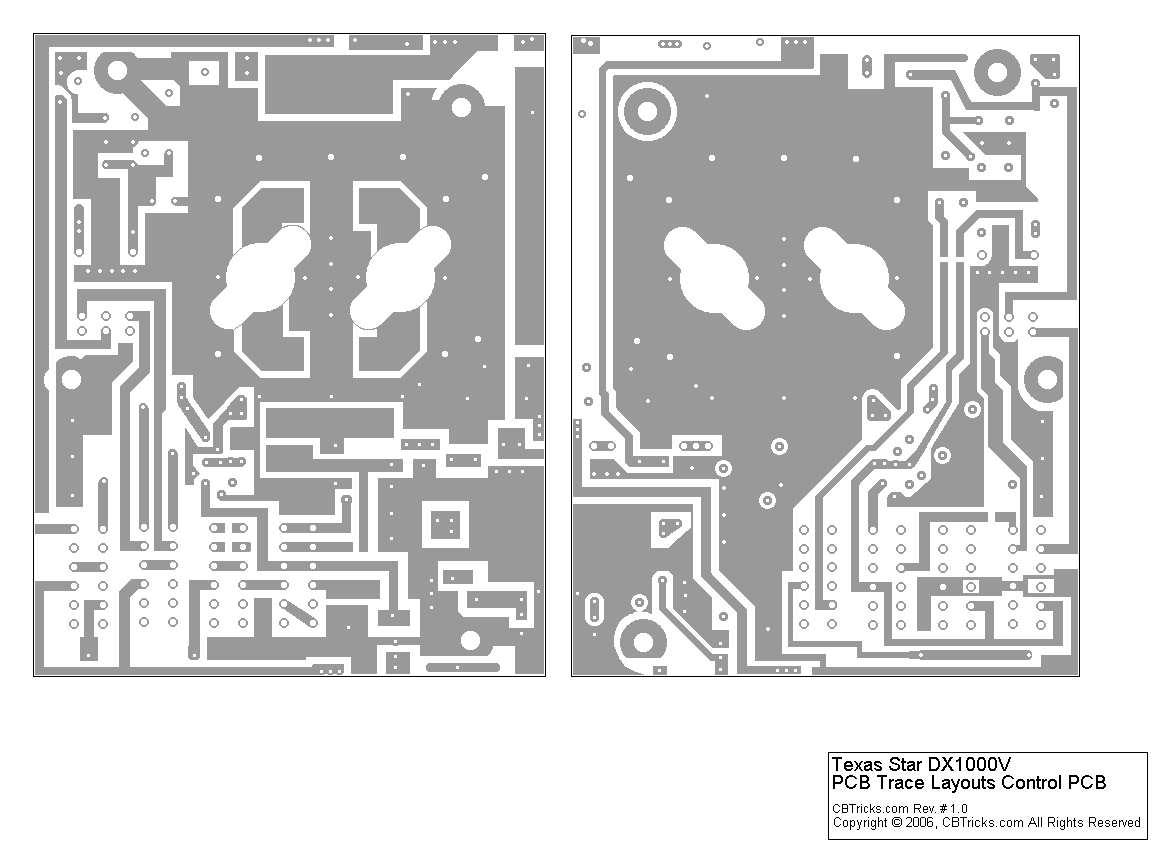

     PCB Trace Layouts Control (8.5x11)

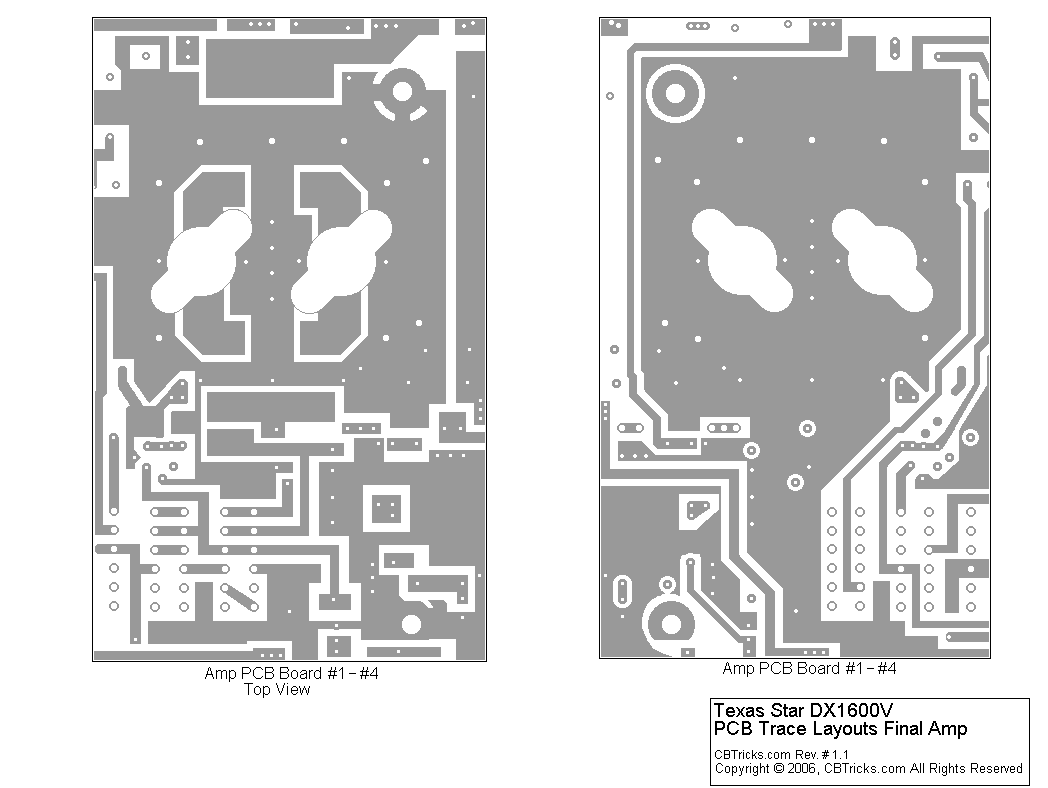

     PCB Trace Layouts Amp (8.5x11)

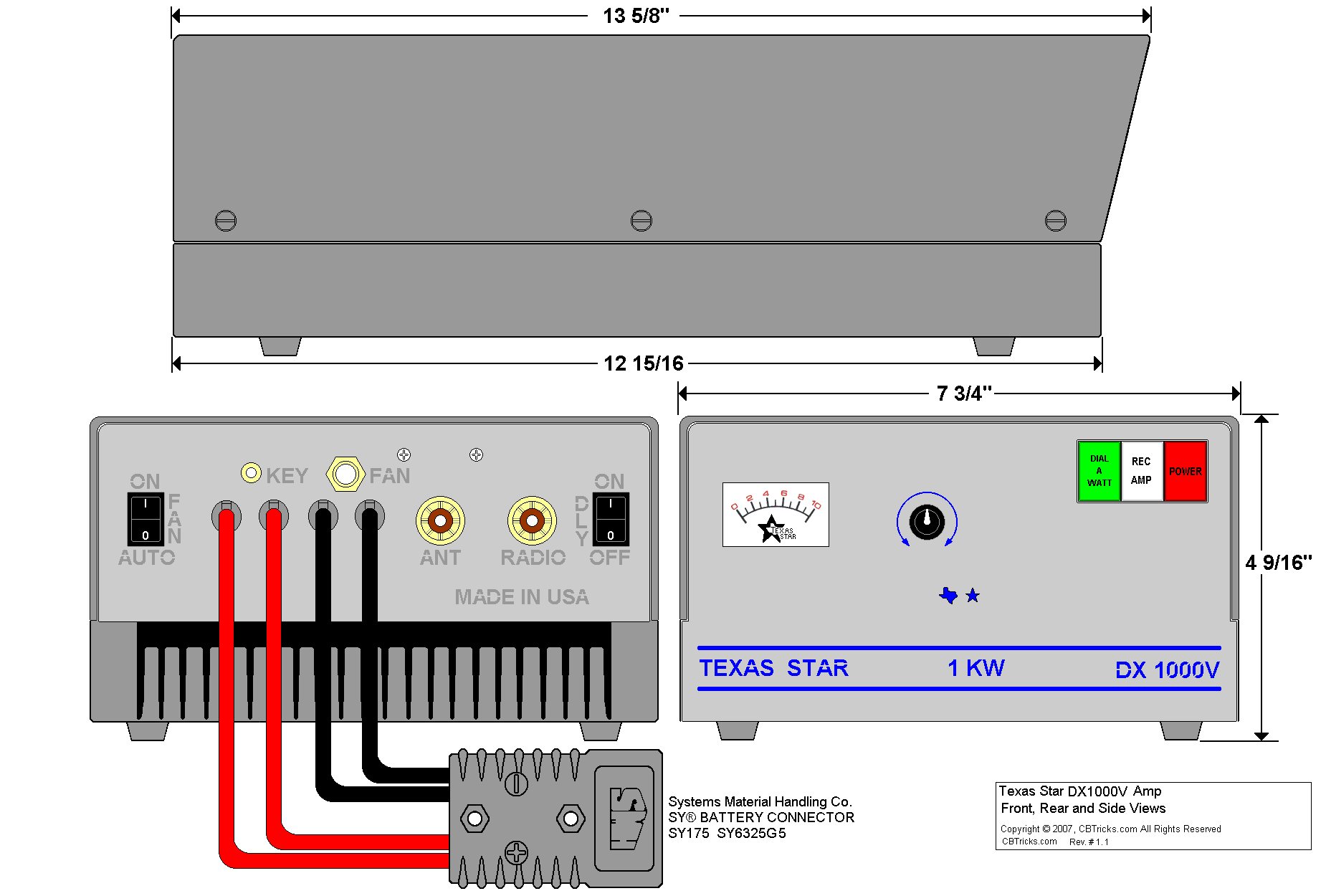

     Cabinet Views (11x17)


     DX 1000V Parts List Amp Chassis
     DX 1000V Parts List Control Chassis
     Component Datasheet Section


     Amp Chassis PCB Layouts
     Control Chassis PCB Layouts
     PCB Trace Layouts Control
     PCB Trace Layouts Amp
     Cabinet Views
