Texas
Star DX1000V (Updates)
CBTricks.com
|

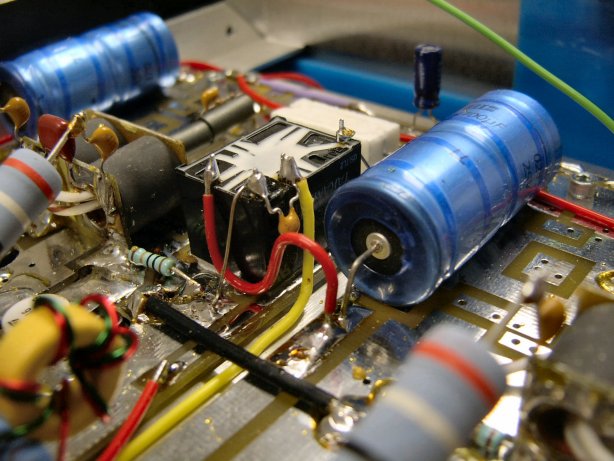

Mid 2007 Bias Relay Update - The relay RL2 is the new bias relay part number Fujitsu LZ-12VM-K, SPST-NO, 10 amp.

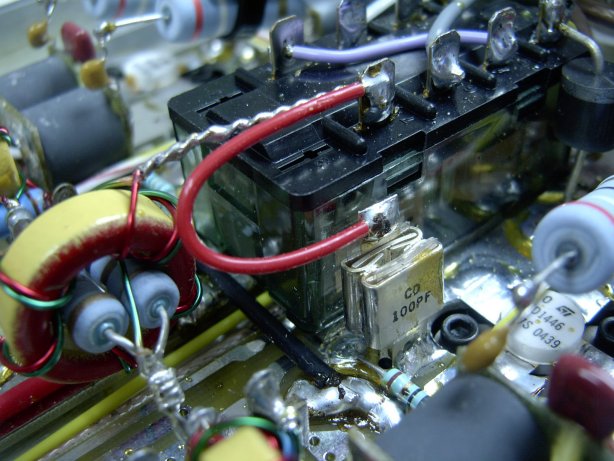

Two 100pF metal micas C48 and C49 in series and mounted in front of relay RL1 on PCB # 4 replaces C48, C49, C50.
|
