Texas Star DX 350 Bi-Lateral
Documentation Project
CBTricks.com

Pictures of the Inside

DX350 Bi-Lateral

Click to see full size

Please Note:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing and using this information.

See section notes for more infomation.

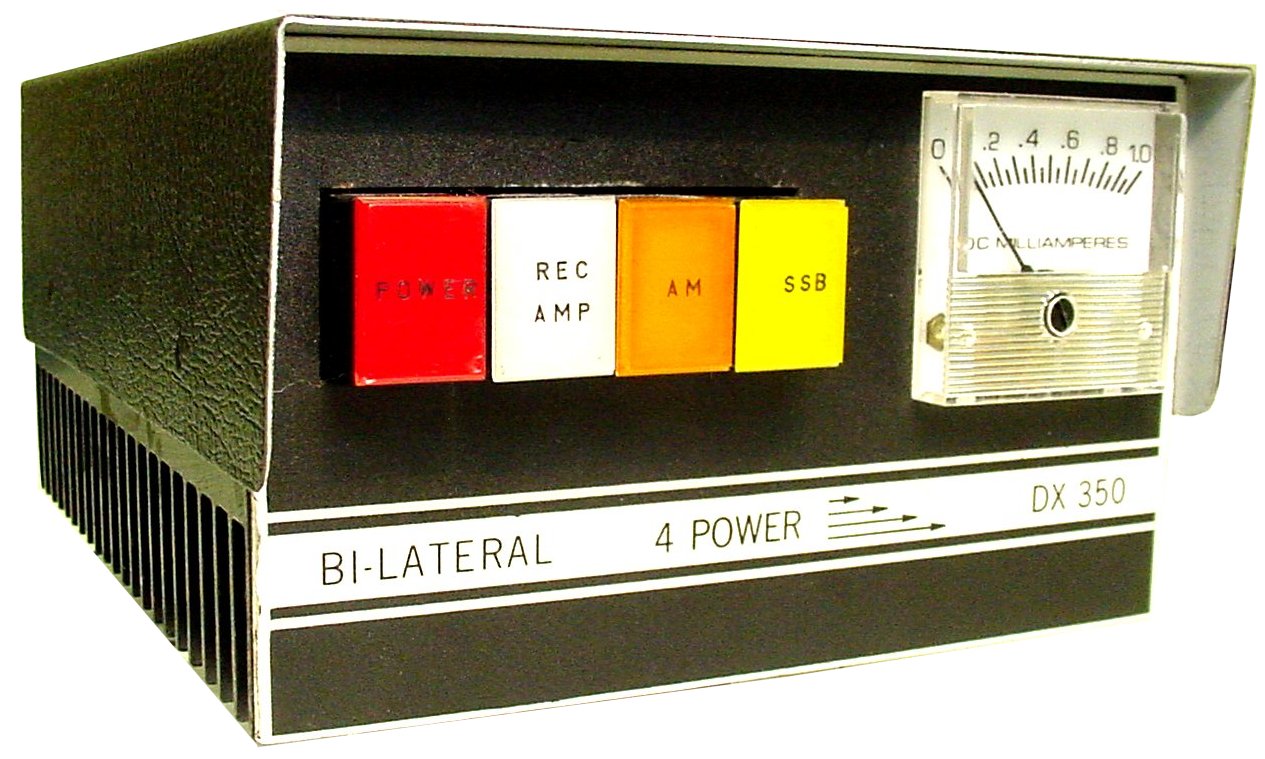

Picture of inside of amp
DIAGRAMS

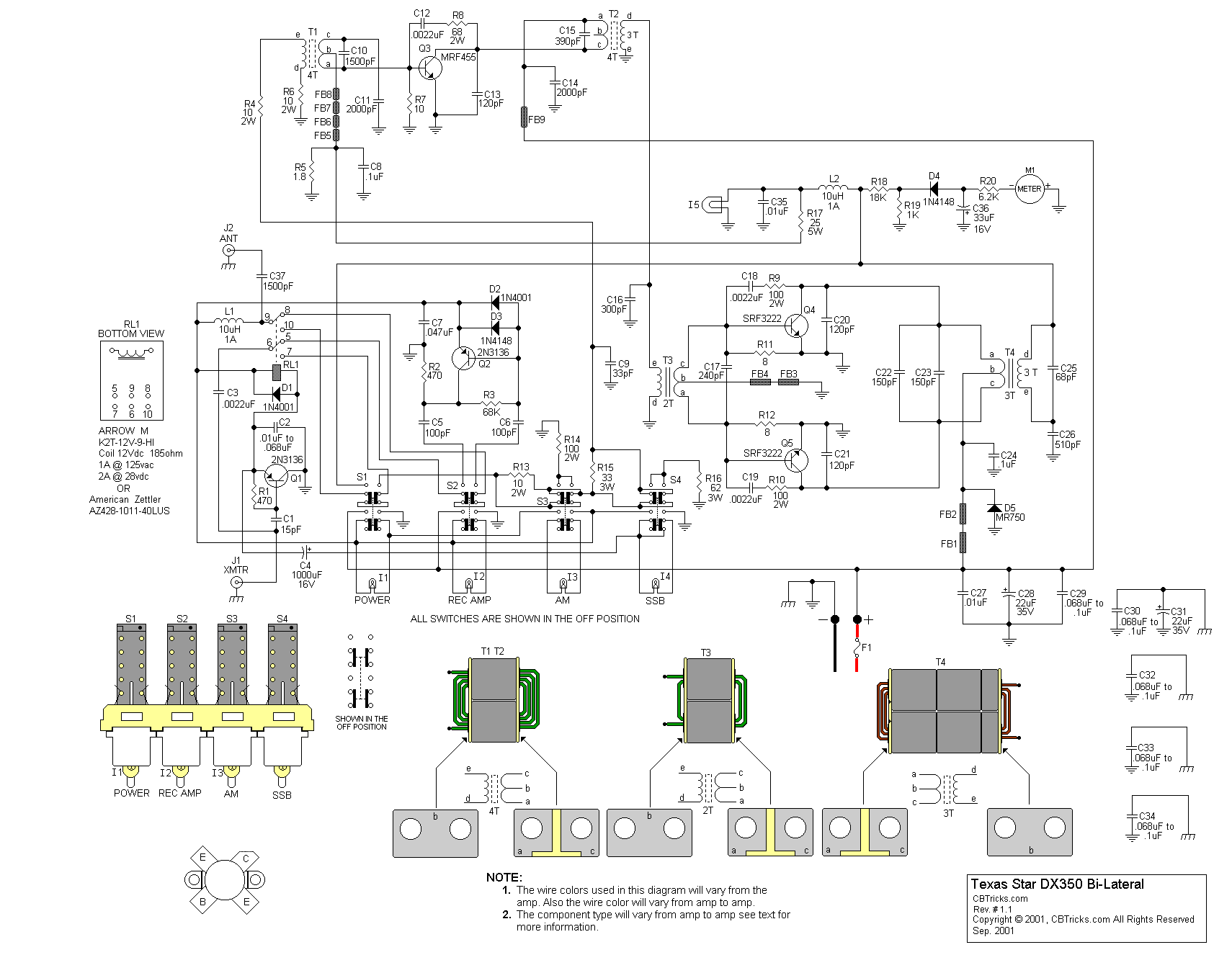

    DX 350 Bi-Lateral Schematic Diagram (8.5x11)
     DX 350 Bi-Lateral Schematic Diagram
Layouts and Parts

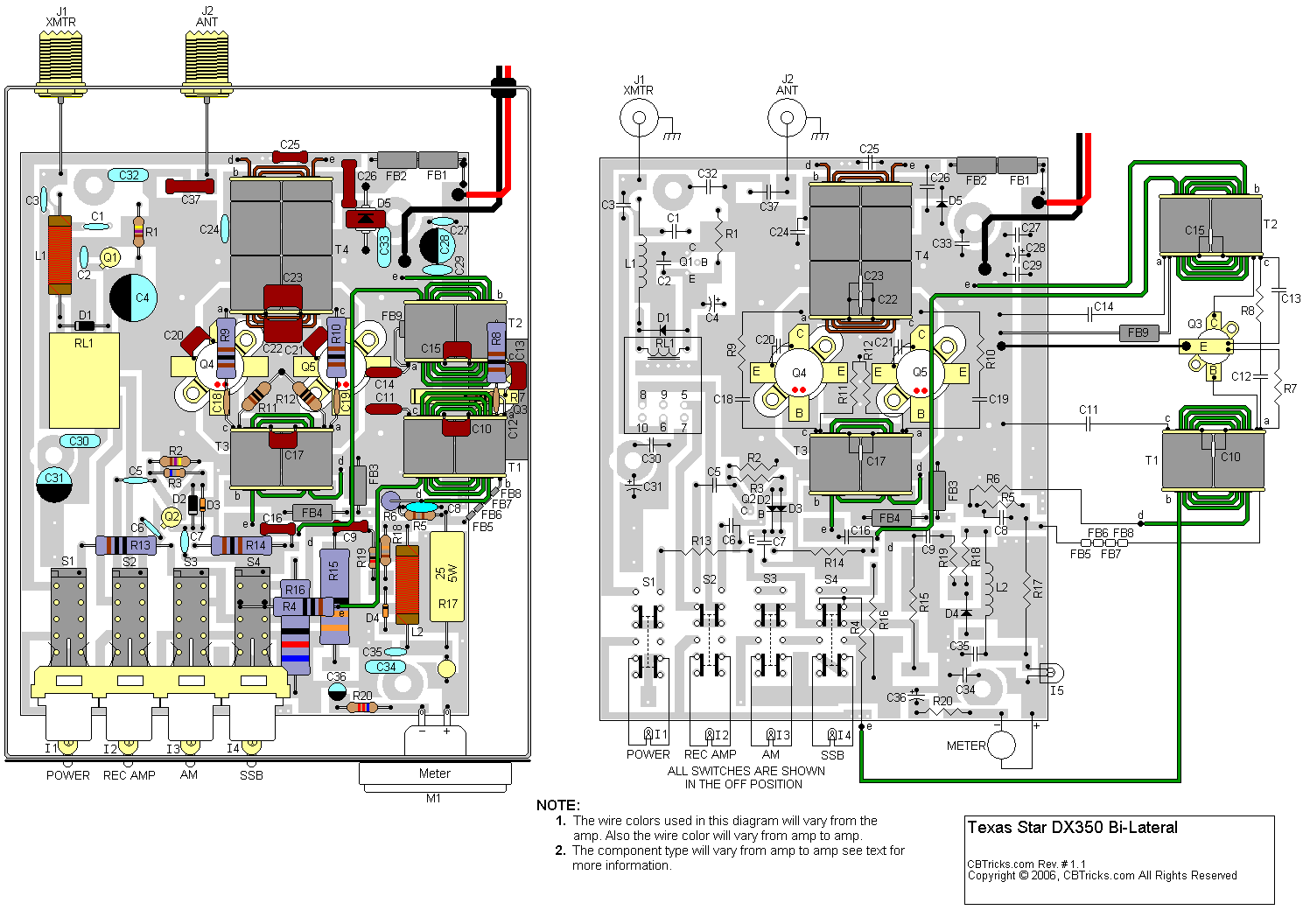

     DX 350 Bi-Lateral PCB Layouts (8.5x11) paper size

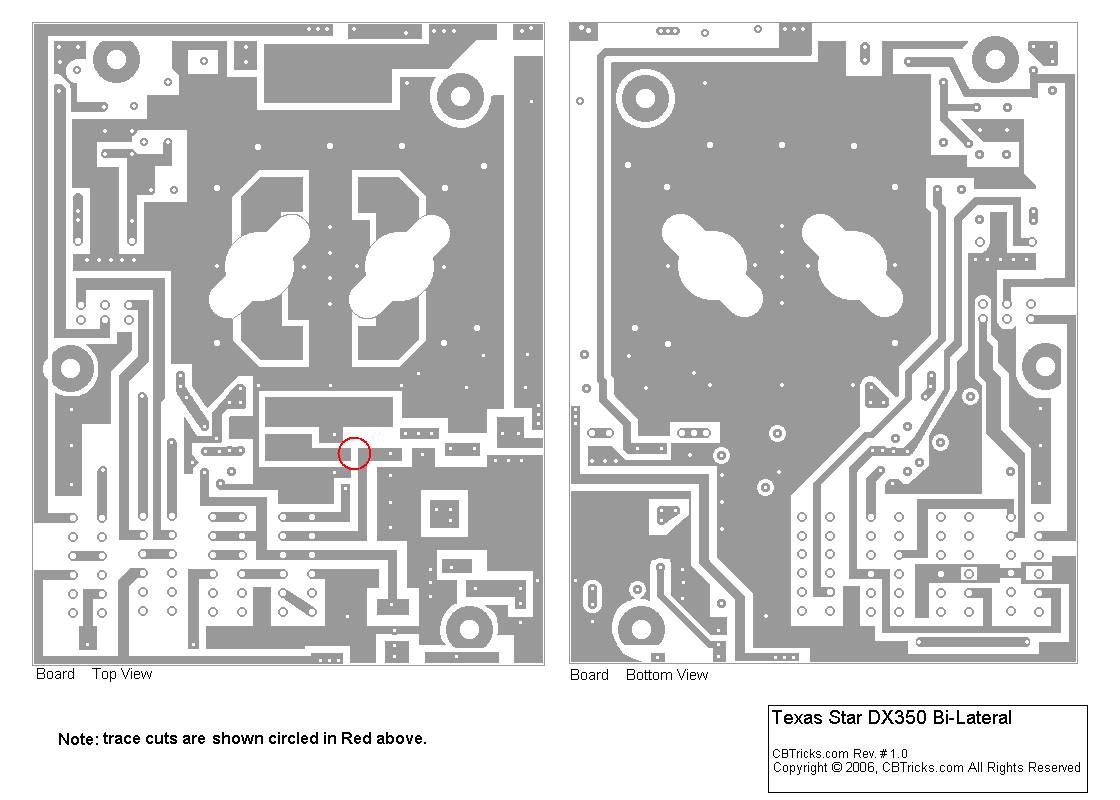

     PCB Trace Layouts (Board F) (8.5x11) paper size

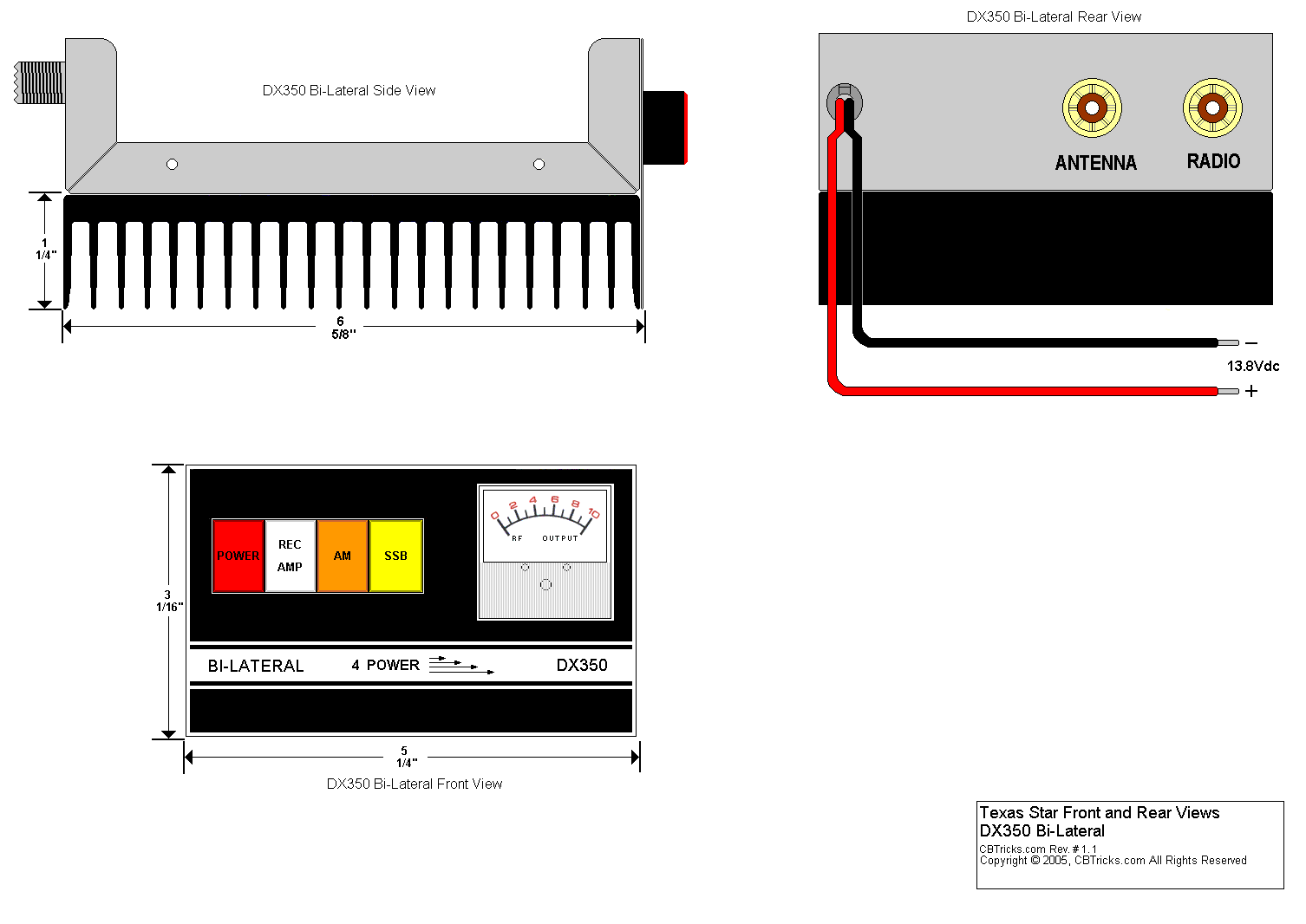

     DX 350 Bi-Lateral Cabinet View


     DX 350 Bi-Lateral Parts List
     Component Datasheet Section


     DX 350 Bi-Lateral PCB Layouts
     PCB Trace Layouts (Board F)
     DX 350 Bi-Lateral Cabinet View
