Section 2
INSTALLATION #3

Cobra 2000 GTL

The Cobra 2000 GTL installation is identical to Installation #2 except for the following:

1. Add a 2000uf 16V capacitor between power supply ground and radio ground.
Observe polarity! See Fig. 6.

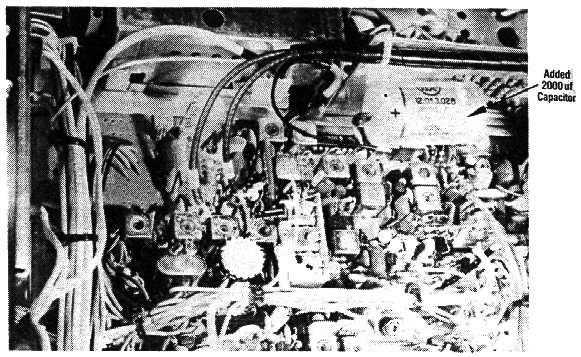

Fig. 6 - Cobra 2000 GTL with modified ground loop.

This capacitor is needed because the 2000 GTL switches the ground of the radio for power control. The added capacitor allows the radio to get a better ground from the power supply.

This completes the installation procedure. Before operation, the DS-400 must be programmed and the radio must be realigned. Turn to the programming section and proceed.
