Click Picture To See Close-up

MSRP is 450$ + shipping for the radio,box and remotomaul software

Block Diagram

Company Web-site
www.motormouthmaul.com

Company contact info E-Mail is
[email protected]
[email protected]
Phone number is 1-805-934-3355

Company Description About The Mauldulator

The Mauldulator does many things.

It allows the user to have a blank canvas for audio frequency response, and the ability to create 200% positive peak modulation and maintain 100% negative peak modulation. Coupled with the users own Audio processing, and limiting gear, the signature sound that the user creates is entirely up to the user with NO limitations on behalf of the transmitter. Just as Picasso is able to create a masterpiece on a piece of canvas, the very same peiece of canvas in placed in front of a three year old may proove to look quite different.

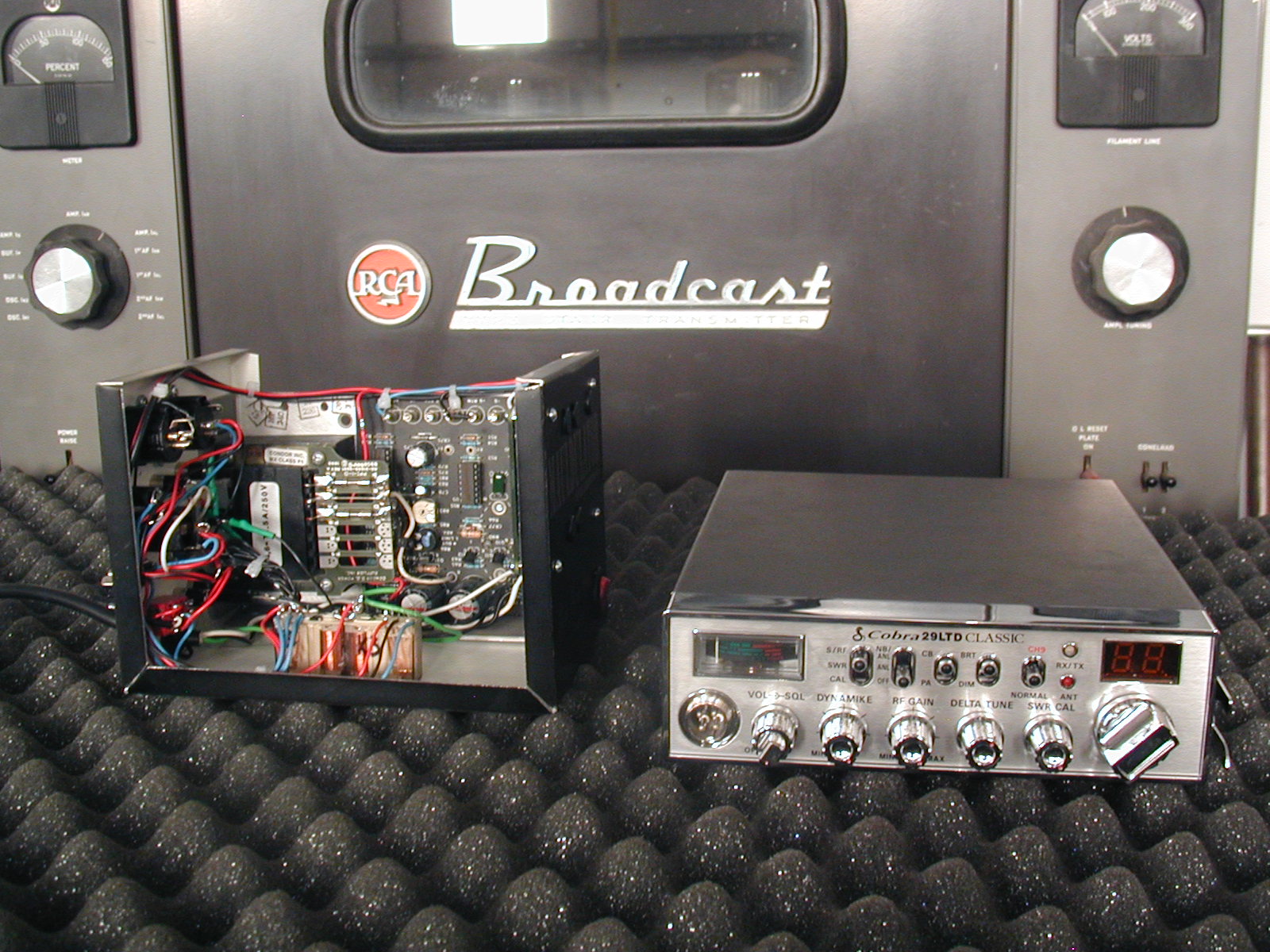

The Mauldulator comes with a new modified Cobra 29 LTD. Of which the receive circuit has been opened up to allow the user to experience HI FI audio, while maintaining the stock IF filter to keep the adjacent channel rejection to spec.

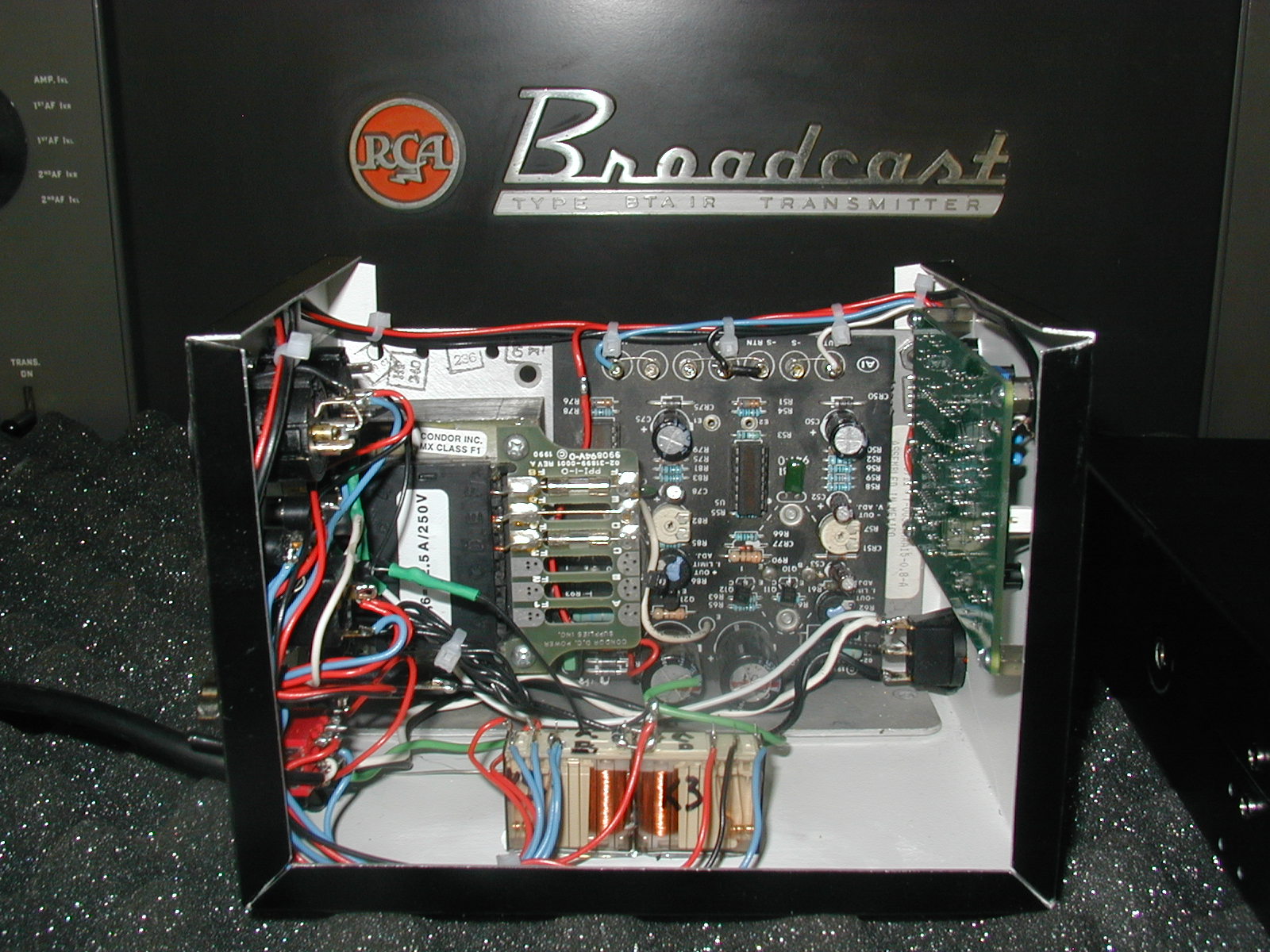

Only the RF Final and Driver stages are used in transmit, and the Mauldulator Board takes over every aspect of the modulation and carrier control.

Due to CB wives tales and other ways that Power, referred to as Watts gets goofed up, our Mauldulator is rated differently
We specify that the radio will dead key 3/4 Watt in to 50 Ohms. We specify that it can make positive peak modulation of 200%.
Peak watts are a relatively useless term unless those Watts are measured in to 50 Ohms, AND the carrier is modulated by a true Sine Wave.

The Mauldulator can produce just a Sine Wave, but it really shines on Asymmetrical Modulation. This is what broadcasters do.
CB wive tales speak of " Swing " It is beyond the scope of this description to discuss this. Suffice it to say that True Asymmetrical Modulation is LOUDER than the same looking signal on a scope created withe Swing Mod. This is due to the actual power in the Sidebands. Study Amplitude Modulation.

The user will have to LINEARLY amplify this signal to their desired or legal operating level.
Notice that I did not say use a linear amplifier. THERE IS A DIFFERENCE.

In addition to the above, The Mauldulator comes with Remotomaul. Remotomaul allows the user to set the radio up, and remotely control PTT and send and receive HI FI audio from anywhere on the Internet. You can be on vacation 1000 miles away, and sound like you are at your station. In the future, this Remotomaul will include a remote S-meter, as well as remote channel and squelch control for a adtional cost.

Finally, the Mauldulator has the audio connections to make great recordings, or " Watergates " and has a local receiver audio input that the user can pipe the audio from a local receiver into to get their audio on the recording off air instead of off the mixer or preamp. This input only works in Local mode ( when the user would be recording ) not in Remote mode when using the station from another location. The recorded audio can then be played back over the air if the
Remote/Local switch is momentarily placed in Remote mode.

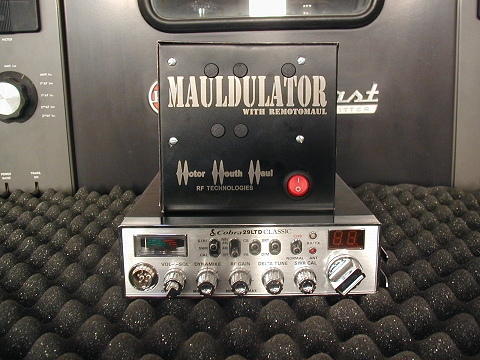

This is an overview of what the Mauldulator has to offer.

Here is some more pictures.

Click Picture To See Close-up

Click Picture To See Close-up
