Texas Star DX 65 (Early Version)
Documentation Project
CBTricks.com

Picture Tour

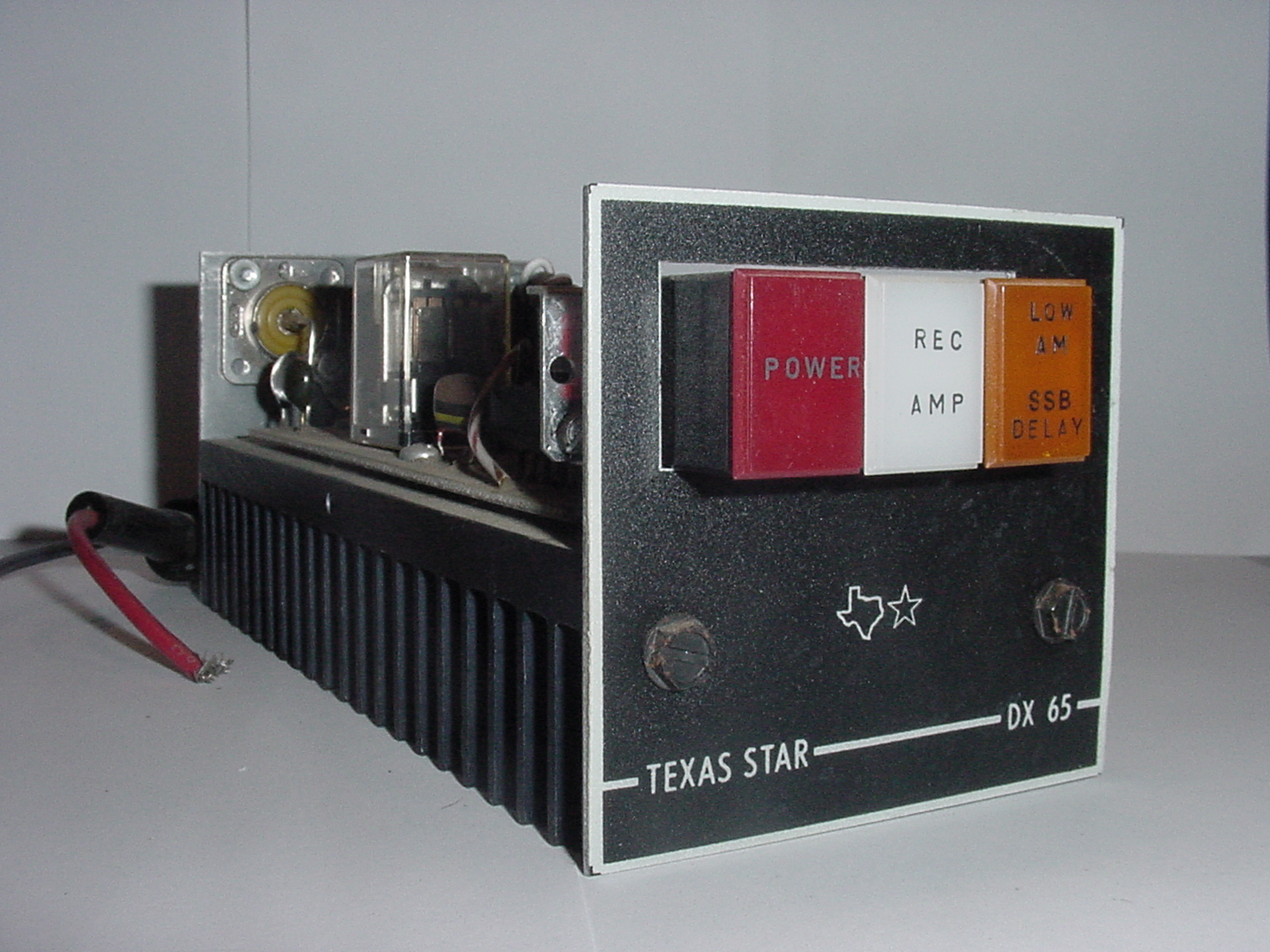

DX 65

Click Picture to See Close-up

Please Note:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing and using this information.

See section notes for more infomation.

DIAGRAMS

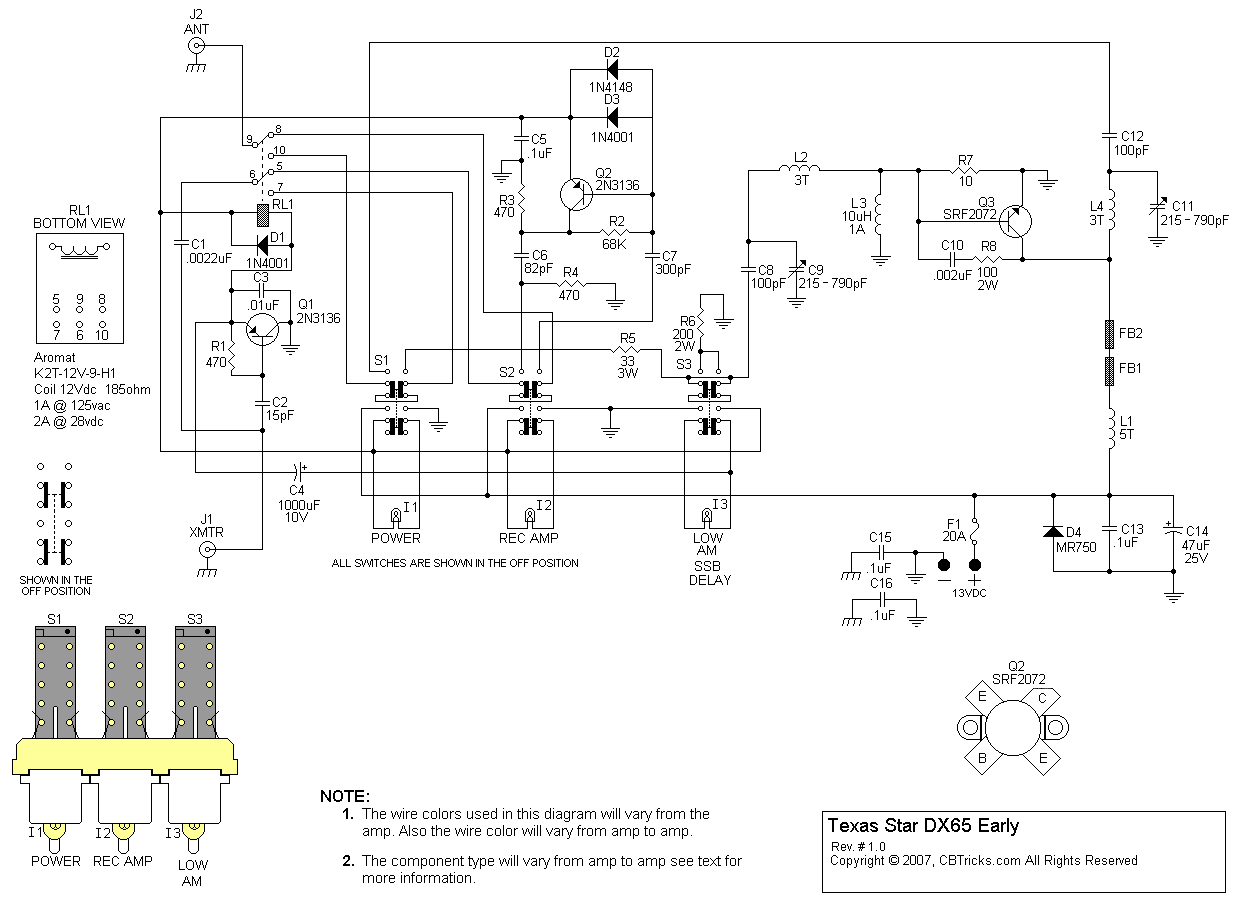

    Schematic Diagram
    Schematic Diagram
PCB Layouts and Parts

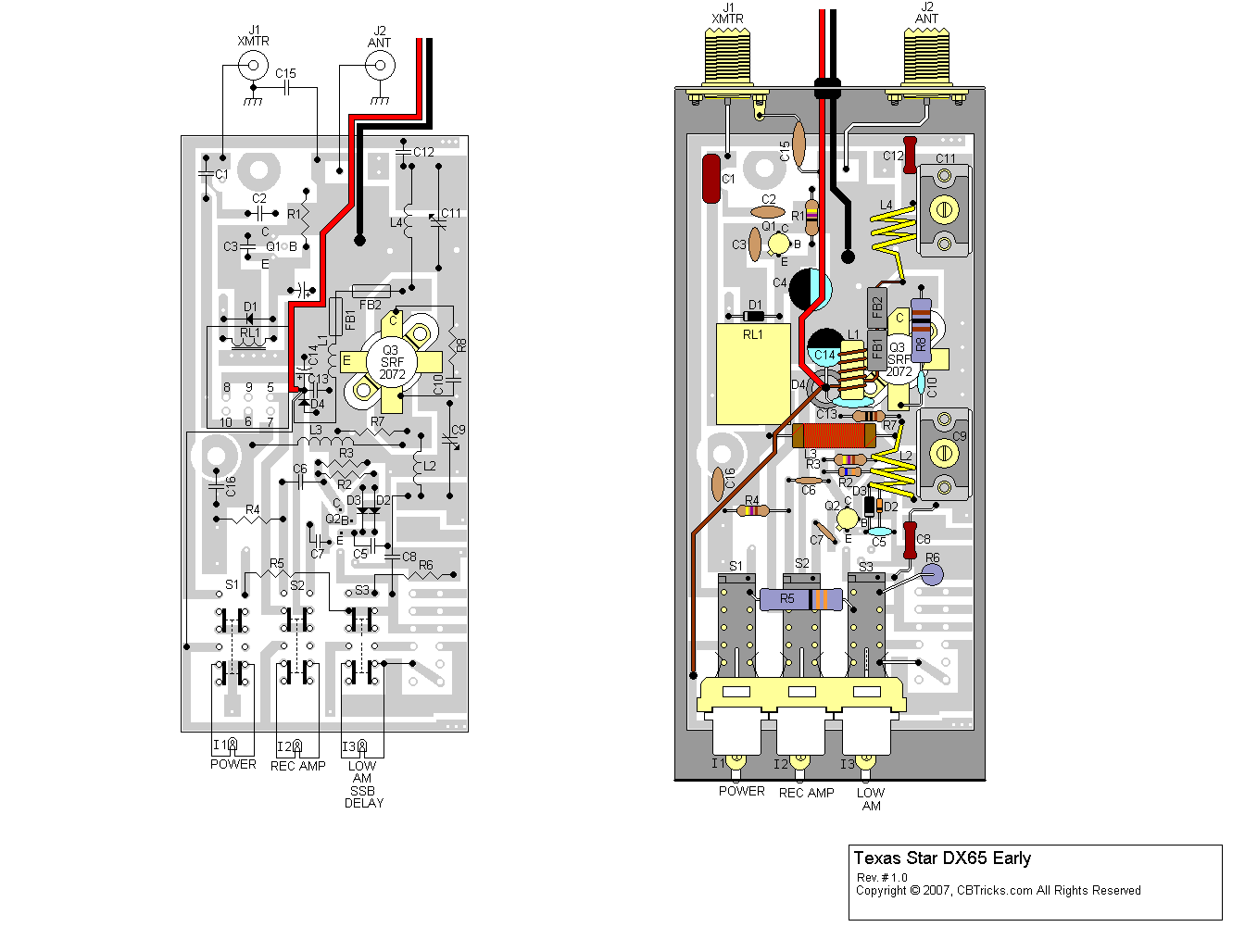

     PCB Layout

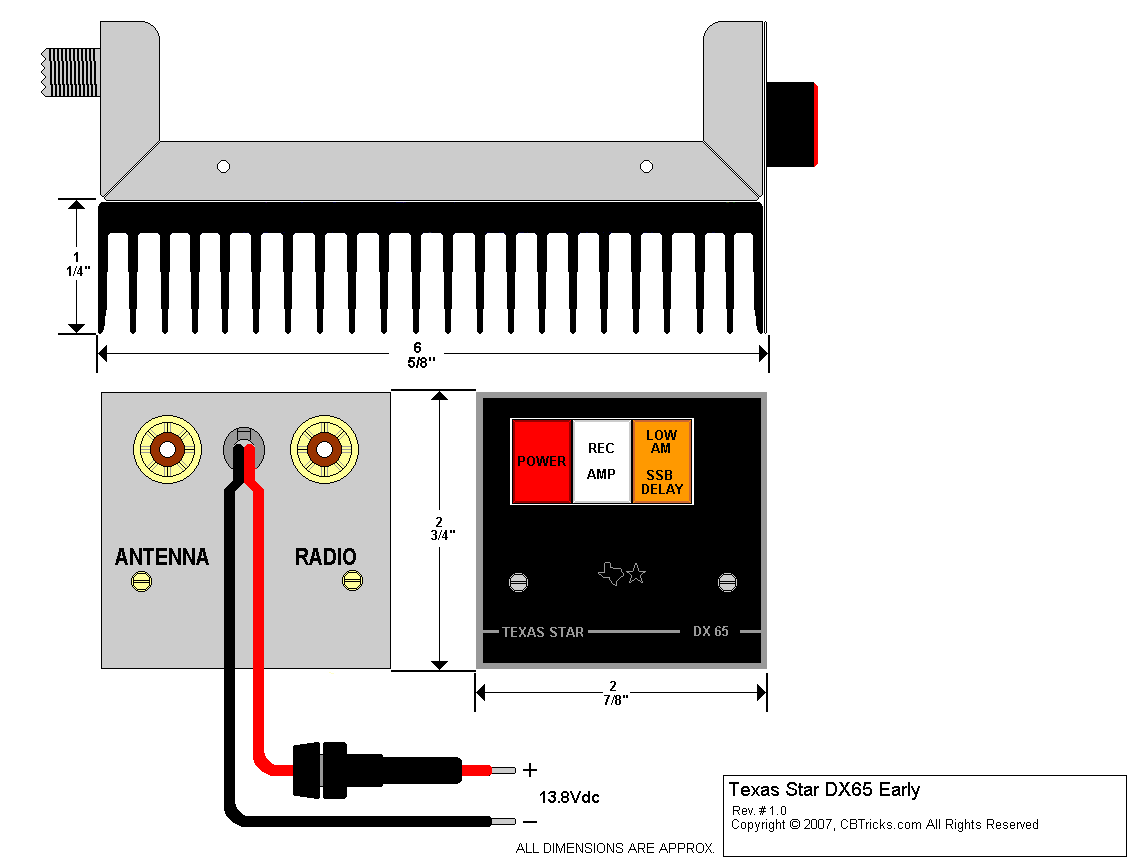

     DX 65 Cabinet View (8.5x11)

     Component Datasheet Section
     PCB Layout
     DX 65 Cabinet View
