Texas Star DX 299
Documentation Project
CBTricks.com

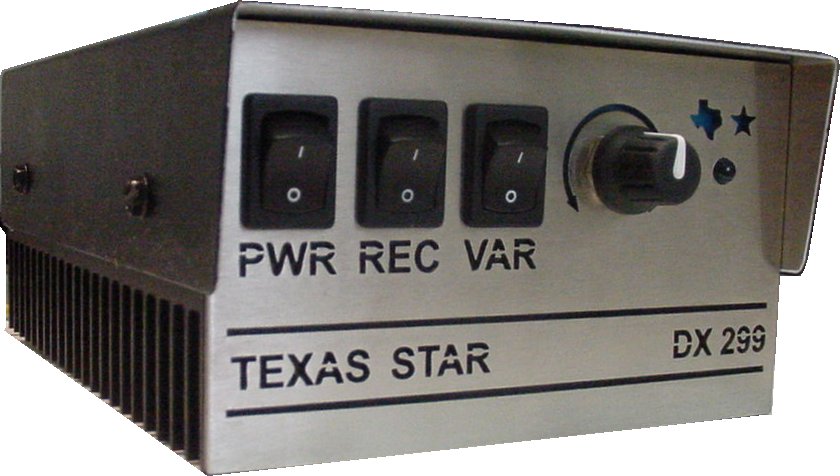

DX 299

Click to see full size

Please Note:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing and using this information.

See section notes for more infomation.

MODIFICATIONS
    CW Transmitter To AMP Conversion
DIAGRAMS

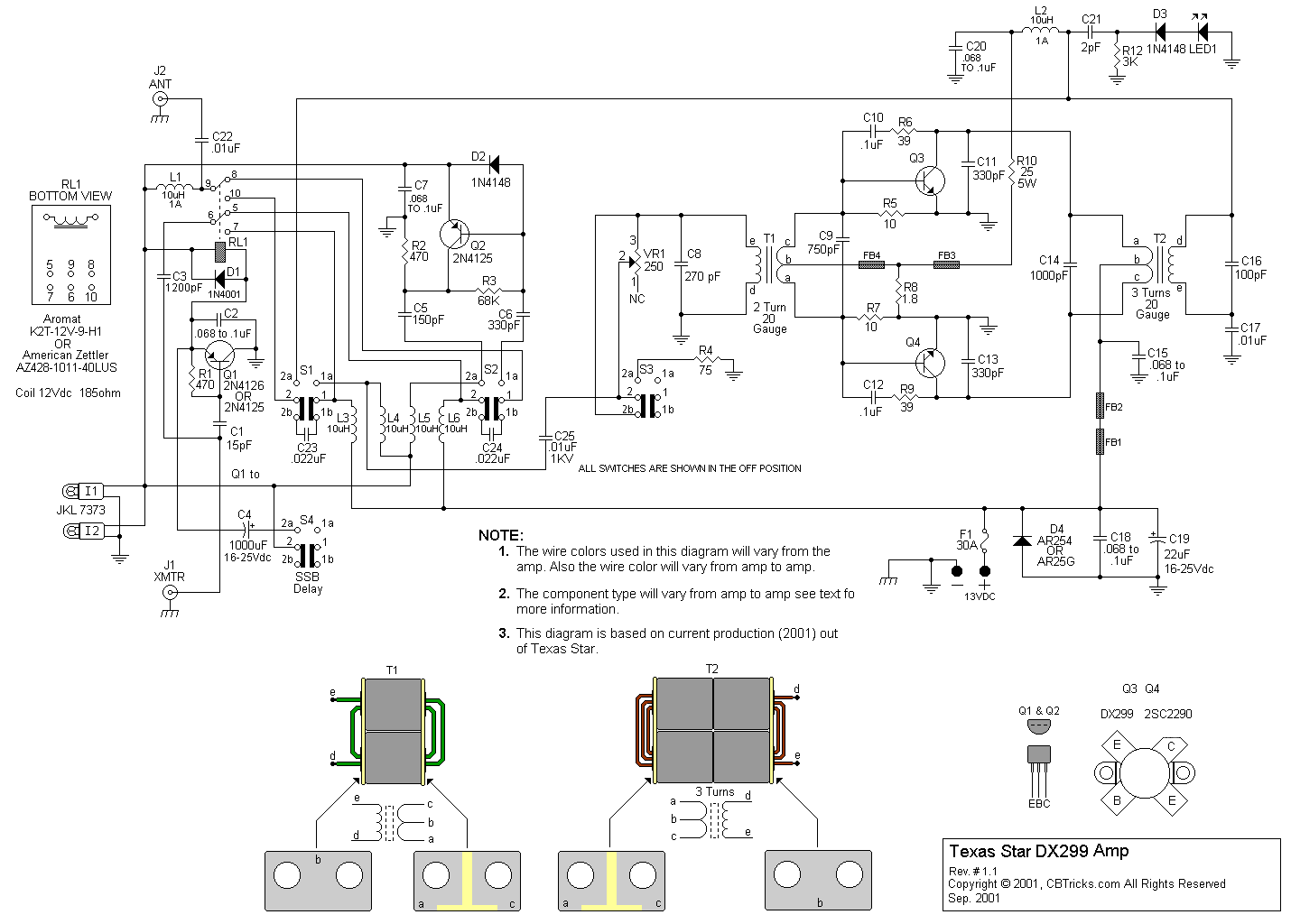

    DX 299 Schematic Diagram (8.5x11) paper size
 DX 299 Schematic Diagram
PCB Layouts and Parts

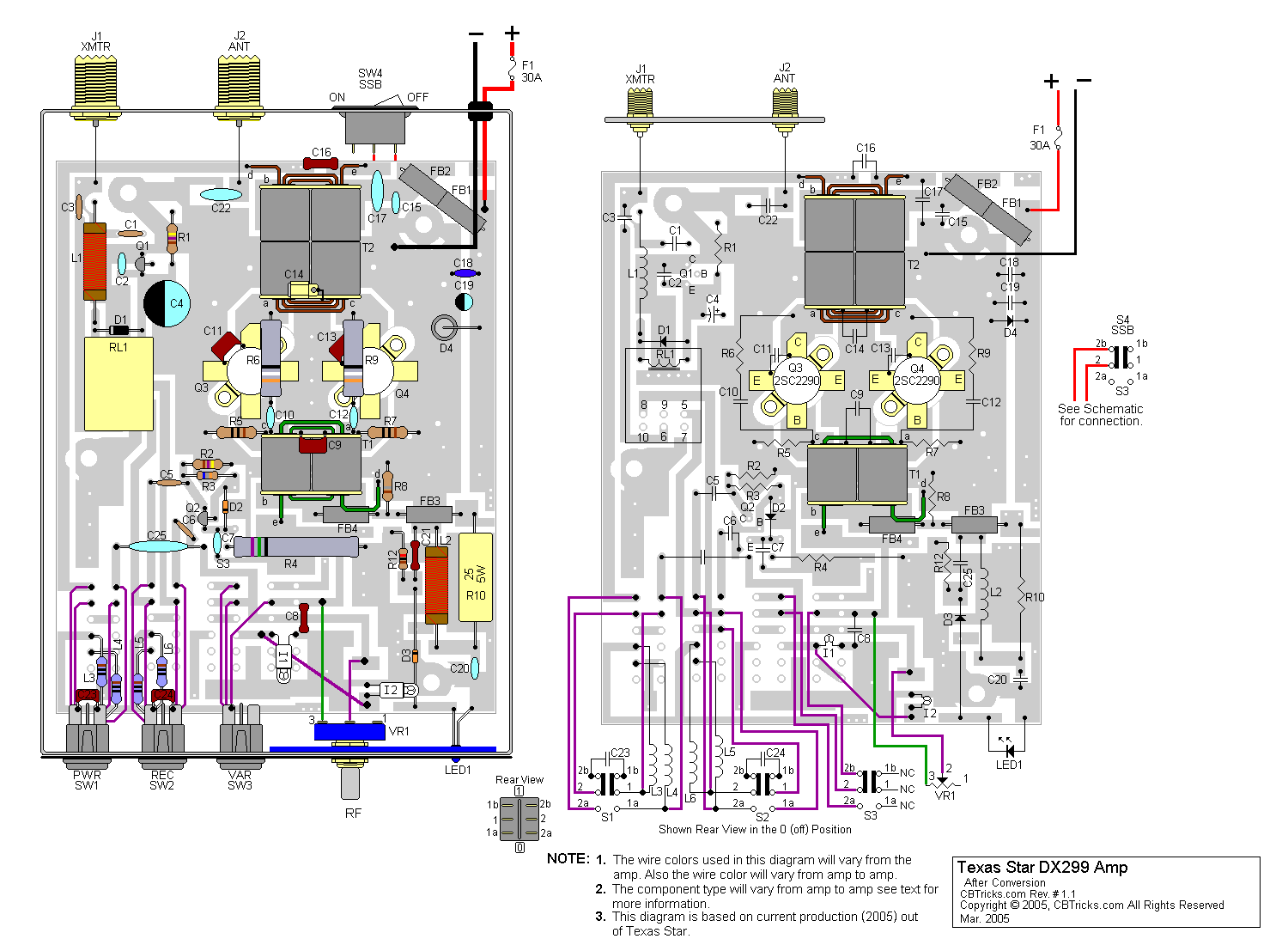

    DX 299 PCB Layouts / Inter-Connection Diagram (8.5x11) paper size
     PCB Trace Layouts (Board A) (8.5x11) paper size

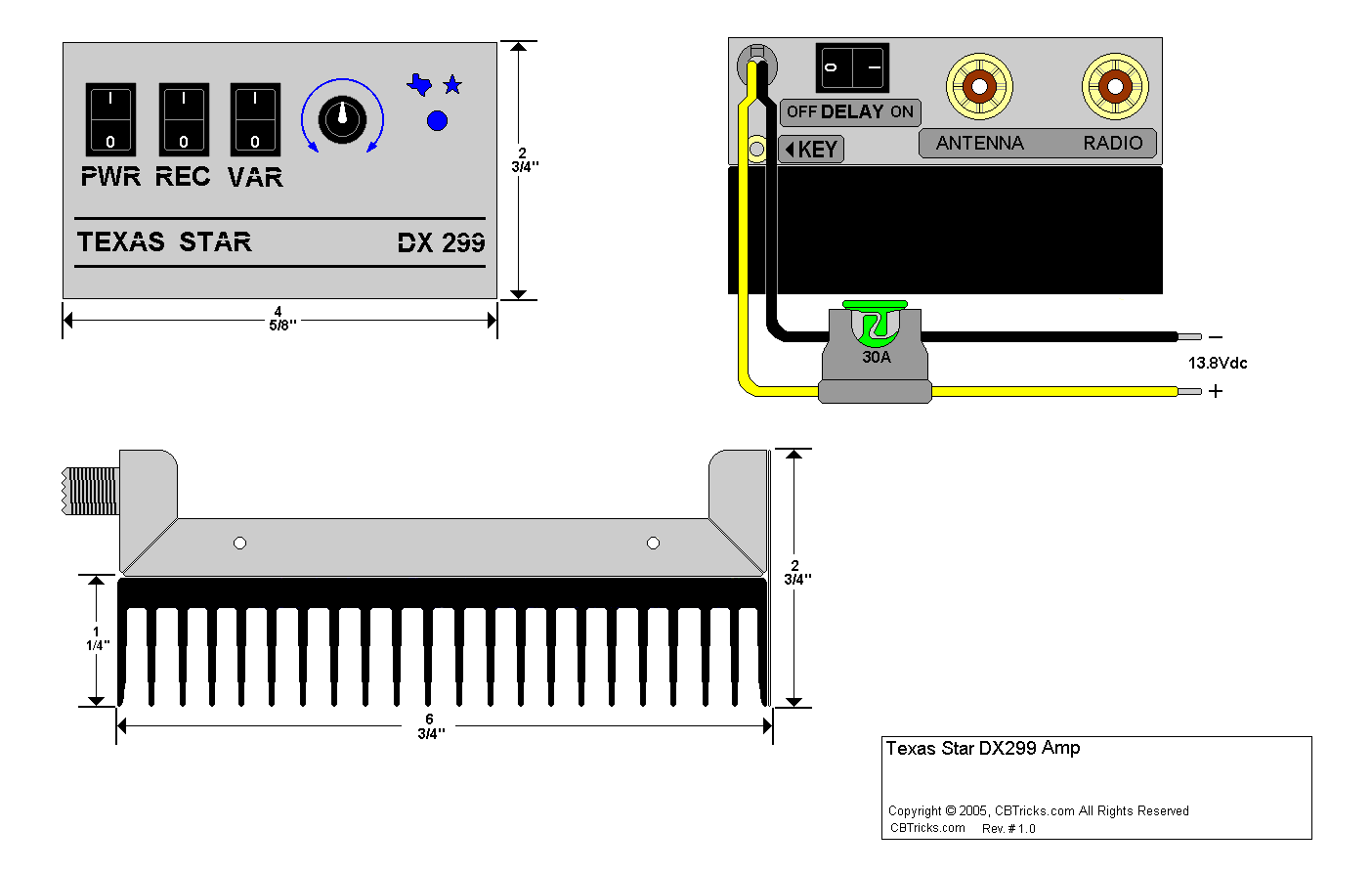

     DX 299 Cabinet Views (8.5x11) paper size


     DX 299 Parts List
     Component Datasheet Section


     DX 299 PCB Layouts / Inter-Connection Diagram
     PCB Trace Layouts (Board A)
     DX299 Cabinet Views
