Texas Star Amarillo
Documentation Project
CBTricks.com


Picture Tour of The Amarillo

Amarillo

Click to see full size

Please Note:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing and using this information.

See section notes for more infomation.

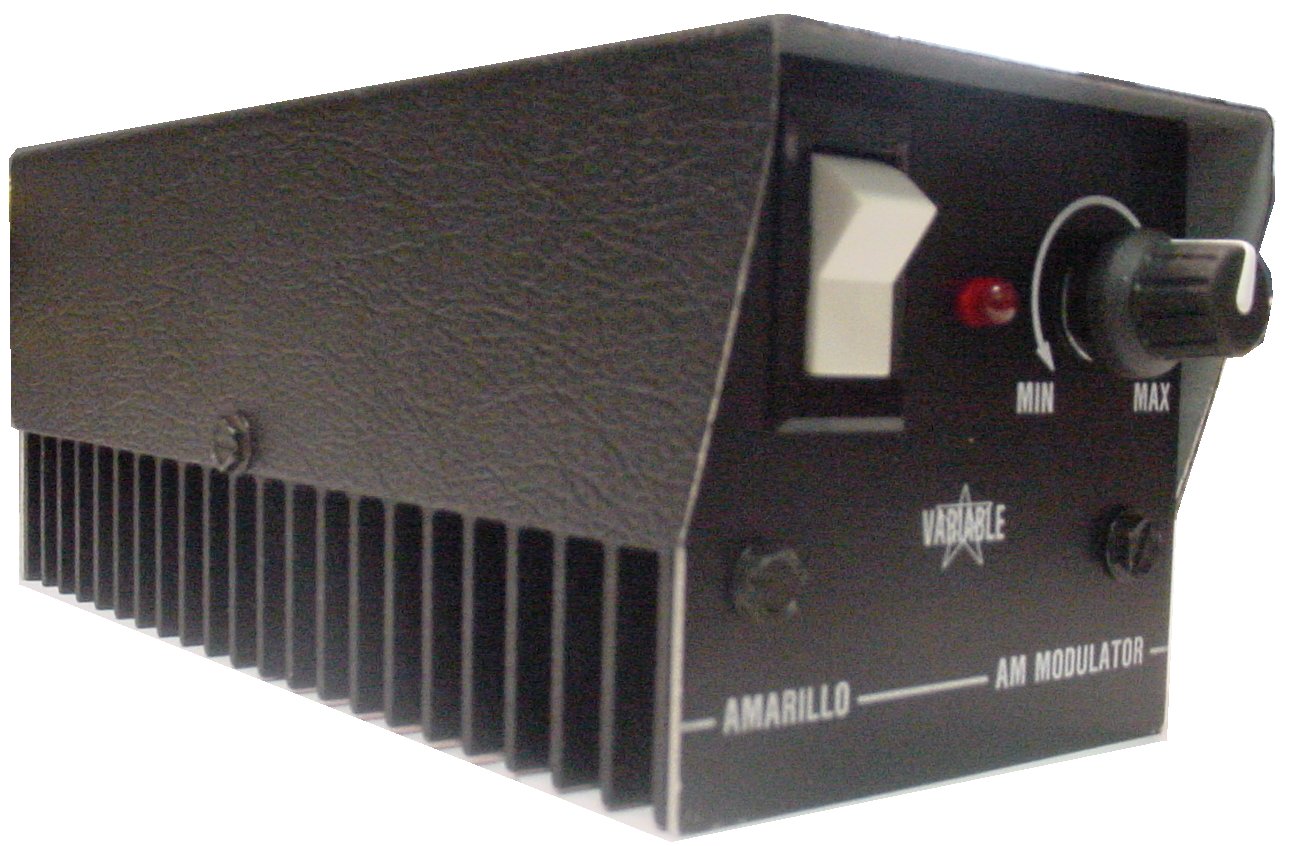

Picture of inside of amp
DIAGRAMS

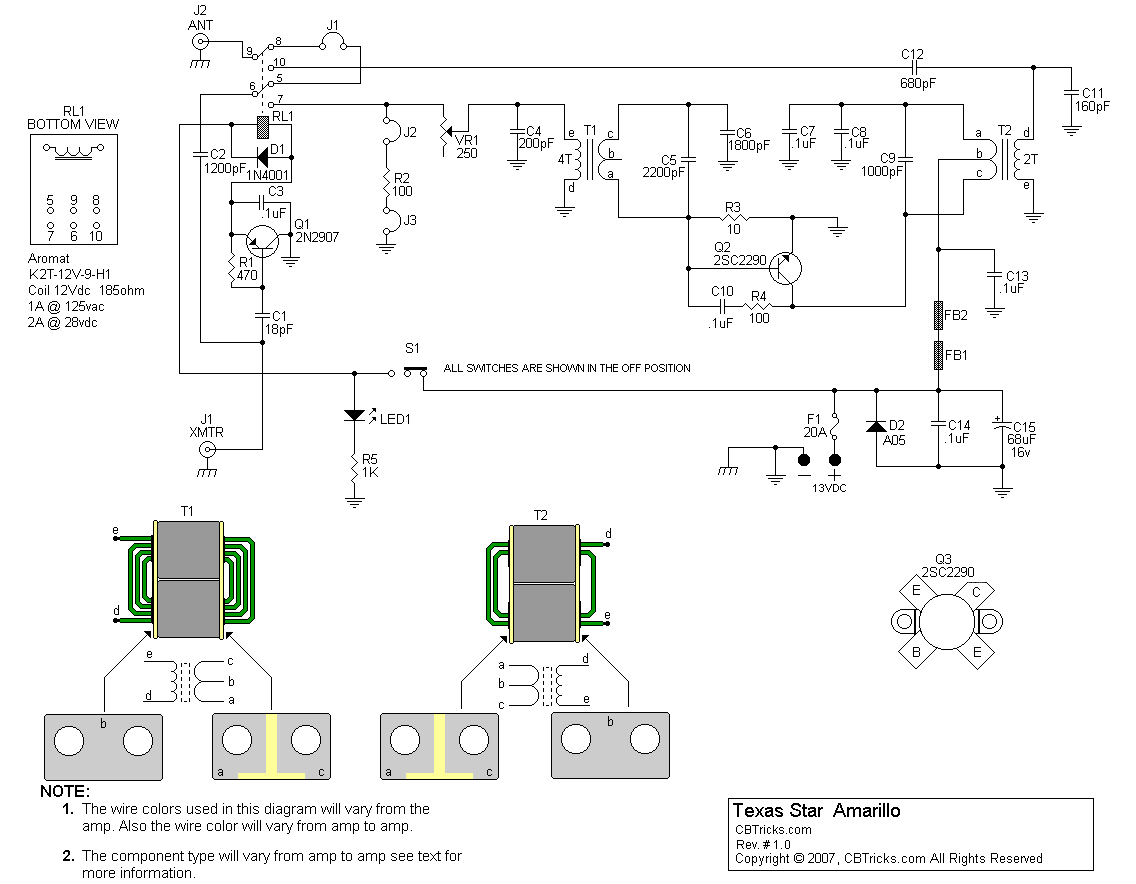

    Schematic Diagram
    Schematic Diagram
Layouts and Parts

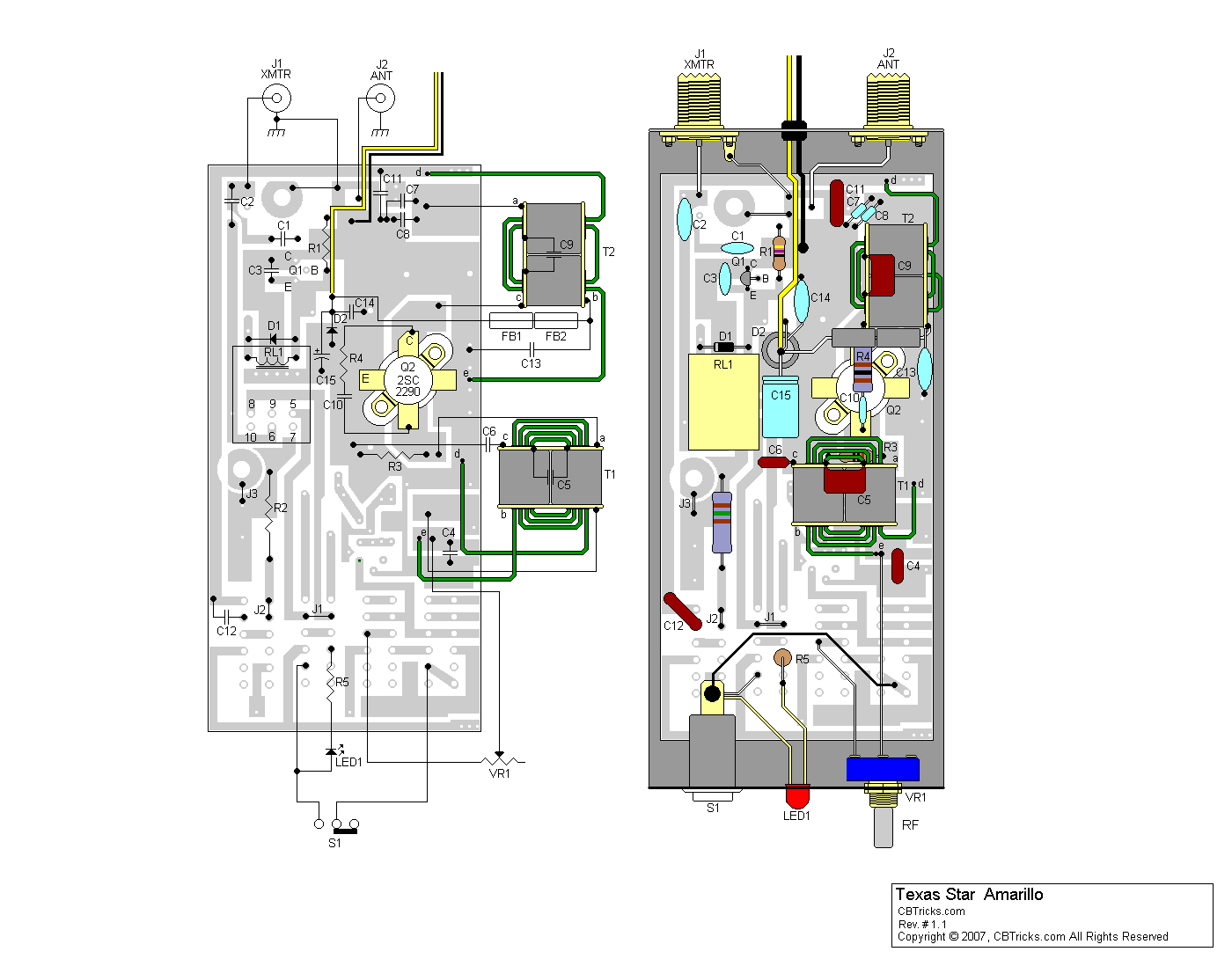

     PCB Layout

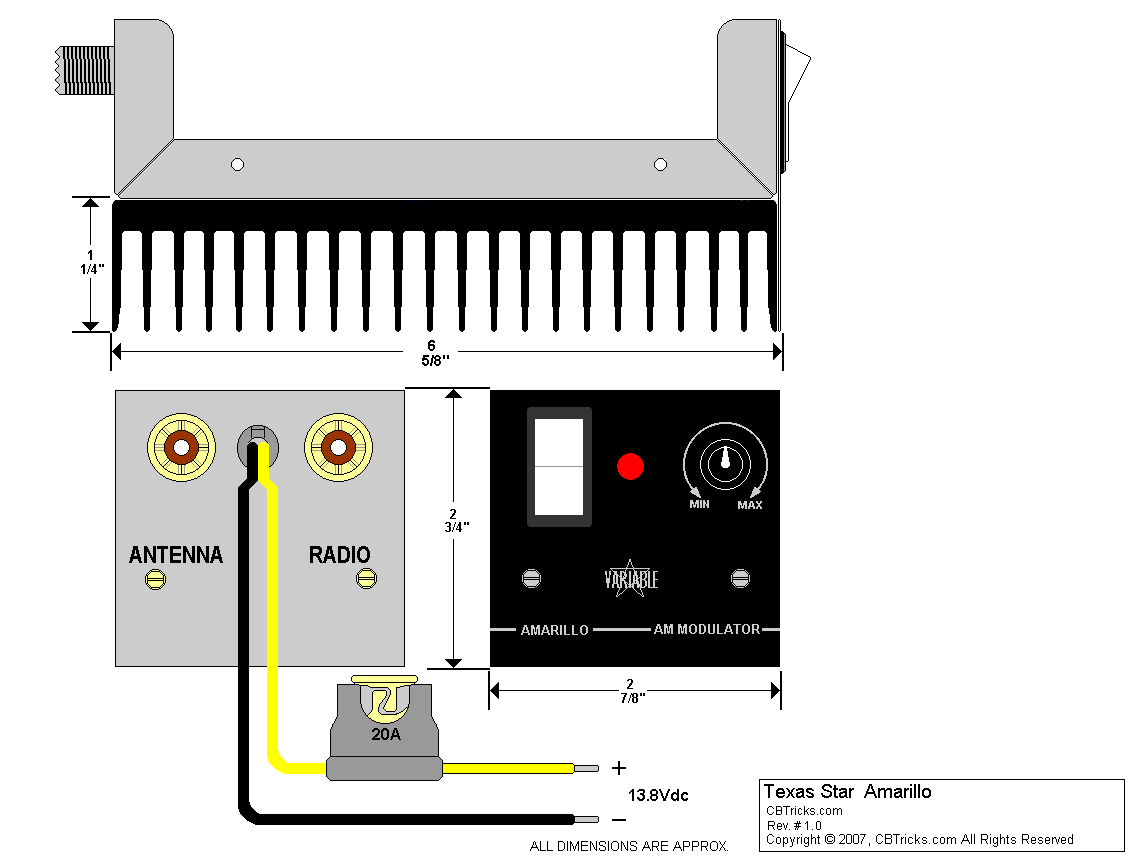

     Amarillo Cabinet View (8.5x11)
     Parts List
     Component Datasheet Section


     PCB Layout
     Amarillo Cabinet View
