Manuals
      Owners / Service Manual (Updated CBTricks Version)
      Cover Page
      Index

      Owners Manual (Scan of the Factory Manual)  (10meg)

DIAGRAMS (Updated CBTricks Version)

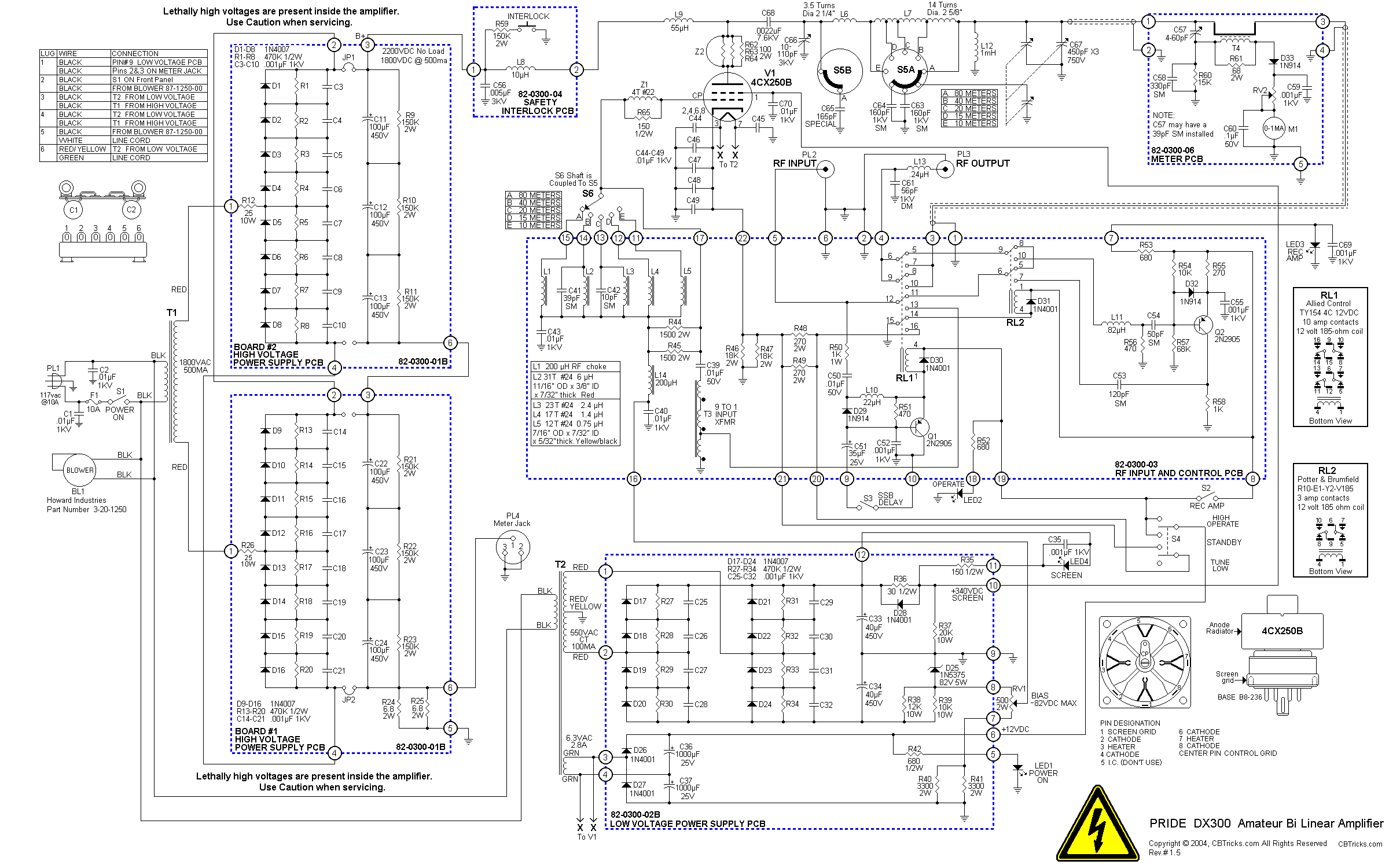

      Main Schematic Diagram
      Main Schematic Diagram
      RF Section Diagram
      RF Section Diagram

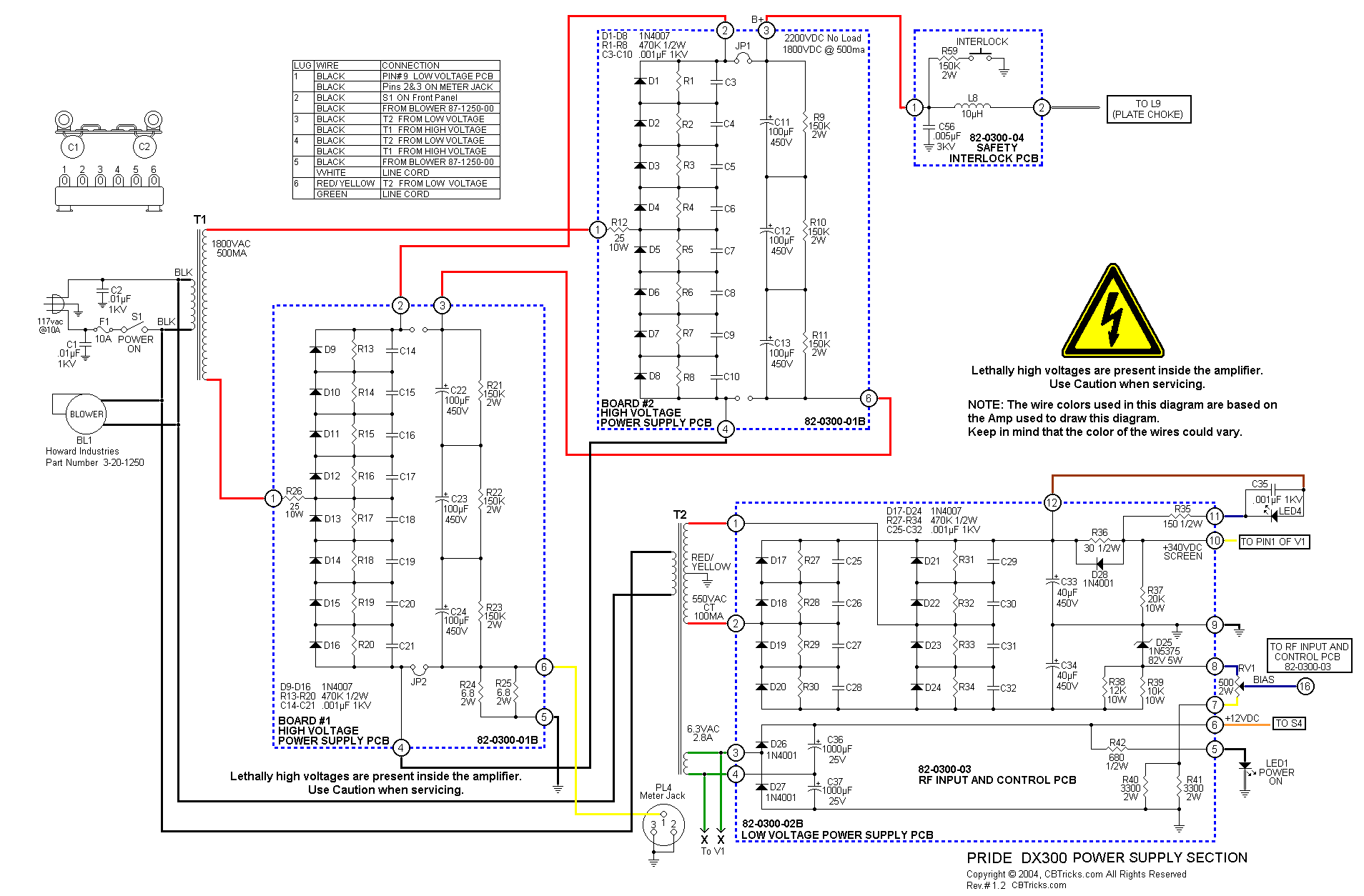

      Power Supply Diagram
      Power Supply Diagram

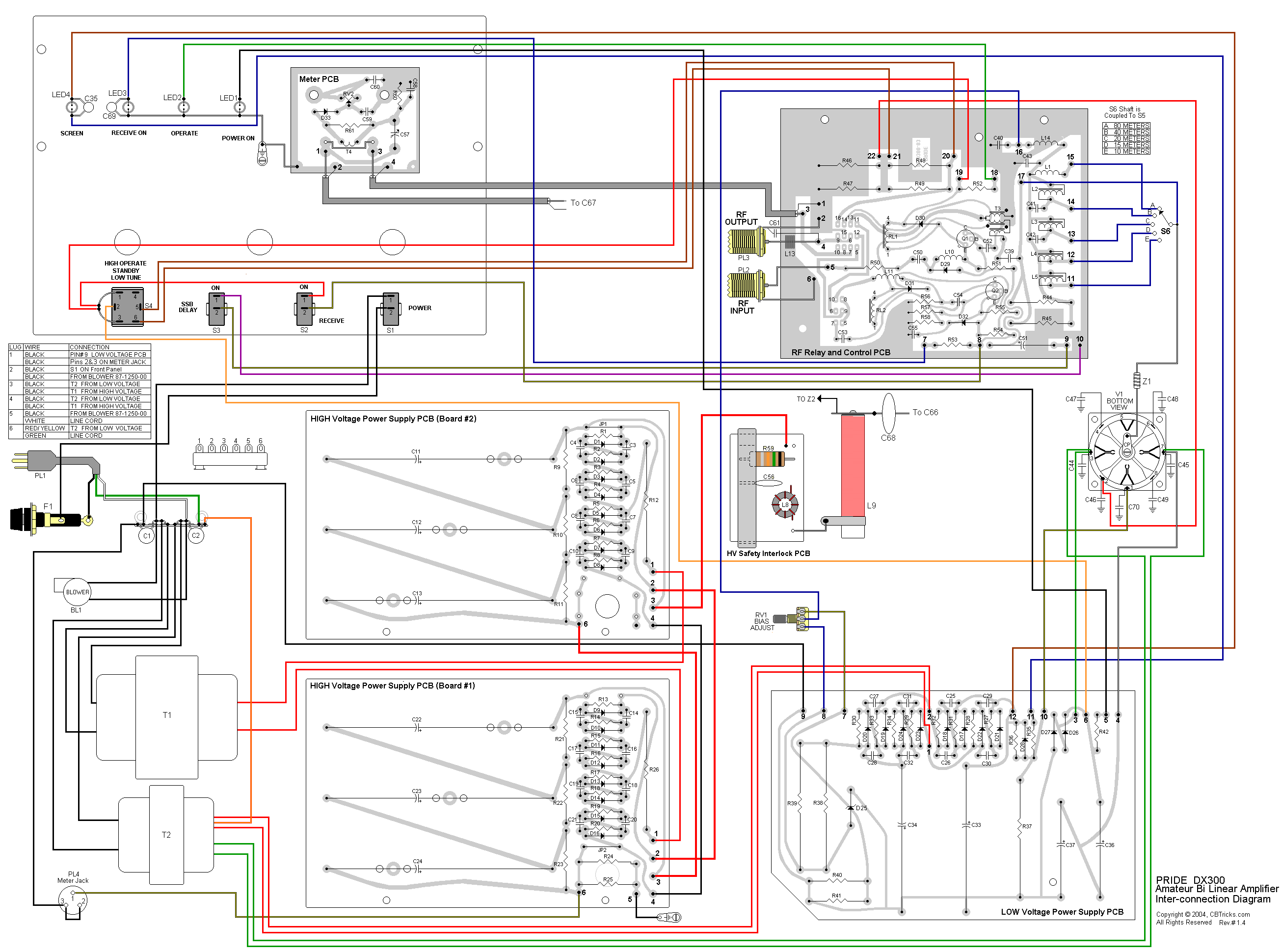

      Chassis Wiring Diagram
      Chassis Wiring Diagram

Nomad Radio High Voltage Power Supply PCB assembly Info

NOTE: CBTricks does not sell the Nomad Radio High Voltage Power Supply PCB. To get the latest info and to buy one go to Nomad Radio's web site here http://www.nomadradio.com/
