DIAGRAMS

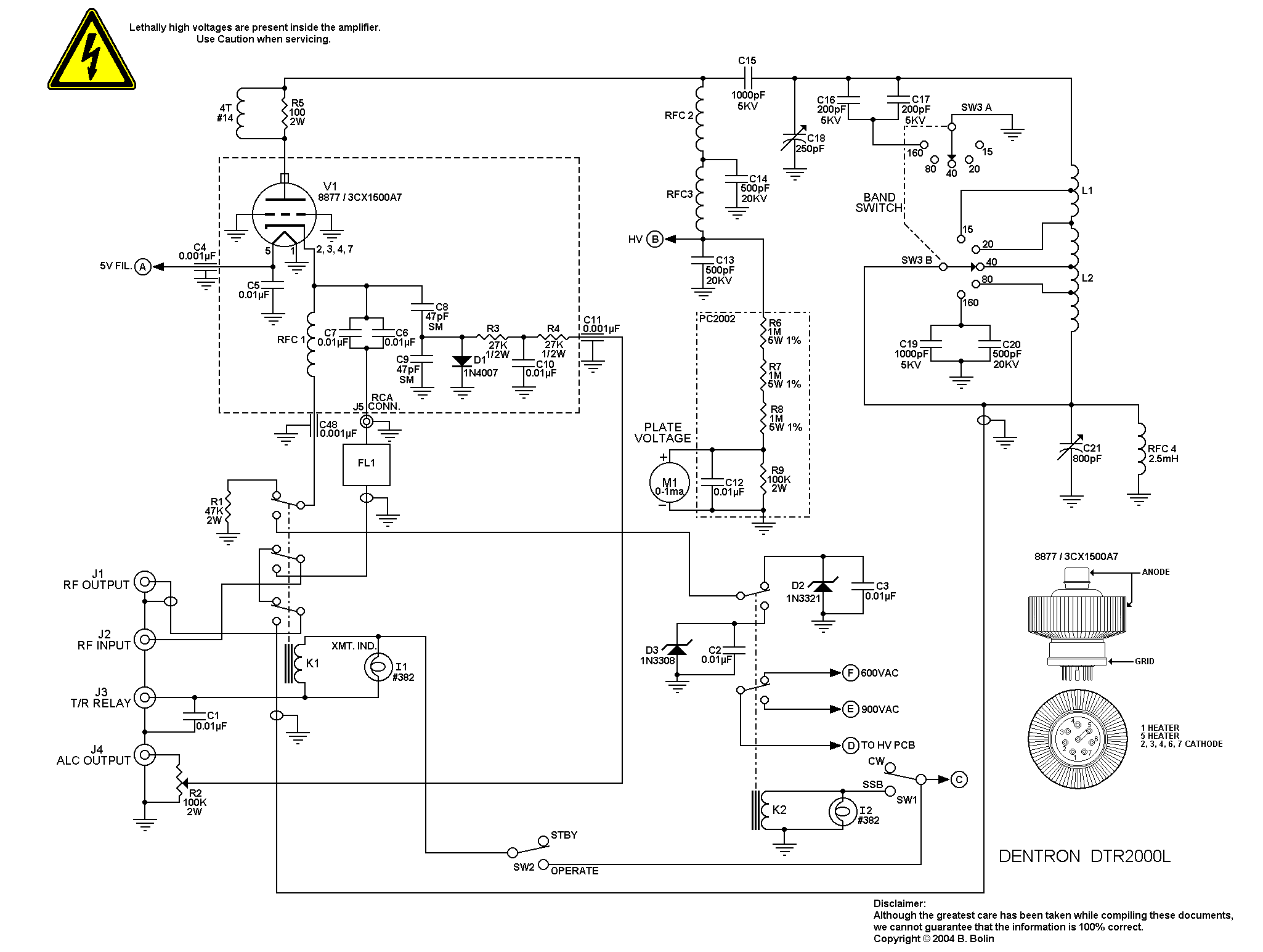

    Schematic Diagram RF Deck
    Schematic Diagram RF Deck

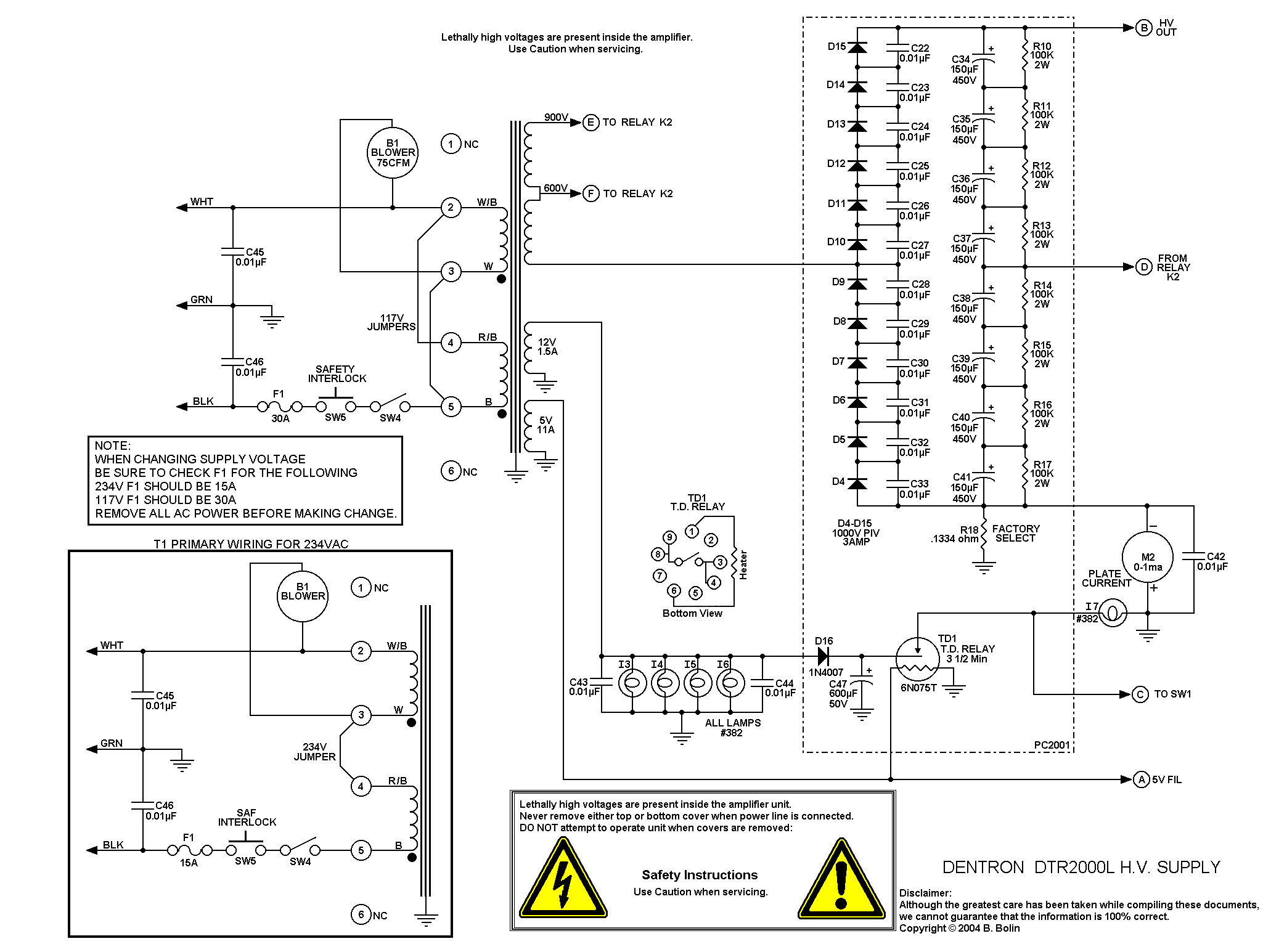

    Schematic Diagram Power Supply
    Schematic Diagram Power Supply
