Uniden
PRO710E (UT-316)
Documentation Project
CBTricks.com

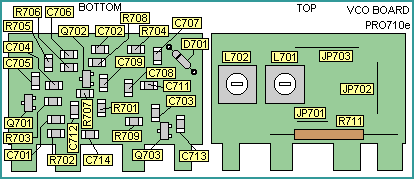

VCO PCB Layout
| C701 | 39PF /SL | R704 | 10K |
| C702 | 0.01UF /Y | R705 | 39K |
| C703 | 0.01UF /Y | R706 | 100 |
| C704 | 0.01UF /Y | R707 | 15K |
| C705 | 39PF /SL | R708 | 330 |
| C706 | 15PF /CH | R709 | 56K |
| C707 | 47PF /SL | R711 | 1K |
| C708 | 100PF /B | ||
| C709 | 330PF /B | D701 | 1SV73EB |
| C711 | 39PF /SL | ||
| C712 | 68PF /SL | Q701 | 2SC2814F5 |
| C713 | 0.01UF /Y | Q702 | 2SC2814F5 |
| C714 | 0.01UF /Y | Q703 | 2SC2814F5 |
| R701 | 33K | L701 | LB537 |
| R702 | 100 | L702 | LB537 |
| R703 | 390 |
