Uniden
PRO710E (UT-316)
Documentation Project
CBTricks.com

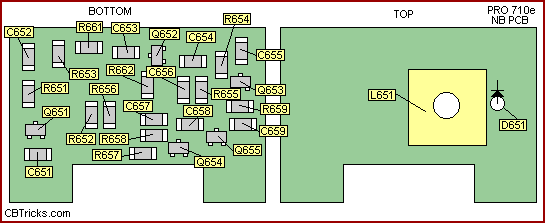

NB PCB
| R651 | 220K | C655 | 220PF /B |
| R652 | 2.2K | C656 | 0.01UF /Y |
| R653 | 2.2K | C657 | 680PF /B |
| R654 | 2.2M | C658 | 0.01UF /Y |
| R655 | 10K | C659 | 0.01UF /Y |
| R656 | 1K | ||
| R657 | 68K | Q651 | 2SC2814F5 |
| R658 | 47K | Q652 | 2SC2814F5 |
| R659 | 100K | Q653 | 2SC2812L5 |
| R661 | RZ025 | Q654 | 2SA1179M6 |
| R662 | RZ025 | Q655 | 2SC2812L5 |
| C651 | 15PF /CH | D651 | IN60AM |
| C652 | 0.01UF /Y | ||
| C653 | 0.01UF /Y | L651 | LA181 |
| C654 | 220PF /B |
