Uniden PRO710E (UT-316)
Documentation Project
CBTricks.com

Integrated Circuits Internal Diagrams



HA71808W
Voltage Regulator



M5223
Squelch and AGC Amplifier

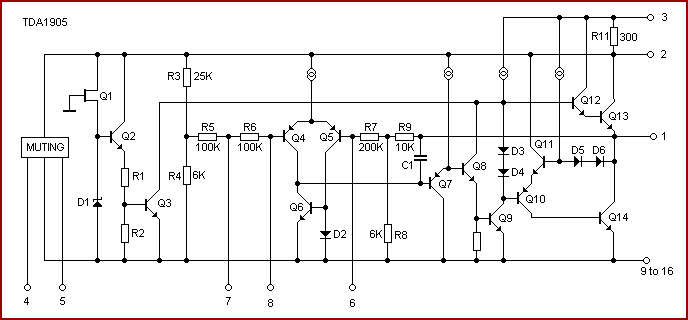

TDA1905
Audio Amplifier

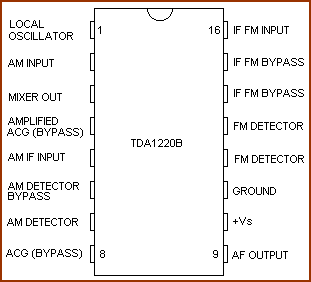

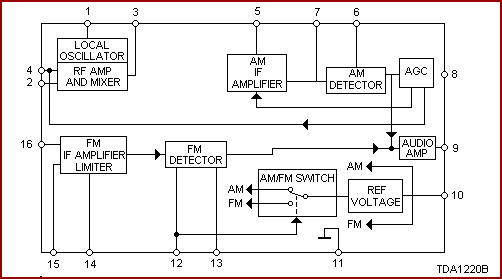

TDA1220B

2nd MIX
2nd IF Amp
DET
AGC

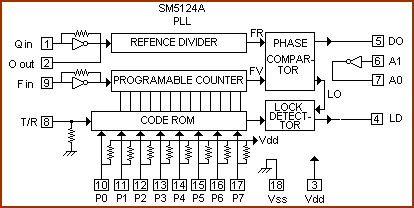

SM5124A
PLL Frequency Synthesizer
