Uniden PRO520E (UT-317A)
Documentation Project
CBTricks.com

Integrated Circuits Internal Diagrams

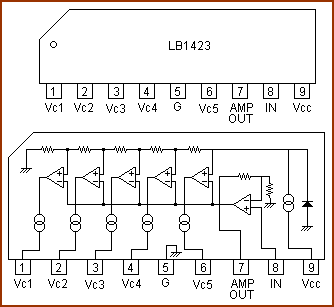

LB1423

LED Meter Driver

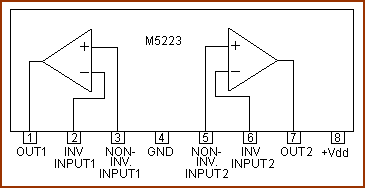

M5223
Squelch and AGC Amplifier

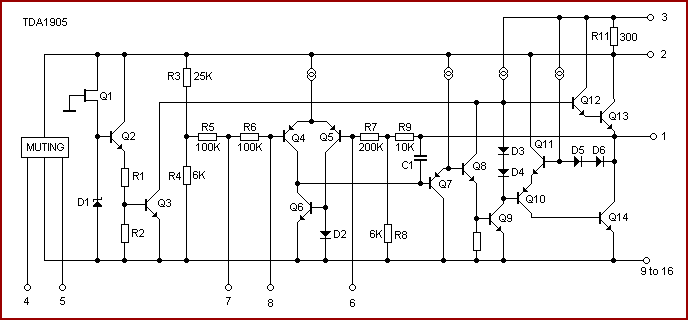

TDA1905
Audio Amplifier

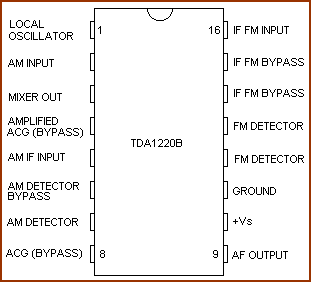

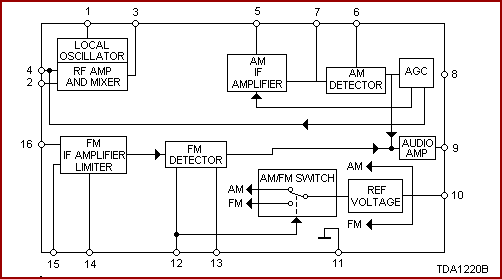

TDA1220B

2nd MIX
2nd IF Amp
DET
AGC

SM5124A
PLL Frequency Synthesizer

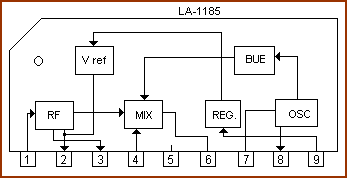

LA1185

RF Amp
1st MIX

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
