Realistic
TRC453
Documentation Project
CBTricks.com
TX Alignment Procedure:
Refer
to ALIGNMENT POINTS

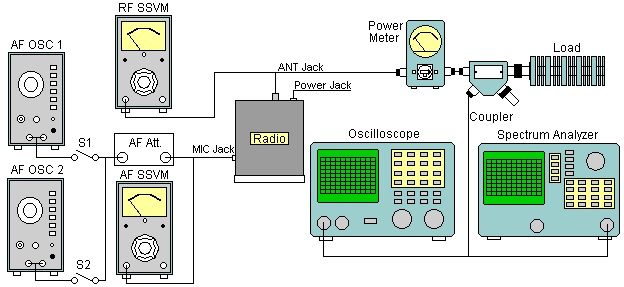

Equipment
Required
a.
AF Oscillator (two required) b. AF SSVM (Full scale: 1 V DC with RF probe) c. DC Ammeter d. RF Power Meter e. 50 ohm load and Attenuator |
f.
Oscilloscope g. RF SSVM h. Monitor Receiver or Spectrum Analyzer i. DC Power Supply (13.8 V/3 Amp.) |
STEP |
SETTINGS |
CONNECTION |
ADJUST
|
ADJUST FOR |
1. |
CH:
19, PA/CB: CB |
Break circuit at TP8 and TP7, place DC mA meter in series. |
VR9 |
Adjust for 40 mA. |
2. |
Same as step 1 |
Break circuit at TP8 and TP6, place DC mA meter in series. |
VR8 |
Adjust for 30mA |
After step 1 and 2, restore circuit at TP8 and TP7. |
||||
3. |
Same
as step 1 |
Set VR6 to Full clockwise rotation ALC "off" condition). Keep the AF ATT for approx. 20V reading on RF SSVM. |
L37,
36, |
Then adjust coils for max. reading. Repeat this adjustment several times, reducing the AF input level to the microphone circuit. |
4. |
Same as step 3 |
L34,
35 |
Adjust Coils for max, reading on RFSSVM. Check the power difference between CH1 and CH40, If it is over 1V on RFSSVM, readjust coils to obtain within 1 V. |
|
5. |
Same
as step 1 |
Adjust level of OSC1 for 5mV reading on AF SSVM, |
L26 |
Adjust for maximum reading on RFSSVM. |
6. |
Same
as step 1 |
Spectrum Analyzer or Oscilloscope. |
VR4 |
Adjust for minimum carrier leakage for both USB and LSB |
7. |
Same
as step 3 |
Adjust OSC1 and OSC2 for 5mV reading on AF SSVM, |
VR6 |
Adjust for 24.5V reading on RF SSVM. |
8. |
Same
as step 1 |
RF Power meter. |
VR10 |
Adjust for 4.0W reading on RF Power meter. |
9. |
Same as step 8 |
RF Power meter. |
VR7 |
Adjust so the 4 digits light on the Transceiver's meter. |
10. |
Same as step 5 |
Adjust output of OSC1 for 200mV reading on AF SSVM |
VR5 |
Adjust for 95 to 98% modulation on Scope. |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
