Ranger
RCI-2970
Documentation Project
CBTricks.com
RCI-2950

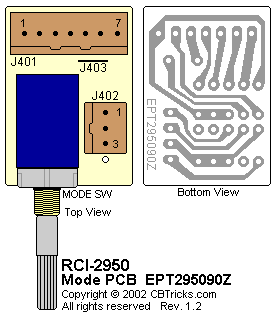

MODE P.C. BOARD EPT295090Z

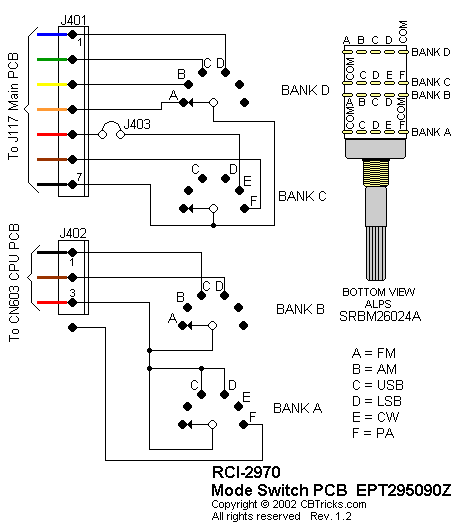

Schematic Diagram
Switch
|
Ref# |
Description |
MFR. Part No. |
|
|
ROTARY SW, 6N |
EWRT32053S |
Connectors
|
Ref# |
Description |
MFR. Part No. |
|
|
PCB CONN. SOCKET, 3P |
EX07N41216 |
|
|
PCB CONN. SOCKET, 7P |
EX07N41261 |
Jumper Wire
|
Ref# |
Description |
MFR. Part No. |
|
J403 |
JUMPER WIRE 7x6x7mm |
WX01070706 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
