Ranger
RCI-2970
Documentation Project
CBTricks.com

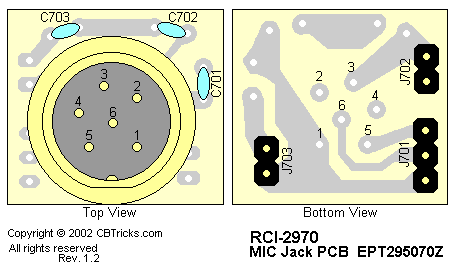

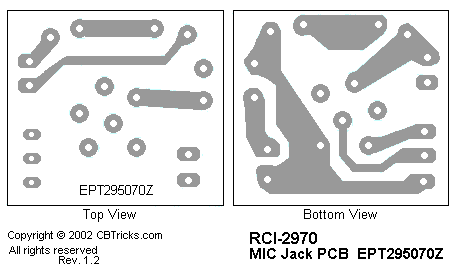

RCI-2950 MIC JACK P.C. BOARD EPT295070Z
Capacitors
|
Ref# |
Description |
MFR. Part No. |
|
C701 |
.001uF 50WV Z SL, CERAMIC |
CC0501027L |
|
C702 |
.001uF 50WV Z SL, CERAMIC |
CC0501027L |
|
C703 |
.001uF 50WV Z SL, CERAMIC |
CC0501027L |
Connectors
|
Ref# |
Description |
MFR. Part No. |
|
J701 |
PCB CONNECTOR SOCKET 3P |
EX07N48244 |
|
J702 |
PCB CONNECTOR SOCKET 2P |
EX07N48152 |
|
J703 |
PCB CONNECTOR SOCKET 2P |
EX07N48152 |
|
|
MIC JACK 6P |
EX06N41111 |
