Ranger
RCI-2970
Documentation Project
CBTricks.com

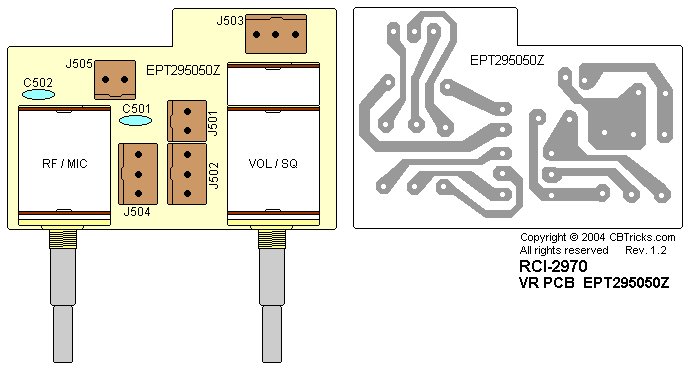

VR PCB RF/Mic Gain / Vol / SQ PCB (EPT295050Z)
Capacitors
|
Ref# |
Description |
MFR. Part No. |
|
C501 |
.001uF 50WV Z SL, CERAMIC |
CC0501027L |
|
C505 |
.001uF 50WV Z SL, CERAMIC |
CC0501027L |
Potentiometers
|
Ref# |
Description |
MFR. Part No. |
|
RF/MIC |
VR 1KA-5KB |
RV10203451 |
|
VOL/SQ |
VR 5OKB-50KA |
RV50303453 |
Connectors
|
Ref# |
Description |
MFR. Part No. |
|
J501 |
PCB CONNECTOR SOCKET 2P |
EX07N41226 |
|
J502 |
PCB CONNECTOR SOCKET 2P |
EX07N41226 |
|
J503 |
PCB CONNECTOR SOCKET 3P |
EX07N41216 |
|
J504 |
PCB CONNECTOR SOCKET 3P |
EX07N41216 |
|
J505 |
PCB CONNECTOR SOCKET 2P |
EX07N41226 |
