Ranger
RCI-2950
Documentation Project
CBTricks.com
CPU
PCB (EPT295043Z)

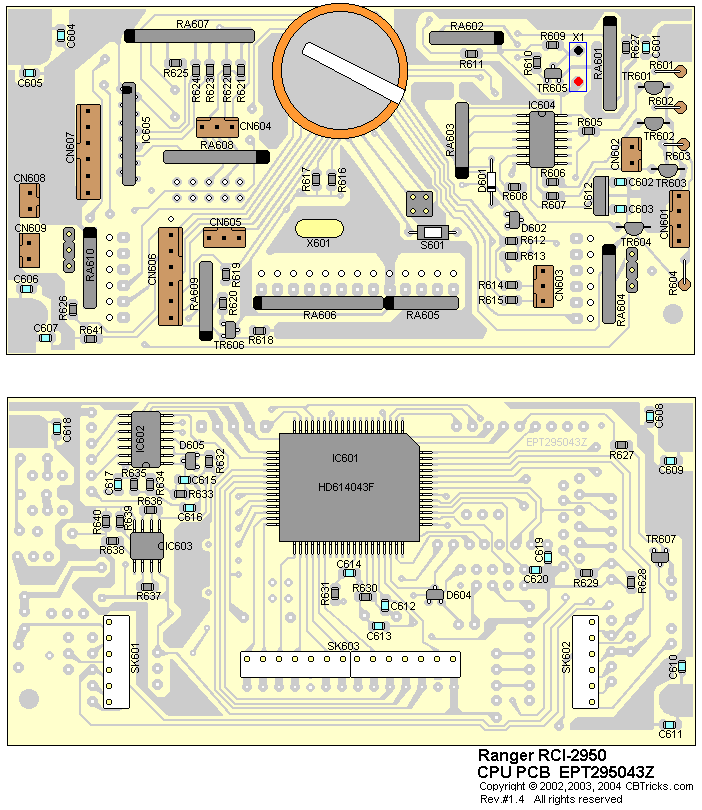

Trace Layout
Resistors Array
|
Ref# |
Description |
MFR. Part No. |
|
RA601 |
RESISTOR ARRAY, 10K/20K 6P |
RCS0670023 |
|
RA602 |
RESISTOR ARRAY, 47K 5P |
RCS0570009 |
|
RA603 |
RESISTOR ARRAY, 47K 5P |
RCS0570009 |
|
RA604 |
RESISTOR ARRAY, 220K 5P |
RCS0570022 |
|
RA605 |
RESISTOR ARRAY, 47K 5P |
RCS0570009 |
|
RA606 |
RESISTOR ARRAY, 220K 9P |
RCS0970021 |
|
RA607 |
RESISTOR ARRAY, 47K 9P |
RCS0970015 |
|
RA608 |
RESISTOR ARRAY, 47K 7P |
RCS0770020 |
|
RA609 |
RESISTOR ARRAY, 47K 5P |
RCS0570009 |
|
RA610 |
RESISTOR ARRAY, 220K 5P |
RCS0570022 |
|
RA611 |
RESISTOR ARRAY, 47K 5P |
RCS0570009 |
Resistors
|
Ref# |
Description |
MFR. Part No. |
|
R601 |
270ohm 1/4W (U) TYPE, CARBON |
RCU142714Z |
|
R602 |
220ohm 1/4W (U) TYPE, CARBON |
RCU142214Z |
|
R603 |
180ohm 1/4W (U) TYPE, CARBON |
RCU141814Z |
|
R604 |
82ohm 1/4W (U) TYPE, CARBON |
RCU148204Z |
|
R605 |
470ohm .1 W CHIP |
RCY014714Z |
|
R606 |
470ohm .1W CHIP |
RCY014714Z |
|
R607 |
470ohm .1W CHIP |
RCY014714Z |
|
R608 |
470ohm .1 W CHIP |
RCY014714Z |
|
R609 |
10ohm .1 W, CHIP |
RCY011034Z |
|
R610 |
1ohm .1 W CHIP |
RCY011024Z |
|
R611 |
47K, 0.1W CHIP |
RCY014734Z |
|
R612 |
47K, 0AW CHIP |
RCY014734Z |
|
R613 |
47K, 0.1W CHIP |
RCY014734Z |
|
R614 |
47K, 0.1 W CHIP |
RCY014734Z |
|
R615 |
47K, 0.1W CHIP |
RCY014734Z |
|
R617 |
47K, 0.1W CHIP |
RCY014734Z |
|
R618 |
47K, 0.1 W CHIP |
RCY014734Z |
|
R619 |
47K,.0.1W CHIP |
RCY014734Z |
|
R620 |
470ohm .1W CHIP |
RCY014714Z |
|
R621 |
47K 0.1W CHIP |
RCY014734Z |
|
R622 |
47K 0.1 W CHIP |
RCY014734Z |
|
R623 |
47K 0.1W CHIP |
RCY014734Z |
|
R624 |
47K 0.1 W CHIP |
RCY014734Z |
|
R625 |
47K 0.1W CHIP |
RCY014734Z |
|
R626 |
4.7K 0.1 W CHIP |
RCY014724Z |
|
R627 |
47K 0.1W CHIP |
RCY014734Z |
|
R628 |
47K 0.1 W CHIP |
RCY014734Z |
|
R629 |
47K 0.1W. CHIP |
RCY014734Z |
|
R630 |
RESISTOR, 1MEG, 0.1 W, CHIP |
RCY011054Z |
|
R631 |
10ohm .1 W CHIP |
RCY011034Z |
|
R632 |
47K 0.1 W CHIP |
RCY014734Z |
|
R633 |
39K 0.1 W CHIP |
RCY013934Z |
|
R634 |
RESISTOR, 220K 0.1 W CHIP |
RCY012244Z |
|
R635 |
RESISTOR, 1MEG 0.1W CHIP |
RCY011054Z |
|
R636 |
RESISTOR, 100K 0.1W CHIP |
RCY011044Z |
|
R637 |
RESISTOR, 220K 0.1W CHIP |
RCY012244Z |
|
R638 |
RESISTOR, 100K 0.1W CHIP |
RCY011044Z |
|
R639 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
|
R640 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
|
R641 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
|
R642 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
|
R643 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
|
R644 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
|
R645 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
|
R646 |
RESISTOR, 47K O.1W CHIP |
RCY014734Z |
|
R647 |
RESISTOR, 47K O.1W CHIP |
RCY014734Z |
|
R648 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
|
R649 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
|
R650 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
|
R651 |
RESISTOR, 47K 0.1W CHIP |
RCY014734Z |
|
R652 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
|
R653 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
|
R654 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
|
R655 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
|
R656 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
|
R657 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
|
R658 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
|
R659 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
|
R660 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
|
R661 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
|
8662 |
RESISTOR, 47 K 0.1W CHIP |
RCY014734Z |
Capacitors
|
Ref# |
Description |
MFR. Part No. |
|
C601 |
.01uF 50WV K Z5U, MONO. |
CK1103AB7U |
|
C602 |
.1uF 35WV M, TANTALUM |
CTY351046Z |
|
C603 |
.33uF 35WV M, TANTALUM |
CTY353346Z |
|
C604 |
.01uF 50WV KZ5U, MONO. |
CK1103A87U |
|
C605 |
.01uF 50WV KZ5U, MONO. |
CK1103AB7U |
|
C606 |
.01uF 50WV K Z5U, MONO. |
CK1103AB7U |
|
C607 |
.01uF 50WV K Z5 U, MONO. |
CK1103AB7U |
|
C608 |
.01uF 50WV KZ5U, MONO. |
CK1103AB7U |
|
C609 |
.01uF 50WV K Z5 U, MONO. |
CK1103AB7U |
|
C610 |
.01uF 50WV K Z5U, MONO. |
CK1103A87U |
|
C611 |
.01uF 50WV K Z5 U, MONl0. |
CK1103A87U |
|
C612 |
33PF 50WV J CH, MONO CHIP |
CK1330AB4A |
|
C613 |
33PF 50WV J CH, MONO CHIP |
CK1330AB4A |
|
C614 |
.1uF 50WV Z Y5V, MONO. |
CK2104AB7V |
|
C615 |
.0027uF 50WV Z Y5V, MONO. |
CK1272AB5R |
|
C616 |
470PF 50WV K SL, MONO. CHIP |
CK1471AB5L |
|
C617 |
100PF 50WV K SL, MONO CHIP |
CK1101AB5L |
|
C618 |
.01uF 50WV K Z5U, MONO. |
CK1103AB7U |
Integrated Circuits
|
Ref# |
Description |
MFR. Part No. |
|
IC601 |
IC HD4074008F |
ENH174008F |
|
IC602 |
IC TC4069UBF |
ENTA04069F |
|
IC603 |
IC M5223FP |
ENMI05223F |
|
IC604 |
IC TC4069UBF |
ENTA04069F |
|
IC605 |
IC TA78 |
TZTA00078Z |
|
IC606 |
IC TA78 |
TZTA00078Z |
|
IC612 |
IC 7805 |
ENSS07805Z |
Transistors
|
Ref# |
Description |
MFR. Part No. |
|
TR601 |
TRANSISTOR 2SC945P |
T2SC00945P |
|
TR602 |
TRANSISTOR 2SC945P |
T2SC00945P |
|
TR603 |
TRANSISTOR 2SC945P |
T2SC00945P |
|
TR604 |
TRANSISTOR 2SC945P |
T2SC00945P |
|
- |
TRANSISTOR 2SA1162GR |
T2SA01162G |
|
TR605 |
TRANSISTOR 2SC2712 |
T2SC02712G |
|
TR606 |
TRANSISTOR 2SC2712 |
T2SC02712G |
|
TR607 |
TRANSISTOR 2SC2712 |
T2SC02712G |
Diodes
|
REF# |
DESCRIPTION |
PART# |
|
D601 |
DIODE 1N5711 |
ED1N05711Z |
|
D602 |
DIODE 1SS181 |
EDSS00181Z |
|
D604 |
DIODE 1SS181 |
EDSS00181Z |
|
D605 |
DIODE 1SS181 |
EDSS00181Z |
Resonator
|
REF# |
DESCRIPTION |
PART# |
|
X601 |
RESONATOR, 4MHZ, CERAMIC |
EX14N46510 |
Switch
|
REF# |
DESCRIPTION |
PART# |
|
S601 |
TACT SW |
EWPS33042X |
Buzzer
|
REF# |
DESCRIPTION |
PART# |
|
- |
BUZZER RKM35-4A |
EX14N46511 |
Battery
|
REF# |
DESCRIPTION |
PART# |
|
L1 |
BATTERY LITHIUM, 3V 170maH |
EX08N41405 |
Connectors
|
REF# |
DESCRIPTION |
PART# |
|
- |
PCB CONNECTOR SOCKET 6P |
EX07N41266 |
|
- |
PCB CONNECTOR SOCKET 4P |
EX07N41250 |
|
- |
PCB CONNECTOR SOCKET 3P |
EX07N41216 |
|
CN602 |
PCB CONNECTOR SOCKET 2P |
EX07N41226 |
|
CN608 |
PCB CONNECTOR SOCKET 2P |
EX07N41226 |
|
CN609 |
PCB CONNECTOR SOCKET 2P |
EX07N41226 |
|
- |
PCB CONNECTOR SOCKET 3P |
EX07N48244 |
|
- |
PCB CONNECTOR SOCKET 4P |
EX07N48440 |
|
- |
PCB CONNECTOR HOUSING 7P |
EX07N48011 |
|
- |
PCB CONNECTOR HOUSING 6P |
EX07N48010 |
|
- |
PCB CONNECTOR SOCKET 10P |
EX07N48416 |
|
- |
SHORT PIN 2P |
EX07N48151 |
