Galaxy
DX Radios DX95T2
Documentation Project
CBTricks.com

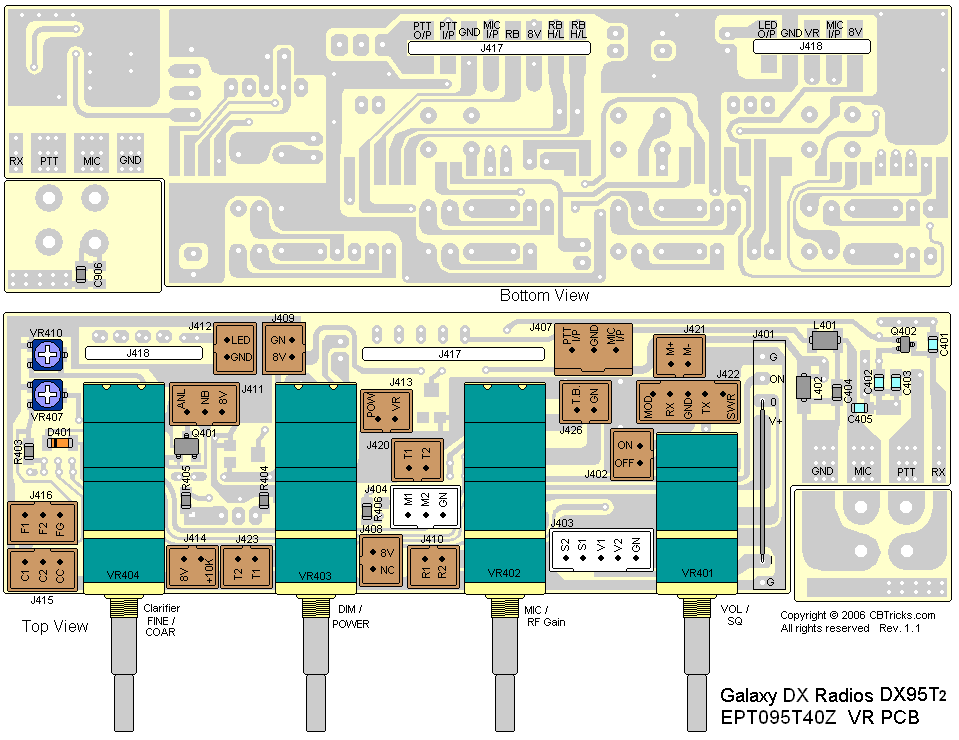

VR PCB (EPT095T40Z)
Trace Layout
Parts List
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
VR PCB (DX-95T2) EPT095T40Z |
#T-149C-P09 |
|
|
VR PCB 151.5x80x1.6tmm(d) |
EPT095T40Z |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R403 |
CHIP/F/R (SMD) 47 OHM 0.1W |
RCY014704Z |
|
R404 |
CHIP/F/R (SMD) 6.8K OHM 0.1W |
RCY016824Z |
|
R405 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
R406 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C401 |
CHIP/C 0.001UF 50WV |
CK1102AB7L |
|
C402 |
CHIP/C 0.01UF 50WV K X7R |
CK1103AB5X |
|
C403 |
CHIP/C 0.001UF 50WV |
CK1102AB7L |
|
C404 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
C405 |
CHIP/C 0.01UF 50WV K X7R |
CK1103AB5X |
Diodes
|
Ref#
|
Description |
MFR.
Part No.
|
|
D401 |
DIODE (S.M.D.) 1N4148 |
ED1N04148Y |
Potentiometers
|
Ref#
|
Description |
MFR.
Part No.
|
|
VR401 (VOL/SQ) |
V/R(RK097221101K) 50KB/50KA W/SW |
RV50303522 |
|
VR402 (MIC/RF GAIN) |
V/R 1KA/1KB W/PUSH SW |
RV10203603 |
|
VR403 (DIM/PWR) |
V/R 5KB/5KB W/PUSH SW |
RV50203571 |
|
VR404 (FINE/COAR) |
V/R 20KB/1KB W/PUSH SW |
RV20303568 |
|
VR407 |
S/F/R (SMD) 10K (TMC3KJ) |
RE103Y0131 |
|
VR410 |
S/F/R (SMD) 1K (TMC3KJ) |
RE102Y0128 |
Transistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
Q401 |
T/R (SMD) DTA143EK |
TYDTA143EK |
|
Q402 |
T/R (SMD) DTA124EUAT106 |
TYDTA124EA |
Inductors
|
Ref#
|
Description |
MFR.
Part No.
|
|
L401 |
CHOKE COIL (SMD) 5.6UH TC J |
YCTLI5653C |
|
L402 |
BEAD FERRITE COIL WB-403025 |
YCBAD18581 |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
J401 |
JUMPER WIRE 7x19MMx7 |
WX01070719 |
|
J402 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J403 |
PCB CONNECTOR/S 5P PH=2MM (WHITE) |
EX07W48826 |
|
J404 |
PCB CONNECTOR/S 3P PH=2MM (WHITE) |
EX07W48824 |
|
J407 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
|
J408 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J409 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J410 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J411 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
|
J412 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J413 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J414 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J415 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
|
J416 |
PCB CONNECTOR/S 3P PH=2MM (WHITE) |
EX07W48824 |
|
J420 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J421 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J422 |
PCB CONNECTOR/S 5P PH=2MM |
EX07N48222 |
|
J423 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J426 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
