Galaxy
DX Radios DX959
Documentation Project
CBTricks.com

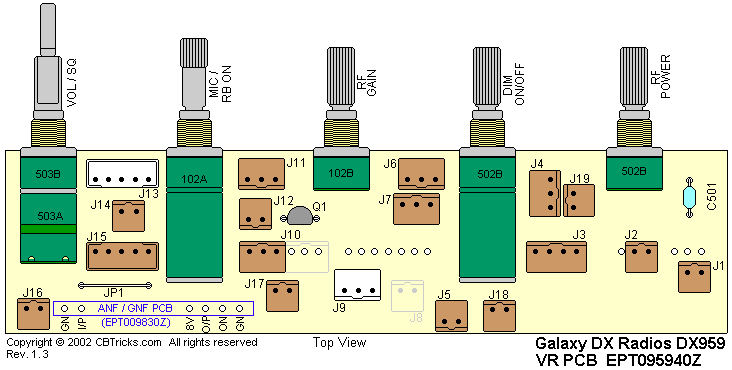

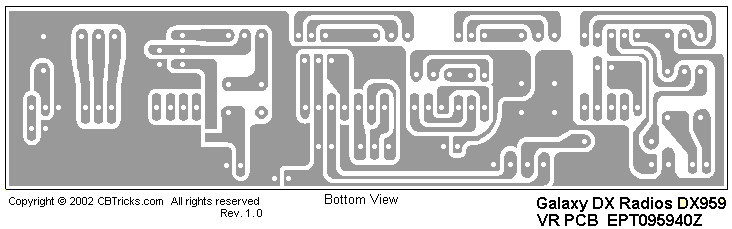

Front Panel Controls PCB (EPT95940Z) Early Production
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
|
VR P.C.B. |
EPT095940Z |
|
|
VR P.C.B. Complete with Components |
#MT-145G-P05 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
VOL/SQ |
VR 50KB/50KA W/SW |
RV50303522 |
|
RF GAIN |
VR 1KB |
RV10203528 |
|
DIMMER |
DIMMER/PUSH SW 5KB/PUSH ON/OFF SW L=20mm |
RV50203542 |
|
MIC GAIN/RB |
MIC GAIN/PUSH SW 1KA/PUSH SW L=20mm |
RV10203541 |
|
RF POWER |
VR 5KB |
RV50203525 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
Q1 |
T/R DTA124ES |
TDTA0124ES |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
C501 |
M/C 0.022UF 50WV K |
CM0502235Z |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
JP1 |
JUMPER WIRE 7x10x7 |
WX01070710 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
J1 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J2 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J3 |
PCB CONNECTOR/S 4P PH=2MM |
EX07N48490 |
|
J4 |
PCB CONNETOR/S 3P PH=2MM |
EX07N48350 |
|
J5 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J6 |
PCB CONNETOR/S 3P PH=2MM |
EX07N48350 |
|
J7 |
PCB CONNETOR/S 3P PH=2MM |
EX07N48350 |
|
J9 |
PCB CONNECTOR/S 3P PH=2MM |
EX07W48824 |
|
J10 |
PCB CONNETOR/S 3P PH=2MM |
EX07N48350 |
|
J11 |
PCB CONNETOR/S 3P PH=2MM |
EX07N48350 |
|
J12 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J13 |
PCB CONNECTOR/S 5P PH=2MM |
EX07W48826 |
|
J14 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J15 |
PCB CONNECTOR/S 5P PH=2MM |
EX07N48222 |
|
J16 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J17 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J18 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J19 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
