Galaxy
DX Radios DX949
Documentation Project
CBTricks.com
SWR

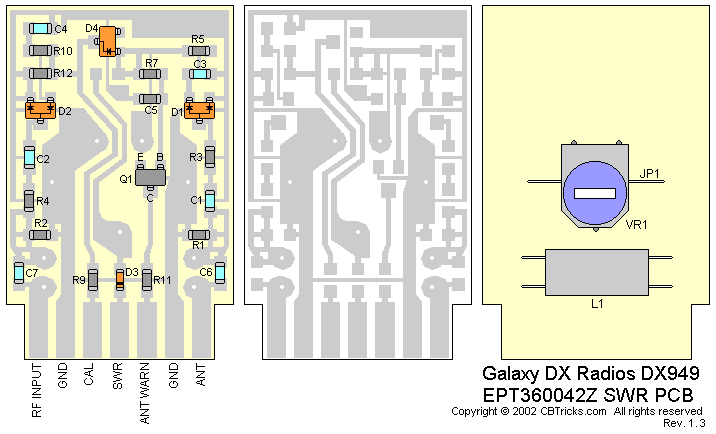

P.C.B. (EPT360042Z)

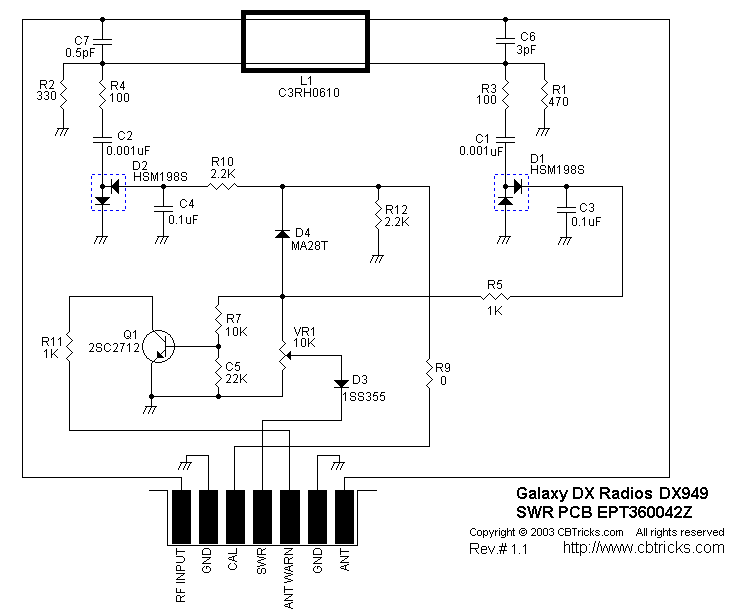

Schematic
|
Ref.
No.
|
Description |
MFR.
Part No.
|
| SWR P.C.B. 33x25x1.6tmm |
EPT360042Z
|
|
|
|
SWR P.C.B. Complete with Components |
#MT-120Q-1 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
R1 |
CHIP/F/R (SMD) 470 OHM 0.1W |
RCY014714Z |
|
R2 |
CHIP/F/R (SMD) 330 OHM 0.1W |
RCY013314Z |
|
R3 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R4 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R5 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
|
R7 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R9 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
R10 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R11 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
|
R12 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
C5 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
C1 |
CHIP/C (SMD) 0.001UF 50WV Z SL |
CK1102AB7L |
|
C2 |
CHIP/C (SMD) 0.001UF 50WV Z SL |
CK1102AB7L |
|
C3 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C4 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C6 |
CHIP/C (SMD) 3PF 50WV C CH |
CK1030AB1A |
|
C7 |
CHIP/C (SMD) 0.5PF 50WV C CH |
CK1059AB1A |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
Q1 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
D1 |
DIODE (SMD) HSM198S |
EDHM0198SY |
|
D2 |
DIODE (SMD) HSM198S |
EDHM0198SY |
|
D3 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D4 |
DIODE (SMD) MA28T |
EDMA0028TY |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
L1 |
TDK BRAND CORE C3RH0610 |
ECRFZ10053 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
VR1 |
S/F/R 10K OHM L |
RE10300009 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
JP1 |
JUMPER WIRE 7x15x7 |
WX01070715 |
|
Ref.
No.
|
Description |
MFR.
Part No.
|
|
SWR P.C.B. |
FOAM 14x16x20mm |
XZZZ90004Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
