Galaxy
DX Radios DX93T
Documentation Project
CBTricks.com
RF AMP PCB (EPAC05010B)
Trace Layout

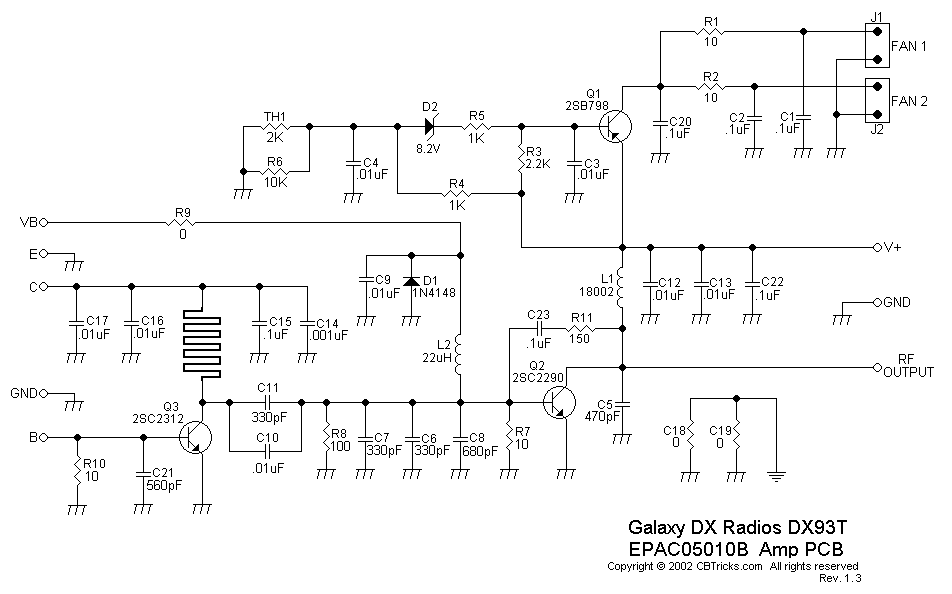

Schematic Diagram
Schematic Diagram
Parts List
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R1 |
CHIP/F/R (SMD) 47 OHM 0.1W |
RCY014704Z |
|
Later
Production
|
CHIP/F/R (SMD) 10 OHM 0.1W |
RCY011004Z
|
|
R2 |
CHIP/F/R (SMD) 47 OHM 0.1W |
RCY014704Z |
|
Later
Production
|
CHIP/F/R (SMD) 10 OHM 0.1W |
RCY011004Z
|
|
R3 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
|
Later
Production
|
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z
|
|
R4 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
|
R5 |
CHIP/F/R (SMD) 1K OHM 0.1W |
RCY011024Z |
|
R6 |
CHIP/F/R (S.M.D) 10K OHM 0.1W |
RCY011034Z |
|
R7 |
CHIP/F/R (SMD) 10 OHM 1/4W |
RCY141004Z |
|
R8 |
CHIP/F/R (SMD) 100 OHM 1/4W |
RCY141014Z |
|
R9 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
R10 |
CHIP/F/R (SMD) 10 OHM 1/4W |
RCY141004Z |
|
R11
|
C/F/R P-TYPE 150 OHM 1/2W |
RCP121514Z
|
|
Ref#
|
Description |
MFR.
Part No.
|
|
TH1 |
THERMISTOR (SMD) 2K OHM (TCM-A220E) |
RTU142024Y |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C1 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C2 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C3 |
CHIP/C (SMD) 0.01UF 50WV K X7R |
CK1103AB5X |
|
C4 |
CHIP/C (SMD) 0.01UF 50WV K X7R |
CK1103AB5X |
|
C5 |
MICA CHIP/C 470PF 500WV J CH |
CK3471BF4A |
|
C6 |
CHIP/C (SMD) 330PF 100WV K CH |
CK4331AA5A |
|
C7 |
CHIP/C (SMD) 330PF 100WV K CH |
CK4331AA5A |
|
C8 |
CHIP/C (SMD) 680PF 100WV K CH |
CK4681AA5A |
|
C9 |
CHIP/C (SMD) 0.01UF 100WV K X7R |
CK4103AA5X |
|
C10 |
CHIP/C (SMD) 0.01UF 100WV K X7R |
CK4103AA5X |
|
C11 |
CHIP/C (SMD) 330PF 100WV K CH |
CK4331AA5A |
|
C12 |
CHIP/C (SMD) 0.01UF 50WV K X7R |
CK1103AB5X |
|
C13 |
CHIP/C (SMD) 0.01UF 50WV K X7R |
CK1103AB5X |
|
C14 |
CHIP/C(SMD) 0.001UF 50WV Z SLK X7R |
CK1102AB7L |
|
C15 |
CHIP/C (SMD) 0.1UF 100WV K X7R |
CK4104AA5X |
|
C16 |
CHIP/C (SMD) 0.01UF 50WV K X7R |
CK1103AB5X |
|
C17 |
CHIP/C (SMD) 0.01UF 50WV K X7R |
CK1103AB5X |
|
C18 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
C19 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
C20 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C21 |
CHIP/C (SMD) 560P 50WV K CH |
CK1561AB5A |
|
C22 |
CHIP/C (SMD) 0.1UF 100WV K X7R |
CK4104AA5X |
|
C23 |
C/C 0.1UF 50WV SL Z |
CK4104AA5X |
Diodes
|
Ref#
|
Description |
MFR.
Part No.
|
|
D1 |
DIODE (SMD) 1N4148 |
ED1N04148Y |
|
D2 |
ZENER DIODE (SMD) 0.5W 8.2V RLZ |
EDZD05829Y |
Inductors
|
Ref#
|
Description |
MFR.
Part No.
|
|
L1 |
SPRING COIL 0.8x4.5x7t |
ECSPG18002 |
|
L2 |
CHOKE COIL (SMD) NL322522T-220J |
YCTLI2263C |
Transistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
Q1 |
TRANSISTOR (SMD) 2SB798DL-(T1) |
TY2SB0798Z |
|
Q2 |
T/R 2SC2290 |
T2SC02290Z |
|
Q3 |
T/R 2SC2312C |
T2SC02312C |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
J1 |
PCB CONNECTOR/S 2P |
EX07N48152 |
|
J2
|
PCB CONNECTOR/S 2P |
EX07N48152 |
|
GND(1) |
C PIN HAC 220V |
GZZZ50011Z |
|
V+(1) |
C PIN HAC 220V |
GZZZ50011Z |
Fan
|
Ref#
|
Description |
MFR.
Part No.
|
|
FAN (2) |
DC FAN 12V DF124010SM |
EX13N46008 |
|
|
DC FAN COVER FG-04 |
EX13N46009 |
|
|
SET SCREW M3x0.5Px16 |
JS013016MB |
Hardware
|
Ref#
|
Description |
MFR.
Part No.
|
|
(Q3)2312C(1) |
SET SCREW M3x0.5Px8 |
JS013008MN |
|
PCB(2) |
SET SCREW M3x0.5Px8 |
JS013008MN |
|
(Q3)2312C |
INSULATING PLATE 10x14x1.55mm |
XZZZ90358Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
