Galaxy
DX Radios DX919
Documentation Project
CBTricks.com

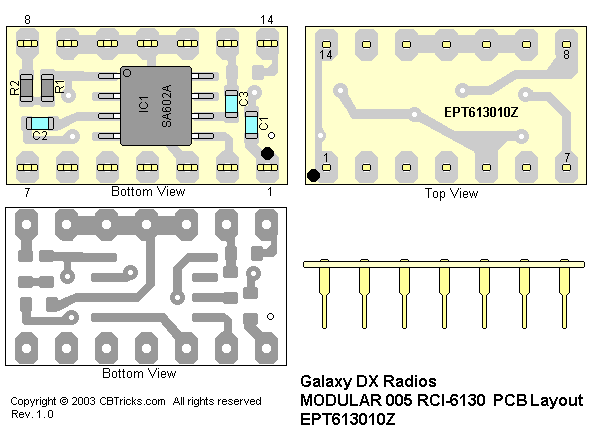

MODULAR 005 RCI-6130
Schematic Diagram
| Ref# |
Description |
MFR. Part No. |
|
MODULAR 005 RCI-6130 |
#F-005 |
|
|
RCI-6130 P.C.B. 18x10x1.0tmm (d). |
EPT613010Z |
Resistors
|
Ref#
|
Description |
MFR. Part No. |
|
R1 |
CHIP/F/R (SMD) 22K OHM |
RCY062234Z |
|
R2 |
CHIP/F/R (SMD) 22K OHM |
RCY062234Z |
Capacitors
|
Ref#
|
Description |
MFR. Part No. |
|
C1 |
CHIP/C 0.001UF 50WV K X7R |
CK1102AD5X |
|
C2 |
CHIP/C 0.01UF 50WV K X7R |
CK1103AD5X |
|
C3 |
CHIP/C 0.001UF 50WV K X7R |
CK1102AD5X |
Integrated Circuits
|
Ref#
|
Description |
MFR. Part No. |
|
IC1
|
I.C.(PHILIPS) (SMD) SA602A 8PIN |
YNPH00602A |
IC Pin
| Ref# |
Description |
MFR. Part No. |
|
IC PIN |
GZZZ50207Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
