Galaxy
DX Radios DX73V
Documentation Project
CBTricks.com
SWR
PCB (EPT360041Z)

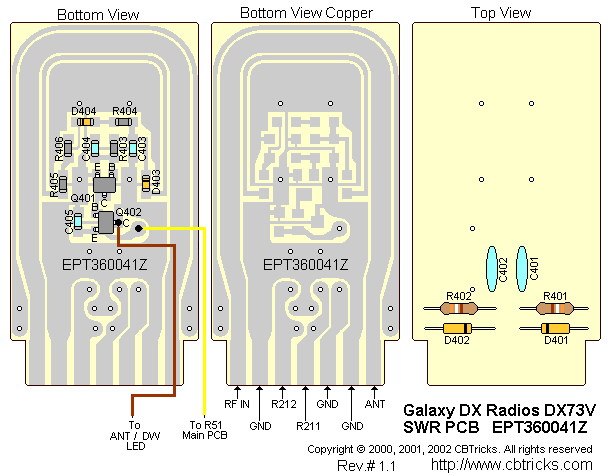

EPT360041Z Schematic Diagram
|
Ref.
No.
|
Description |
MFR.
Part No.
|
| SWR P.C.B. 48x25x1.6tmm |
EPT360041Z
|
|
|
|
SWR P.C.B. Complete with Components |
#MT-140R-P03 |
|
Ref. No. |
Description |
MFR. Part No. |
|
R401 |
C/F/R 390 OHM 1/4W M |
RCM143914A |
|
R402 |
C/F/R 390 OHM 1/4W M |
RCM143914A |
|
R403 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R404 |
CHIP/F/R (SMD) 680 OHM 0.1W |
RCY016814Z |
|
R405 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
R406 |
C/F/R (SMD) 150 OHM 0.1W |
RCY011514Z |
|
Ref. No. |
Description |
MFR. Part No. |
|
C401 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C402 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C403 |
CHIP/C (SMD) 0.01UF 50WV M Z5U |
CK1103AB6U |
|
C404 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C405 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
Ref. No. |
Description |
MFR. Part No. |
|
Q401 |
TRANSISTOR(SMD) 2SC2712GR-TE85L |
TY2SC2712G |
|
Q402 |
TRANSISTOR(SMD) RN2403 -TE85L |
TYZRN2403Z |
|
Ref. No. |
Description |
MFR. Part No. |
|
D401 |
DIODE 1N60P(2-1K60) |
ED1N00060P |
|
D402 |
DIODE 1N60P(2-1K60) |
ED1N00060P |
|
D403 |
DIODE (SMD) MA728 |
EDMA00728Y |
|
D404 |
DIODE (SMD) MA728 |
EDMA00728Y |
|
Ref. No. |
Description |
MFR. Part No. |
|
SWR-LED |
LEAD WIRE #26 200MM BROWN 5:5 |
WL0120005Z |
|
TR13-SWR |
LEAD WIRE #26 100MM YELLOW 15:15 |
WL0410009Z |
|
Ref. No. |
Description |
MFR. Part No. |
|
SWR PCB |
FOAM 14x16x20mm |
XZZZ90004Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
