Galaxy DX Radios DX73V
Documentation Project
CBTricks.com
DX73 Channel Select Board (EPT077V30Z) Trace Layout

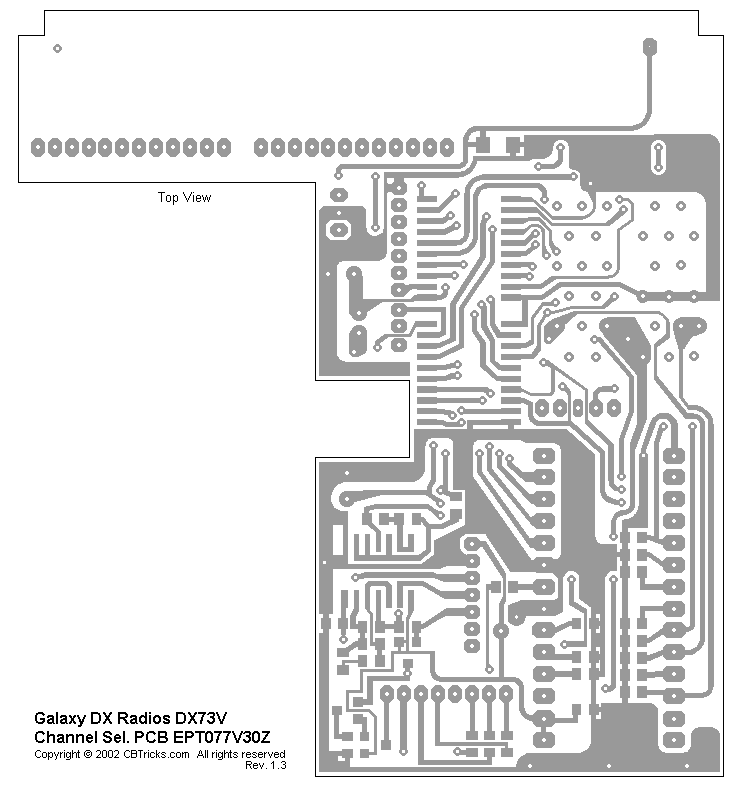

Top View

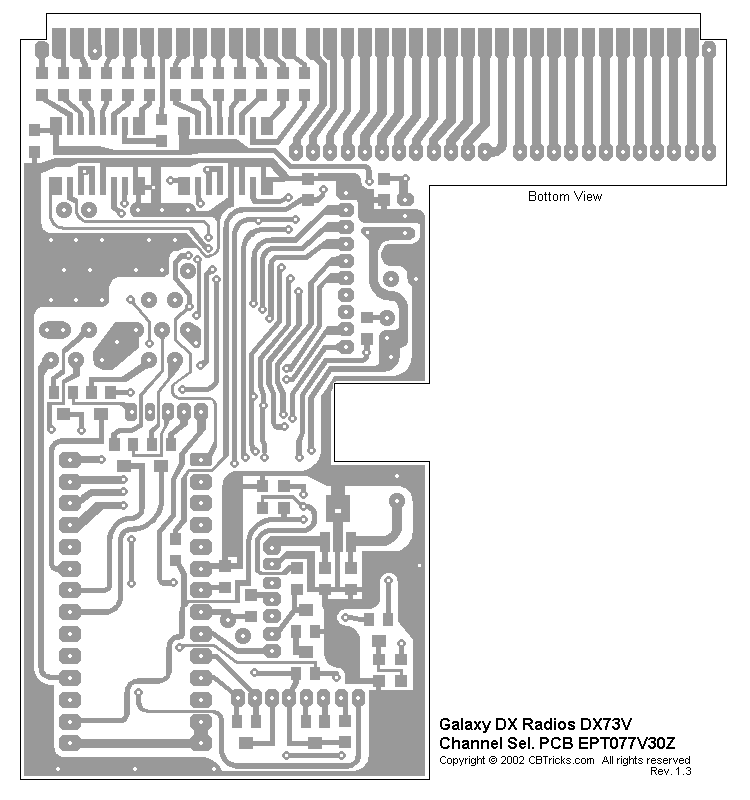

Bottom View

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
