Galaxy
DX Radios DX2547
Documentation Project
CBTricks.com

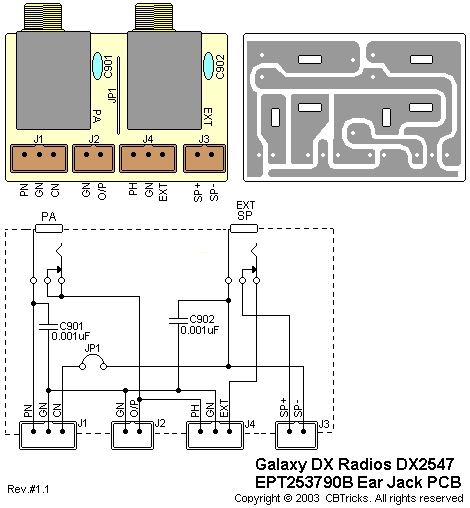

EAR Jack P.C.B. (EPT253790B)
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
EAR PCB EPT253790B (DX2547) |
#T-148-P11 |
|
|
EAR P.C.B. 30x20x1.6tmm(d) |
EPT253790B |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C901 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
|
C902 |
C/C 0.001UF 50WV SL Z |
CC0501027L |
Jack
|
Ref#
|
Description |
MFR.
Part No.
|
|
PA |
EAR JACK S.G-8038#01 |
EX06N41034 |
|
EXT SP |
EAR JACK S.G-8038#01 |
EX06N41034 |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
J1 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
|
J2 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J3 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
J4 |
PCB CONNECTOR/S 3P PH=2MM |
EX07N48350 |
Jumper Wires
|
Ref#
|
Description |
MFR.
Part No.
|
|
JP1 |
JUMPER WIRE 7x10x7mm |
WX01070710 |
Hardware
|
Ref#
|
Description |
MFR.
Part No.
|
|
EARPHONE |
WASHER 6x7x10.8t |
XZZZ90057Z |
|
EARPHONE |
INSULATE WASHER 6QX11.5X0.5T |
JW306011EY |
|
PCB |
SHIELD PLATE 30x20x0.5t |
XZZZ90372Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
