Galaxy
DX Radios DX2527
Documentation Project
CBTricks.com

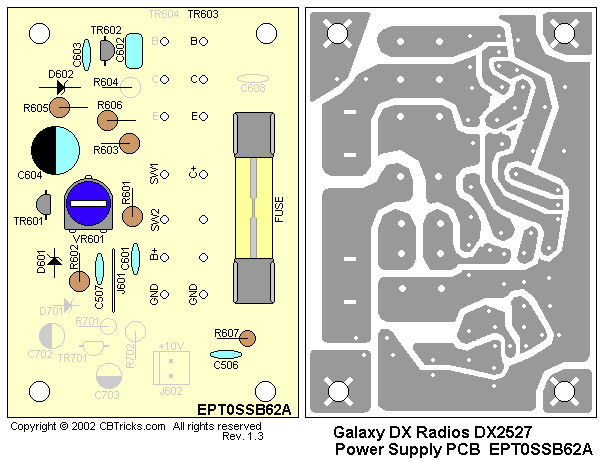

Power Supply PCB EPTOSSB62A
Schematic
Diagram
| Ref# | Description |
MFR.
Part No.
|
|
Power Supply PCB EPT0SSB62A |
#T-106A-P06 |
|
|
Power Supply PCB |
EPT0SSB62A |
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R601 |
C/F/R 1.2K OHM 1W P |
RCP101224Z |
|
R602 |
C/F/R 820 OHM 1W P |
RCP108214Z |
|
R603 |
C/F/R 820 OHM 1W P |
RCP108214Z |
|
R604 |
C/F/R P-TYPE 47 OHM 1W P |
RCP104704Z |
|
R605 |
C/F/R P-TYPE 100 OHM 1W P |
RCP101014Z |
|
R606 |
C/F/R P-TYPE 220 OHM 1W P |
RCP102214Z |
|
R607 |
C/F/R F-TYPE 10K OHM 1/4W U |
RCU141034Z |
|
VR601 |
S/F/R 500 OHM |
RE50100063 |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C506 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C507 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C601 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C602 |
C/C 0.01UF 50WV D M |
CC0501036S |
|
C603 |
C/C 0.047UF 50WV SL Z |
CC0504737L |
|
C604 |
E/C 100UF 35WV Z |
CE0351077Z |
|
C606 |
C/C 0.022UF 100W V Z SL |
CC1002237L |
Transistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
TR601 |
T/R 2SD471K |
T2SD00471K |
| T/R 2SC5395 |
T2SC05395Z
|
|
|
TR602 |
T/R 2SC5395 |
T2SC05395Z |
|
TR603 |
T/R 2N6328 |
|
| T/R 2N5301 | ||
|
|
MICA INSULATOR TO-3 |
PA0100010A |
|
|
HEAT SINK COVER |
MT0SSB310X |
|
|
HEAT SINK |
MM5500100X |
Diodes
|
Ref#
|
Description |
MFR.
Part No.
|
|
D601 |
ZENER DIODE 5.6V 1W |
EDZD10569Z |
|
D602 |
ZENER DIODE 16V 1W |
EDZD10160Z |
Miss.
|
Ref#
|
Description |
MFR.
Part No.
|
|
J601 |
JUMPER WIRE 7x10x7 |
WX01070710 |
|
|
FUSE BRACKET EC-641 |
GZZZ50043Z |
|
|
FUSE 16V 7A |
EX02N40210 |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
