DX Radios DX2517 (MOSFET Final)
Documentation Project
CBTricks.com

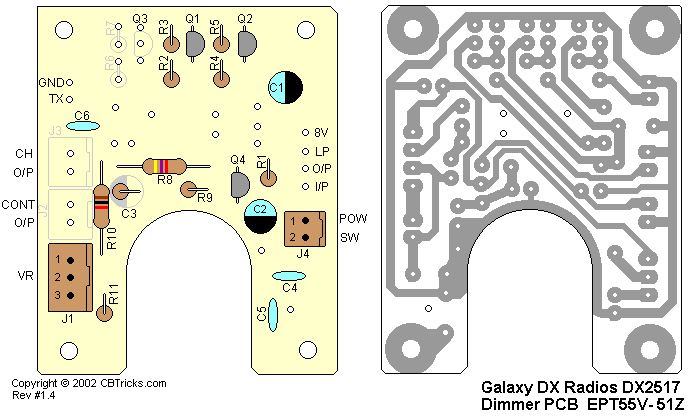

Dimmer PCB (EPT55V-51Z)
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
Dimmer PCB |
#T-106S3-P04
|
|
Dimmer PCB 42x52x1.6tmm (S) |
EPT055V51Z |
|
Ref#
|
Description |
MFR.
Part No.
|
|
R1 |
C/F/R 22 OHM 1/4W U |
RCU142204Z |
|
R2 |
C/F/R 10K OHM 1/4W U |
RCU141034Z |
|
R3 |
C/F/R 4.7K OHM 1/4W U |
RCU144724Z |
|
R4 |
C/F/R 8.2K OHM 1/4W U |
RCU148224Z |
|
R5 |
C/F/R 1.8K OHM 1/4W |
RCU141824Z |
|
R8 |
C/F/R 15K OHM 1/4W M |
RCM141534B |
|
R9 |
C/F/R 39K OHM 1/4W U |
RCU143934Z |
|
R10 |
C/F/R 1K OHM 1/4W M |
RCM141024B |
|
R11 |
C/F/R 820 OHM 1/4W U |
RCU148214Z |
|
C3 |
C/F/R 1K OHM 1/4W P |
RCP141024Z |
|
Ref#
|
Description |
MFR.
Part No.
|
|
C1 |
E/C 47UF 16WV Z |
CE0164767Z |
|
C2 |
E/C 10UF 25WV Z |
CE0251067Z |
|
C4 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C5 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
C6 |
C/C 0.01UF 50WV SL Z |
CC0501037L |
|
Ref#
|
Description |
MFR.
Part No.
|
|
Q1 |
T/R 2SC945P |
T2SC00945P |
|
Q2 |
T/R 2SC945P |
T2SC00945P |
|
Q4 |
T/R 2SC945P |
T2SC00945P |
|
Ref#
|
Description |
MFR.
Part No.
|
|
J1 |
PCB CONNECTOR/S 3P T PH=2.5 |
EX07N41216 |
|
J1 |
WIRE CONNECTOR/H 3P L=280mm |
EX07N48716 |
|
J4 |
PCB CONNECTOR/S 2P PH=2.5 |
EX07N41226 |
|
I/P-J3 |
LEAD WIRE #26 70MM BLACK 15:15 |
WL0007009Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
