Galaxy
DX Radios DX2517 (MOSFET
Final)
Documentation Project
CBTricks.com

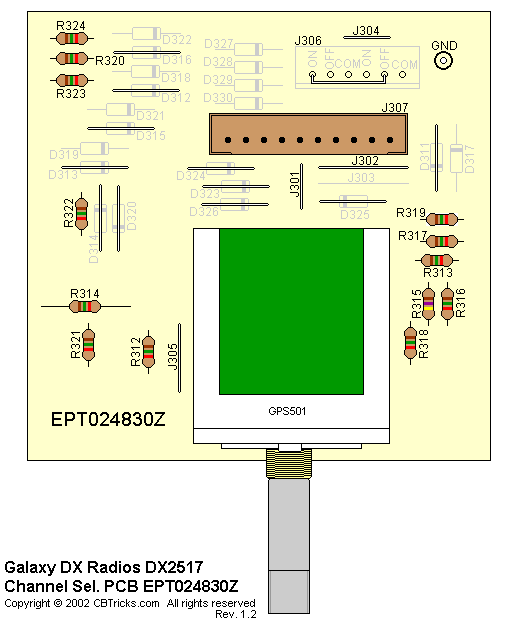

ROTARY SW P.C.B. EPT024830Z
Trace Layout
|
Ref#
|
Description |
MFR.
Part No.
|
| ROTARY SW P.C.B. EPT024830Z |
|
|
|
|
ROTARY SW PCB 50x52x1.6tmm (S) |
EPT024830Z |
|
Ref#
|
Description |
MFR.
Part No.
|
|
R312 |
C/F/R 1.5K OHM 1/16W P |
RCP161524Z |
|
R313 |
C/F/R 1.5K OHM 1/16W P |
RCP161524Z |
|
R314 |
C/F/R 1.5K OHM 1/16W P |
RCP161524Z |
|
R315 |
C/F/R 470 OHM 1/16W P |
RCP164714Z |
|
R316 |
C/F/R 1.5K OHM 1/16W P |
RCP161524Z |
|
R317 |
C/F/R 1.5K OHM 1/16W P |
RCP161524Z |
|
R318 |
C/F/R 1.5K OHM 1/16W P |
RCP161524Z |
|
R319 |
C/F/R 1.5K OHM 1/16W P |
RCP161524Z |
|
R320 |
C/F/R 1.5K OHM 1/16W P |
RCP161524Z |
|
R321 |
C/F/R 1.5K OHM 1/16W P |
RCP161524Z |
|
R322 |
C/F/R 1.5K OHM 1/16W P |
RCP161524Z |
|
R223 |
C/F/R 1.5K OHM 1/16W P |
RCP161524Z |
|
R324 |
C/F/R 1.5K OHM 1/16W P |
RCP161524Z |
|
Ref#
|
Description |
MFR.
Part No.
|
|
J307 |
PCB CONNECTOR/S 10P PH=2 |
EX07N48209 |
|
Ref#
|
Description |
MFR.
Part No.
|
|
J301 |
JUMPER WIRE 7x5MMx7 |
WX01070705 |
|
J302 |
JUMPER WIRE 7x10MMx7 |
WX01070710 |
|
J304 |
JUMPER WIRE 7x5MMx7 |
WX01070705 |
|
J304 |
JUMPER WIRE 7x7MMx7 |
WX01070707 |
|
J306 |
JUMPER WIRE 7x8MMx7 |
WX01070708 |
|
J311 |
JUMPER WIRE 7x7MMx7 |
WX01070707 |
|
J312 |
JUMPER WIRE 7x7MMx7 |
WX01070707 |
|
J313 |
JUMPER WIRE 7x7MMx7 |
WX01070707 |
|
J314 |
JUMPER WIRE 7x7MMx7 |
WX01070707 |
|
J315 |
JUMPER WIRE 7x7MMx7 |
WX01070707 |
|
J316 |
JUMPER WIRE 7x7MMx7 |
WX01070707 |
|
J320 |
JUMPER WIRE 7x7MMx7 |
WX01070707 |
|
J323 |
JUMPER WIRE 7x7MMx7 |
WX01070707 |
|
J324 |
JUMPER WIRE 7x7MMx7 |
WX01070707 |
|
J325 |
JUMPER WIRE 7x7MMx7 |
WX01070707 |
|
J326 |
JUMPER WIRE 7x7MMx7 |
WX01070707 |
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
ROTARY SW GPS-0501 |
EWRT32000S |
