Galaxy
DX Radios DX2517
Documentation Project
CBTricks.com

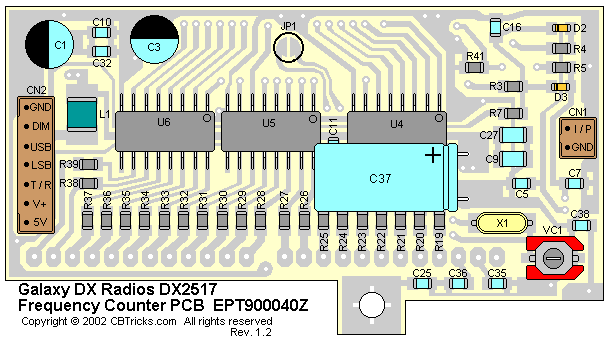

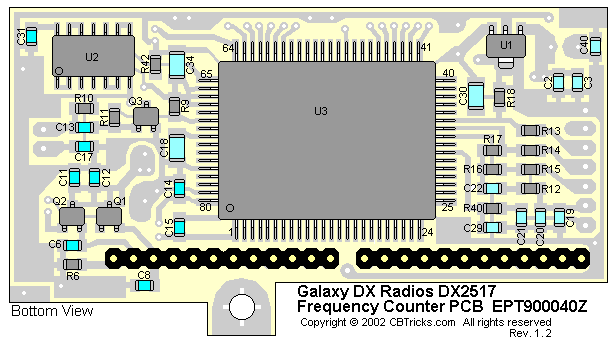

COUNTER PCB EPT900040Z
Trace Layout
Resistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
R3 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R4 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R5 |
CHIP/F/R (SMD) 2.2K OHM 0.1W |
RCY012224Z |
|
R6 |
CHIP/F/R (SMD) 330 OHM 0.1W |
RCY013314Z |
|
R7 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
R9 |
CHIP/F/R (SMD) 470 OHM 0.1W |
RCY014714Z |
|
R10 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R11 |
CHIP/F/R (SMD) 33K OHM 0.1W |
RCY013334Z |
|
R12 |
CHIP/F/R (SMD) 10K OHM 0.1W |
RCY011034Z |
|
R13 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
|
R14 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
|
R15 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
|
R16 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
|
R17 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
|
R18 |
CHIP/F/R (SMD) 22K OHM 0.1W |
RCY012234Z |
|
R19 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R20 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R21 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R22 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R23 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R24 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R25 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R26 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R27 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R28 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R29 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R30 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R31 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R32 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R33 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R34 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R35 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R36 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R37 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R38 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R39 |
CHIP/F/R (SMD) 100 OHM 0.1W |
RCY011014Z |
|
R40 |
CHIP/F/R (SMD) 0 OHM 0.1W |
RCY010004Z |
|
R41 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
|
R42 |
CHIP/F/R (SMD) 47K OHM 0.1W |
RCY014734Z |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C1 |
E/C 100UF 16WV H=5mm |
CEM161077A |
|
C2 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C3 |
E/C 100UF 16WV H=5mm |
CEM161077A |
|
C5 |
CHIP/C (SMD)(K X7R) 0.01UF 50WV M Z5U |
CK1103AB6U |
|
C6 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C7 |
CHIP/C (SMD)(K X7R) 0.01UF 50WV M Z5U |
CK1103AB6U |
|
C8 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C9 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
|
C10 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C11 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C12 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C13 |
CHIP/C (SMD)(K X7R) 0.001UF 50W V Z SL |
CK1102AB7L |
|
C14 |
CHIP/C (SMD) 33PF 50WV J CH |
CK1330AB4A |
|
C15 |
CHIP/C (SMD) 15PF 50WV J CH |
CK1150AB4A |
|
C16 |
CHIP/C (SMD)(K X7R) 0.01UF 50WV M Z5U |
CK1103AB6U |
|
C17 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C18 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
|
C19 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C20 |
CHIP/C (SMD)(K X7R) 0.01UF 50WV M Z5U |
CK1103AB6U |
|
C21 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C22 |
CHIP/C (SMD)(K X7R) 0.01UF 50WV M Z5U |
CK1103AB6U |
|
C25 |
CHIP/C (SMD)(K X7R) 0.01UF 50WV M Z5U |
CK1103AB6U |
|
C27 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
|
C28 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C29 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C30 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
|
C31 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C32 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C33 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C34 |
CHIP/C (SMD) 1UF 16WV Z Y5V |
CK5105AA7R |
|
C35 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C36 |
CHIP/C (SMD) 0.1UF 25WV Z Y5V |
CK2104AB7R |
|
C37 |
E/C 1000UF 16WV Z |
CE0161087Z |
|
C38 |
CHIP/C (SMD)(K X7R) 0.01UF 50WV M Z5U |
CK1103AB6U |
|
C40 |
CHIP/C (SMD)(K X7R) 0.01UF 50WV M Z5U |
CK1103AB6U |
|
|
|
|
|
VC1 |
TRIMMER/C (SMD) 20PF TCZ03P200A1 |
CV038200AY |
Integrated Circuits
|
Ref#
|
Description |
MFR.
Part No.
|
|
U1 |
IC (SMD) TK11650U 3PIN |
YNTO11650U |
|
U2 |
IC (SMD) TC4093BFN 4PIN |
YNTA04093B |
|
U3 |
IC 80PIN LC7232N-898 5 |
YNRG0GX3SP |
|
U4 |
IC (SMD) BA6250F-TP 16PIN |
YNRO06250F |
|
U5 |
IC (SMD) BA6250F-TP 16PIN |
YNRO06250F |
|
U6 |
IC (SMD) BA6250F-TP 16PIN |
YNRO06250F |
Transistors
|
Ref#
|
Description |
MFR.
Part No.
|
|
Q1 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
|
Q2 |
T/R (SMD) 2SC2712GR-TE85L |
TY2SC2712G |
|
Q3 |
T/R (SMD) 2SC2714-TE85L |
TY2SC2714Z |
Diodes
|
Ref#
|
Description |
MFR.
Part No.
|
|
D2 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
|
D3 |
DIODE (SMD) 1SS355 |
EDSS00355Y |
Inductors
|
Ref#
|
Description |
MFR.
Part No.
|
|
L1 |
CHOKE COIL(SMD) NL453232T-1 02J |
YCTLI1083F |
Crystals
|
Ref#
|
Description |
MFR.
Part No.
|
|
X1 |
CRYSTAL HC-49/U 4.500MHz |
EYCAP04500 |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
|
PCB CONNECTOR/S 12P PH=2 L=6.8mm |
EX07N48927 |
|
CN1 |
PCB CONNECTOR/S 2P PH=2MM |
EX07N48223 |
|
CN2 |
PCB CONNECTOR/S 7P PH=2MM |
EX07N48224 |
Jumpers
|
Ref#
|
Description |
MFR.
Part No.
|
|
J2 |
JUMPER WIRE 7x5x7 |
WX01070705 |
Wire
|
Ref#
|
Description |
MFR.
Part No.
|
|
CN4-CN15 |
LEAD WIRE #26 70MM RED 15:15 |
WL0207009Z |
Disclaimer: Although the greatest care has been taken while compiling these documents,
we cannot guarantee that the instructions will work on every radio presented.
