Galaxy DX Radios DX2517
Documentation Project
CBTricks.com

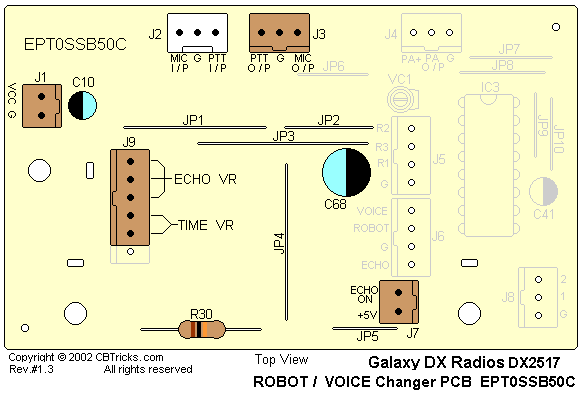

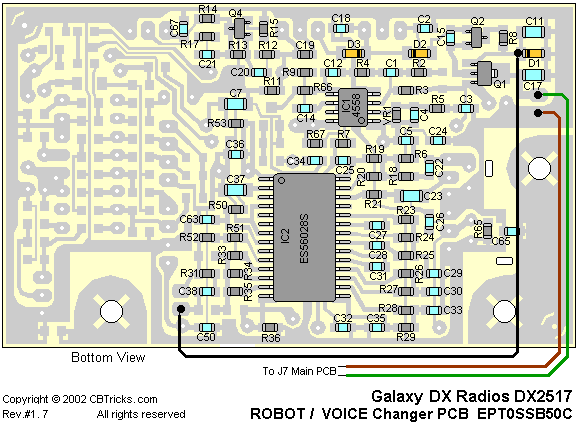

Echo PCB ( EPTOSSB50C ) (Early Version for DX2517)

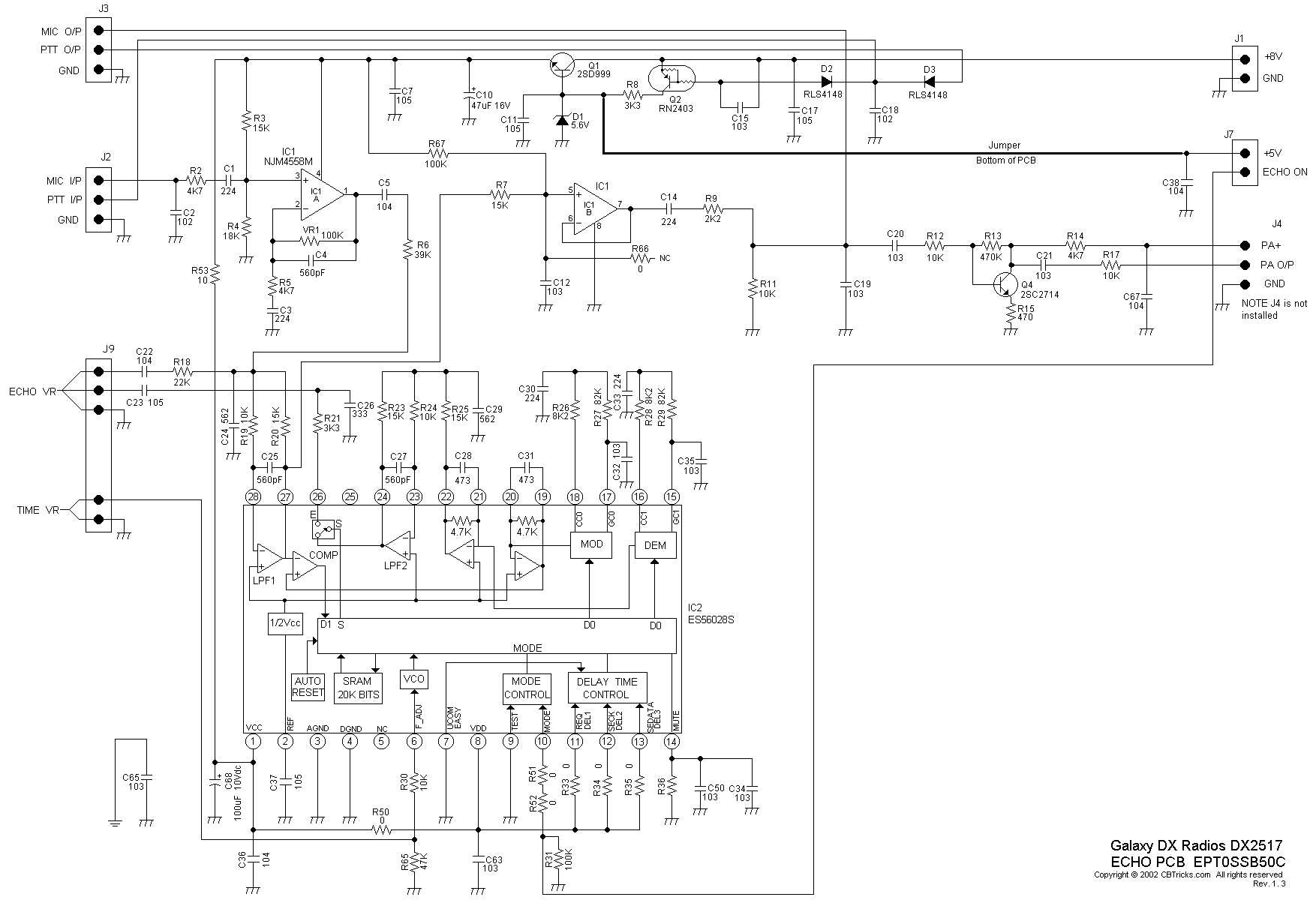

Schematic Diagram
Schematic Diagram

Disclaimer: Although the greatest care has been taken while compiling these documents,

we cannot guarantee that the instructions will work on every radio presented.
