Galaxy
DX Radios DX22B
Documentation Project
CBTricks.com

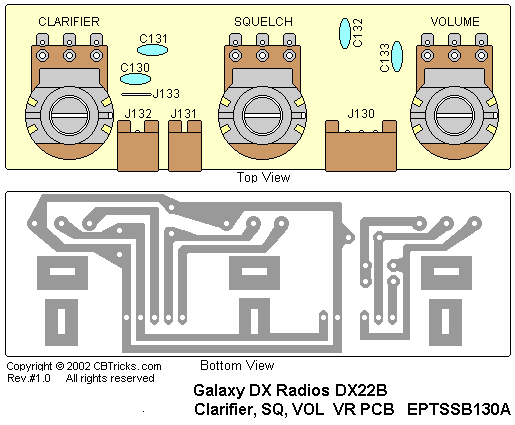

CLARIFIER SQUELCH, VOL.
VR PCB(EPTSSB130A)
Schematic
Diagram
| Ref# | Description |
MFR.
Part No.
|
|
CLARIFIER / SQ/ VOL
P.C.B. EPTSSB130A |
#T-106D-P11 |
|
|
CLARIFIER / SQ/ VOL P.C.B. |
EPTSSB130A |
Capacitors
|
Ref#
|
Description |
MFR.
Part No.
|
|
C130 |
C/C 0.001UF 50W V SL Z |
CC0501027L |
|
C131 |
C/C 0.001UF 50W V SL Z |
CC0501027L |
|
C132 |
C/C 0.001UF 50W V SL Z |
CC0501027L |
|
C133 |
C/C 0.001UF 50W V SL Z |
CC0501027L |
Potentiometers
|
Ref#
|
Description |
MFR.
Part No.
|
|
AF Gain |
V/R 50KA |
RV50303461 |
|
SQ |
V/R 50KB |
RV50303463 |
|
Clarifier |
V/R 1KB |
RV10203465 |
Connectors
|
Ref#
|
Description |
MFR.
Part No.
|
|
J130 |
PCB CONNECTOR SOCKET 5P L TYPE |
EX07N48497 |
|
J131 |
PCB CONNECTOR/S 2P L TYPE |
EX07N48204 |
|
J132 |
PCB CONNECTOR/S 3P L TYPE |
EX07N48546 |
|
J133 |
JUMPER WIRE 7x5x7 |
WX01070705 |
