Roger Beep Tone Mod

The tone and time of the roger beep on the DX77HML can be changed as follows:

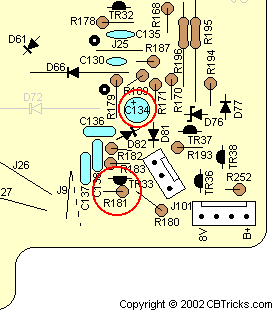

The roger beep tone is controlled by R181 which is 220K ohms:
for a higher tone try 150K to 200K ohms for a lower tone try 270K to 2M ohms

The roger beep time is controlled by C134 which is [email protected] DC:
for longer time try 5uF or [email protected] DC for shorter time try [email protected] DC
