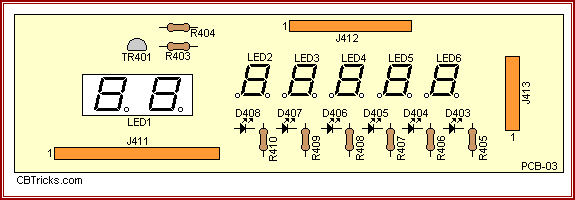

Ref. No.	Description	Ref. No.	Description
D403	LED 2x5mm Red For USB	R403	TJ 1K
D404	LED 2x5mm Red For LSB	R404	TJ 10K
D405	LED 2x5mm Red For AM	R405	TJ 820
D406	LED 2x5mm Red For PA	R406	TJ 820
D407	LED 2x5mm Red For CD	R407	TJ 820
D408	LED 2x5mm Red For TX	R408	TJ 820
LED1	LED For Frequency Counter	R409	TJ 820
LED2	LED For Frequency Counter	R410	TJ 820
LED3	LED For Frequency Counter	TR401	2SC945P
LED4	LED For Frequency Counter	J411	14Pins PCB Header Male Pitch 2.5
LED5	LED For Frequency Counter	J412	13Pins PCB Header Male Pitch 2
LED6	LED For Frequency Counter	PCB-03	PCBX-9631



---
