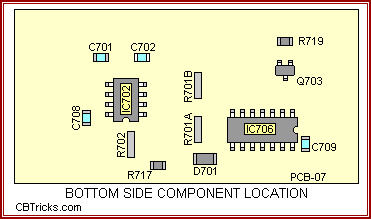

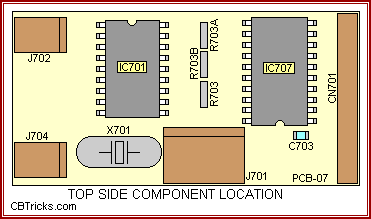

Ref. No.	Description	Ref. No.	Description
C701	Chip Cer. Cap CG47pF 50V	J702	R/A 2pins PCB Header Male Pitch 2
C702	Chip Cer. Cap CG47pF 50V	J704	R/A 2pins PCB Header Male Pitch 2
C703	Chip Cer. Cap Y 0.1uF 50V	R701A	Chip Net. Res. 5.1K
C708	Chip Cer. Cap Y 0.1uF 50V	R701B	Chip Net. Res. 5.1K
C709	Chip Cer. Cap Y 0.1uF 50V	R702	Chip Net. Res. 10K
Q703	Chip Transistor KTC3876Y	R703A	Chip Net. Res. 5.1K
D701	1N4148	R703B	Chip Net. Res. 5.1K
IC701	Z86E04	R703C	Chip Net. Res. 5.1K
IC702	HT93LC46-A	R717	Chip Res. 5.1K
IC706	MC74HC164	R719	Chip Res. 10K
IC707	MC145106	X701	Crystal 8.00MHz
CN701	Connector Wafer 8 pins	PCB-07	PCBX-9824
J701	R/A 5pins PCB Header Male Pitch 2



---
