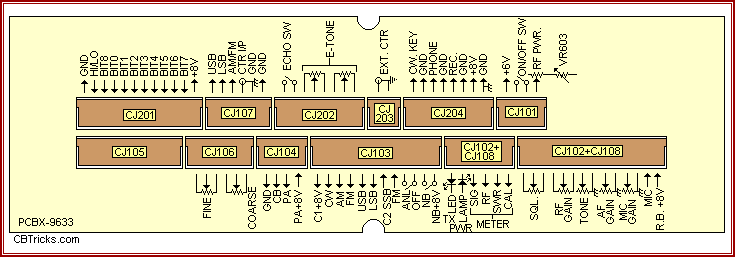

CONNECTOR BOARD ASSEMBLY PCB-13
Parts Allcation
| Ref. No. | Description | Ref. No. | Description |
| C508 | Cer. Mutilayer X7R0.1uF | CP101 | 4Wire assembly / Header Female Pitch 2.5 |
| CJ101 | 4Pins PCB Header Male Pitch 2.5 | CP102 | 7Wire assembly / Header Female Pitch 2.5 |
| CJ102 | 6Pins PCB Header Male Pitch 2.5 | CP103 | 12Wire assembly / Header Female Pitch 2.5 |
| CJ103 | 12Pins PCB Header Male Pitch 2.5 | CP104 | 4Wire assembly / Header Female Pitch 2.5 |
| CJ104 | 4Pins PCB Header Male Pitch 2.5 | CP106 | 6Wire assembly / Header Female Pitch 2.5 |
| CJ106 | 6Pins PCB Header Male Pitch 2.5 | CP107 | 2Wire assembly / Header Female Pitch 2.5 |
| CJ107 | 2Pins PCB Header Male Pitch 2.5 | CP108 | 14Wire assembly / Header Female Pitch 2.5 |
| CJ108 | 14Pins PCB Header Male Pitch 2.5 | CP701 | 5Wire assembly / Header Female Pitch 2.5 |
| CJ201 | 12Pins PCB Header Male Pitch 2.5 | CP702 | 2Wire assembly / Header Female Pitch 2.5 |
| CJ202 | 4Pins PCB Header Male Pitch 2.5 | CP704 | 2Wire assembly / Header Female Pitch 2.5 |
| CJ203 | 2Pins PCB Header Male Pitch 2.5 | PCB-13 | PCBX-9633 |
| CJ204 | 6Pins PCB Header Male Pitch 2.5 |
