Uniden Grant XL

EXPO 100 MODEL C

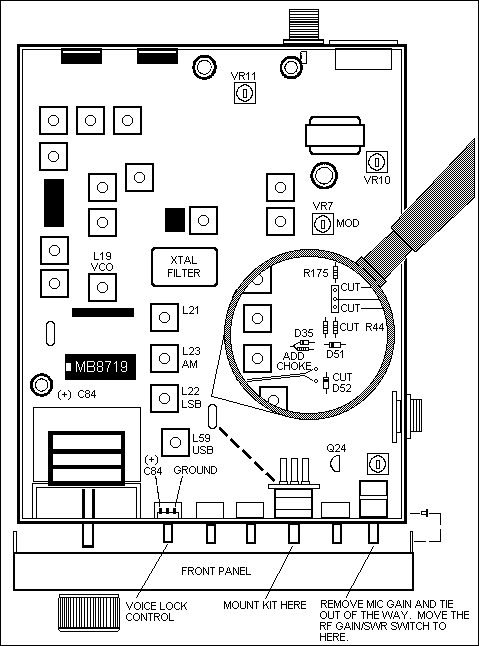

GENERATE/GRANTXL.gif



AM MOD = VR7 AM POWER = VR10 SSB POWER = VR11

Clarifier:

Cut wires from the Voice Lock control and solder one to the (+) of C84, and the other side to ground.

Cut R44, D52, and solder the choke in series with diode D35.

Copyright CB Tricks -- © 1998. All rights reserved

WARNING! This unit is Not Legal For Class D CB Use In The U.S.A.
