Uniden PC-66XL

EXPO 100 MODEL S- or S+

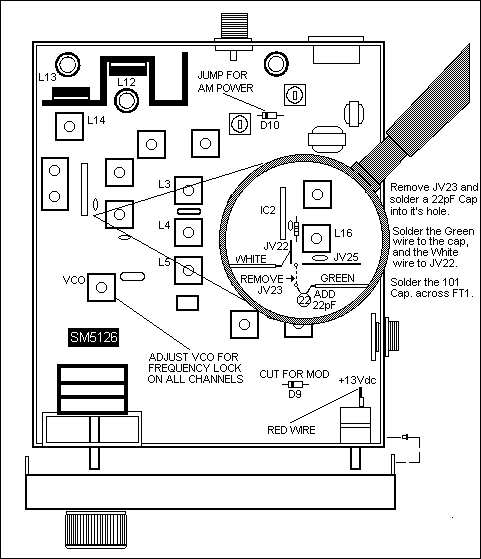

GENERATE/PC66XL.gif



Tuning:

* Tune the VCO coil slightly to ensure operation on all channels while transmitting.



* Tune coils L# and L4 for best Receive while switching the Kit between Normal and Extra.



* Switch to the Extra side of the switch and align the small trimmer capacitor on the Kit foe Center Channel Frequency.



* Tune coils L12, L13, and L14 for maximum Transmit power, and L2 for best Receive on all channels.
