Model K


EXPO 100 EXPANDER



Instructions



1.

Remove the covers from the unit and rewove the 11.3258 crystal next to PLL chip MB8734.

2.

Plug the removed crystal into the expander board and mount the expander by drilling a hole in the cabinet as close to the crystal socket as possible.

3.

Solder the wires from the expander board to the crystal socket keeping the wire as short as possible.

4.

Place the provided label to the side of the switch and position the knob to correspond.



Slider



1.

Follow the wires from each end terminal of the clarifier control and cut them at the board.

2.

Solder right terminal of clarifier to ground, and left terminal to the (+) side of C66 behind the chip.

3.

Cut diode D36 just in front of the PLL chip.

4.

Unsolder the stripped end of the varactor diode next to the crystal socket, and solder the provided expander choke in series.

5.

Cut resistor R187 to the right front of the circuit board.



Alignment



1.

Turn the unit on and place the expander switch in the normal position, the mode switch to AM, and the clarifier fully clockwise. Using a frequency counter while transmitting, adjust the trimmer capacitor next to the crystal socket to read +1 KHz above center frequency.

2.

The transformers Ll9 and L20 can be adjusted individually for AM and SSB frequency correction as well as the trimmers on the expander board.

3.

Power and modulation adjustments are shown in Figure D.



Summary

The unit will now extend far above and below its normal operating range, as well as slide and track with the clarifier control. A slight adjustment of the VCO may be necessary if the unit drops out before reaching its maximum channels.



NOTE: If trouble is encountered bringing the normal crystal on frequency add a 39 pf capacitor in series with one of the expander wires and realign.

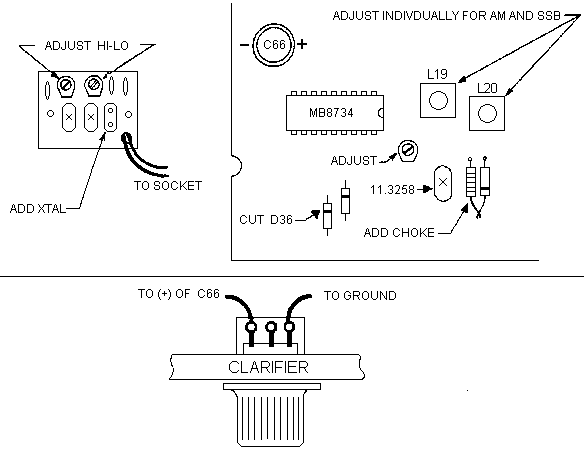

 EXPO 100 EXPANDER

MODEL K





GENERATE/EXPO-K.gif



AM Power = VR6 SSB Power = VR7 Modulation = Cut TR32



Note: Additional frequencies can be added by changing the MB8734 PLL Chip to a MB8719 and adding a SPST switch between pin 10 and ground.
