Cobra 148GTL

EXPO 100 MODEL L



GENERATE/148GTL.gif

Also See: EXPO FAQ

AM MOD. = VR501 AM POWER = VR10 SSB POWER = VR11

CLARIFIER:

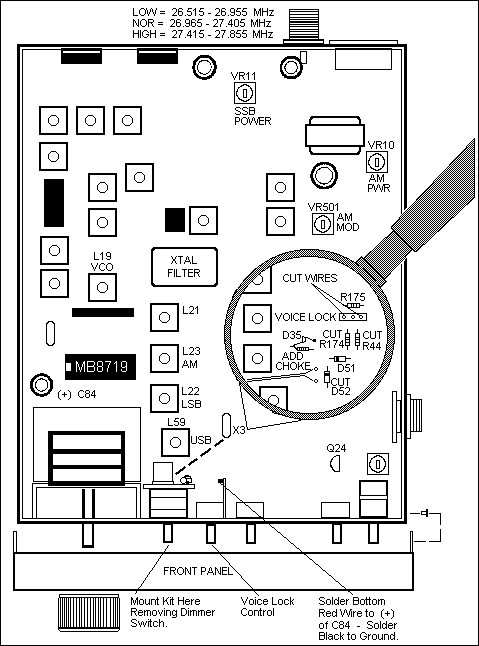

*Cut the Two end wires from the Voice Lock control at the board, and solder the RED to the (+) of C84 - Solder the Black wire to ground.

*Cut R44, D52, and solder the choke in series with diode D35 Keep the Polarity of D35 consistent with the diagram above.

*Solder a jumper wire across resistor R174.
