Cobra 29LTD WX ST (Sound Tracker)

EXPO 100 MODEL A+

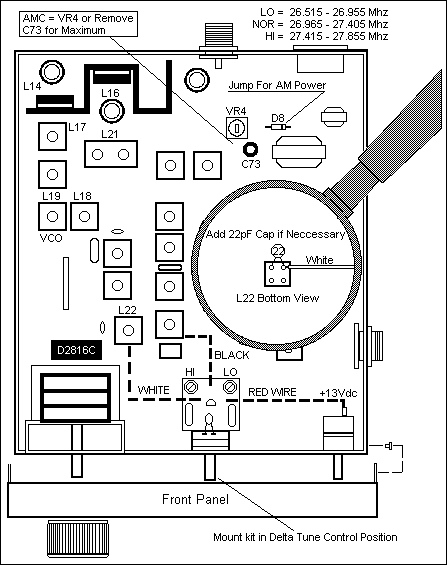

GENERATE/STRACK29.gif

 Tuning:

Tune coil L22 one quarter turn clockwise and check for Normal 40 channel operation. Tune coils L17, L14, and L16 for maximum power output on channel 1 in the Normal Band. Switch to High position and tune L19, and L18 again to lock in all channels. Slight adjustments to coil L21 may be necessary to broad band power output. Be carefull adjusting this coil since it is critical for Power Balance. The left side adjustment is the extreme Low Freq. and the right side is the extreme High. Ajust the kit trimmers for proper frequency. If problems occur, try re-adjusting coil L22.

Copyright CB Tricks -- © 1998. All rights reserved

WARNING! This unit is Not Legal For Class D CB Use In The U.S.A.
