ADDENDUM
ALIGNMENT PROCEDURE #8
This alignment procedure applies to the Uniden D2824 chassis.
Alignment: Align 1-13, L14 and the loop filter as per the general alignment procedure.

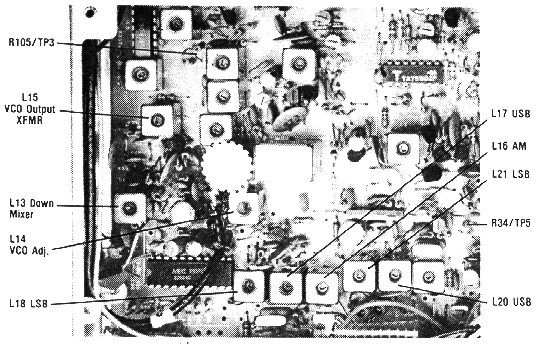

Fig. A2 - D2824 Chassis Alignment

NOTE: The following alignment is not normally necessary.
Offset alignment:
Radio Control Settings:
Clarifier - centered Mode - LSB DS - 400 - 2-"155
1. Connect a frequency counter to TP-3.
2. Adjust L-18 for a reading of 16.4575 MHz ±40Hz.
3. Set mode switch to USB and align L17 for 16.4625 MHz ±40 Hz.
4. Set the mode switch to AM and align L16 for 16.460 MHz ±40 Hz.
5. Set the mode switch to USB. Connect the frequency counter to TP-51-34.
6. Align L20 for 10.6925MHz ±10Hz.
7. Set the mode switch to LSB and align L21 for 10.6975MHz ± 10Hz.

This completes the alignment procedure. The receiver is ready for operation.
