Section 3
ALIGNMENT PROCEDURE #7
This section applies to the alignment of SBE chassis. Alignment: Align L901 and T1 as per the general alignment procedure described in general alignment procedure.

Because X901 has now changed frequency, L904 and L905 must be realigned.
1. Align L905 for the correct AM frequency.
2. Align L904 for the correct LSB frequency.

This completes Alignment Procedure #7.

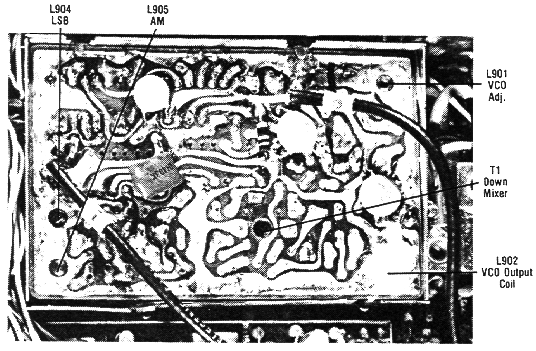

Fig. 30 - Parts Location SBE Chassis
