Section 3
ALIGNMENT PROCEDURE #5
This section applies to the Palomar 500 chassis alignment.

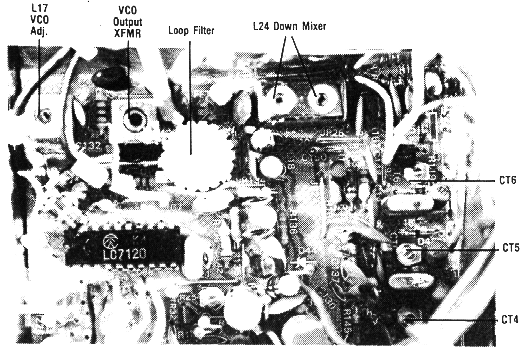

Fig. 28

NOTE: The alignment of L16 is critical for a clean sounding radio. If L16 is out of alignment, the radio may warble on LSB.
For alignment refer to alignment procedure #4.

This completes Alignment Procedure #5. The receiver ;s ready for operation.
