Section 2
INSTALLATION #11
This section describes the DS-400 installation to the SM5104 chassis.

1. Locate and remove the SM5104 PLL Chip.
2. Connect the center of Coax #1 to the point where Pin 2 of the SM5104 was connected.
3. Connect a jumper wire between the points where Pins 7 and 8 were connected.
4. Remove the varactor diode D307.
5. Reinstall the cathode (banded end) of D307 to the point where the anode was connected.
6. Solder the anode of D307 to ground.
7. Disconnect the side of R330 (10K) going to Q306.
8. Connect the center of Coax #2 to the disconnected lead of R330.
9. Install the variable loop filter as shown in Figs. 14 and 15. (Seepage 6)
10. Short the 1 K resistor (R5) inside 400. Refer to Fig. 21.
11. To comply with FCC regulations remove Q704.
12. Connect the black wire to a good ground point. (Radio circuit ground)
13. Connect the red wire to a 12V source. Refer to programming section.

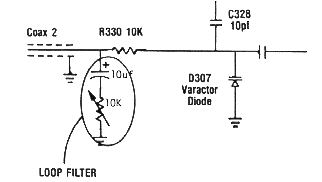

Fig. 14 - Schematic Diagram of modified SM5104 chassis

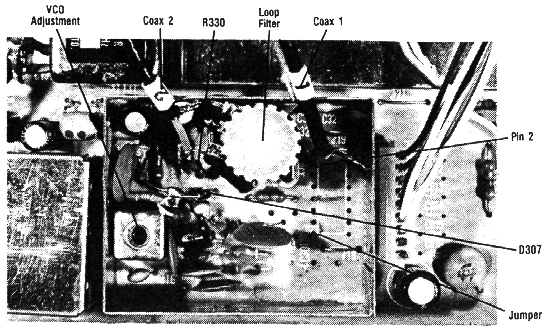

Fig. 15 - Sears Roadtalker Parts Location, SM5104 chassis

This completes the installation procedure. Before operation, the DS-400 must be programmed and the radio must be realigned. Turn to the programming section and proceed.
