Wawasee Electronics JB-150
Documentation Project
CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing and using this information.



Diagrams

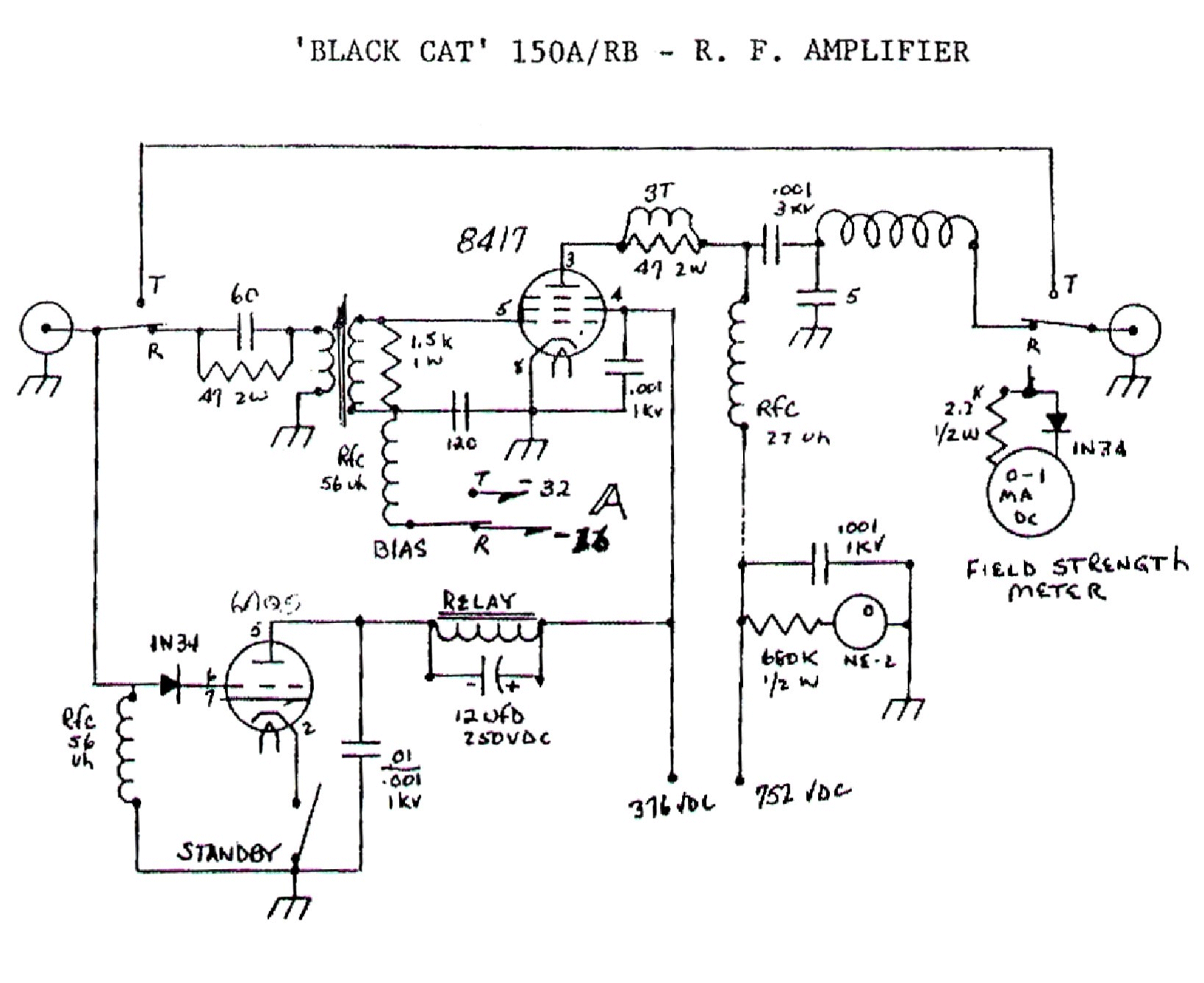

     JB-150A Schematic Diagram
     JB-150A Schematic Diagram

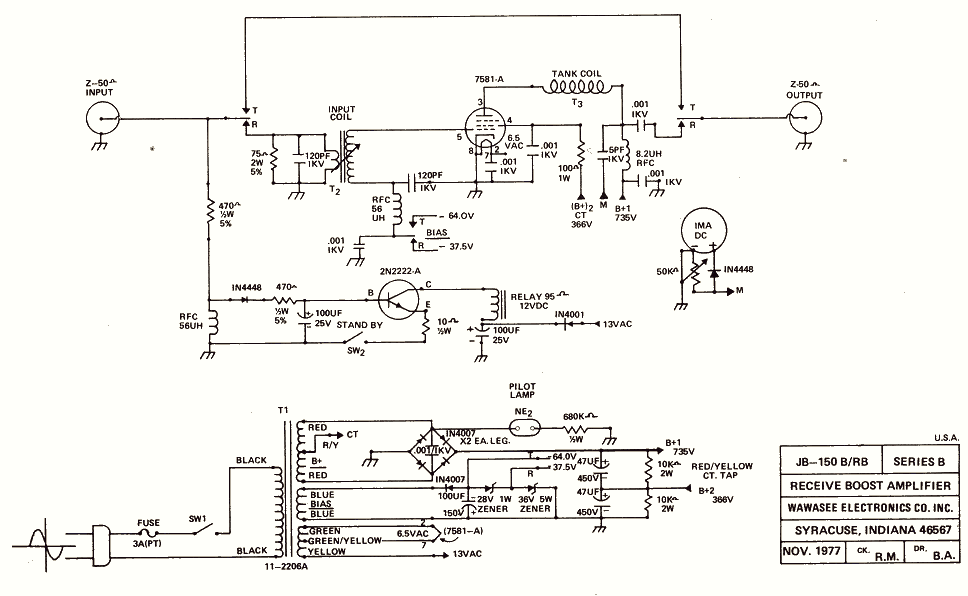

     JB-150B Schematic Diagram
     JB-150B Schematic Diagram
