Thunderbolt 101
Documentation Project
CBTricks.com

TIPS:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing and using this information.

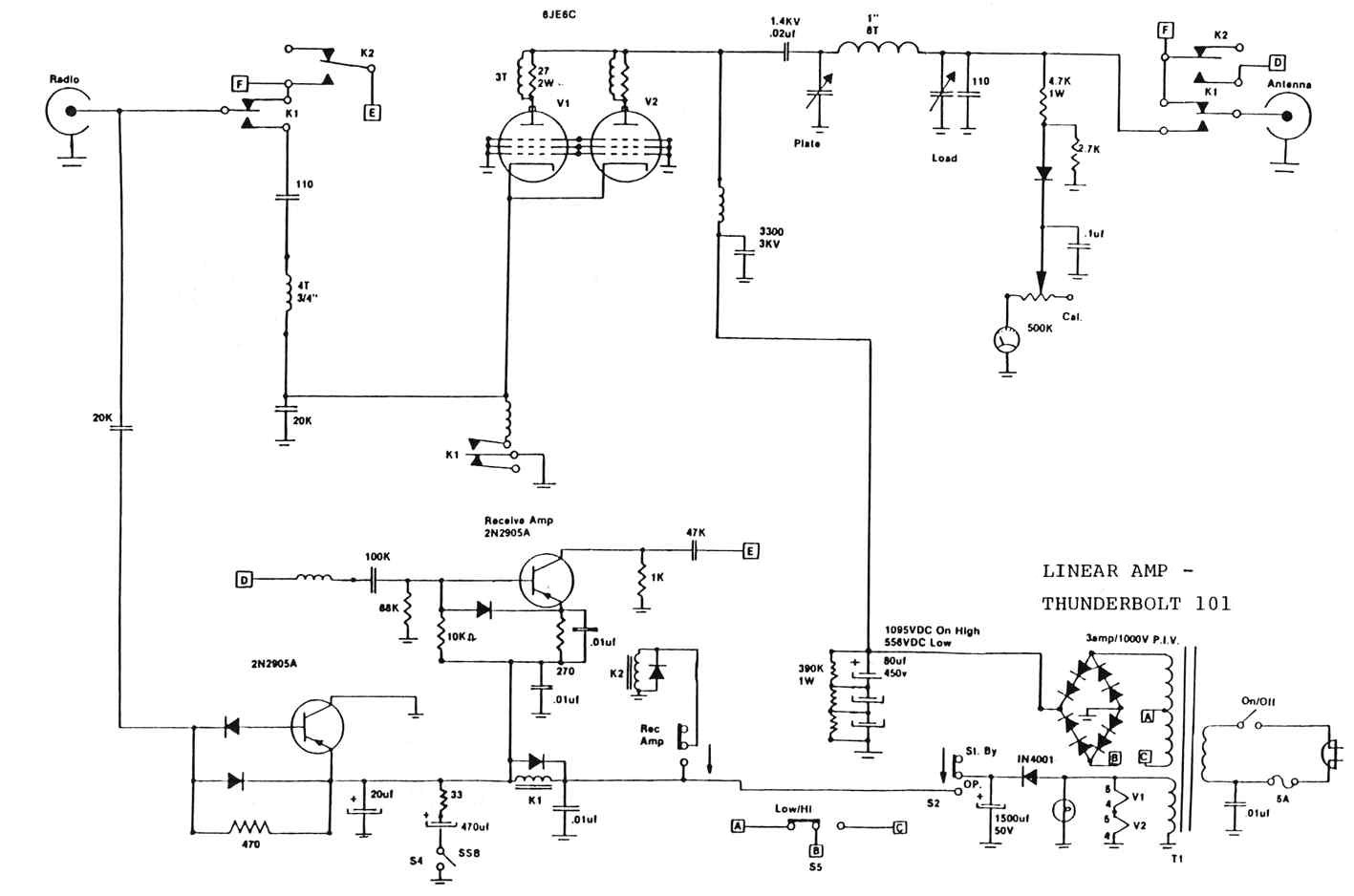

Schematic Diagram
Schematic Diagram







Copyright © 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 CBTricks.com
