Siltronix LA-600
Documentation Project
CBTricks.com



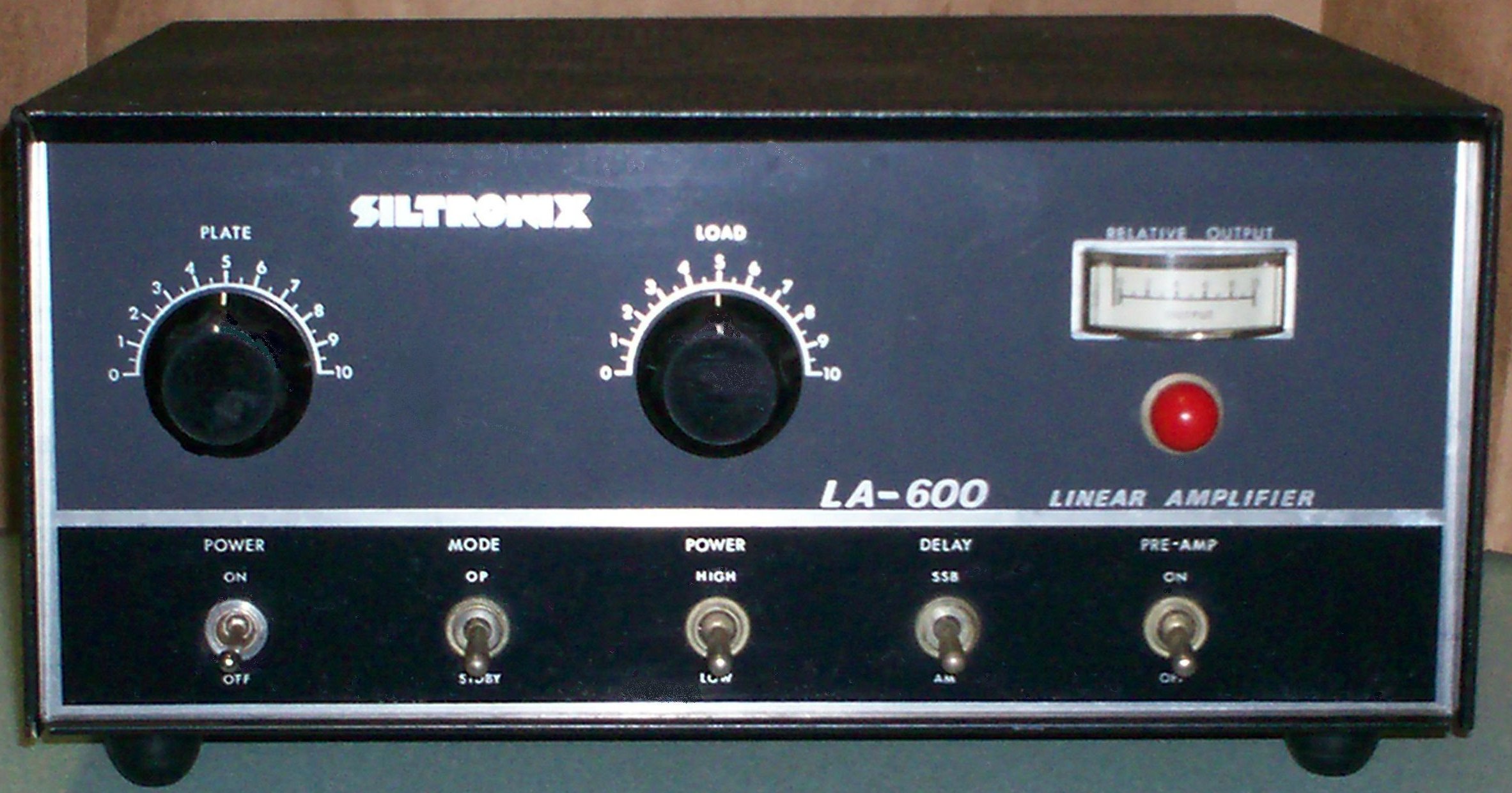

Click Picture to see close-up

Please Note:
You need to have Acrobat Reader version 5 or newer installed to view the files with icon.

If the files with or icon will not display see the Site FAQ for help on printing and using this information.

This is a project of Don Thomas he is looking for other Siltronix Amp owners to compare notes with.

Contact him at [email protected] if you have infomation.

Note: This project is on going so check back for updates.
Owner's Manual
DIAGRAMS

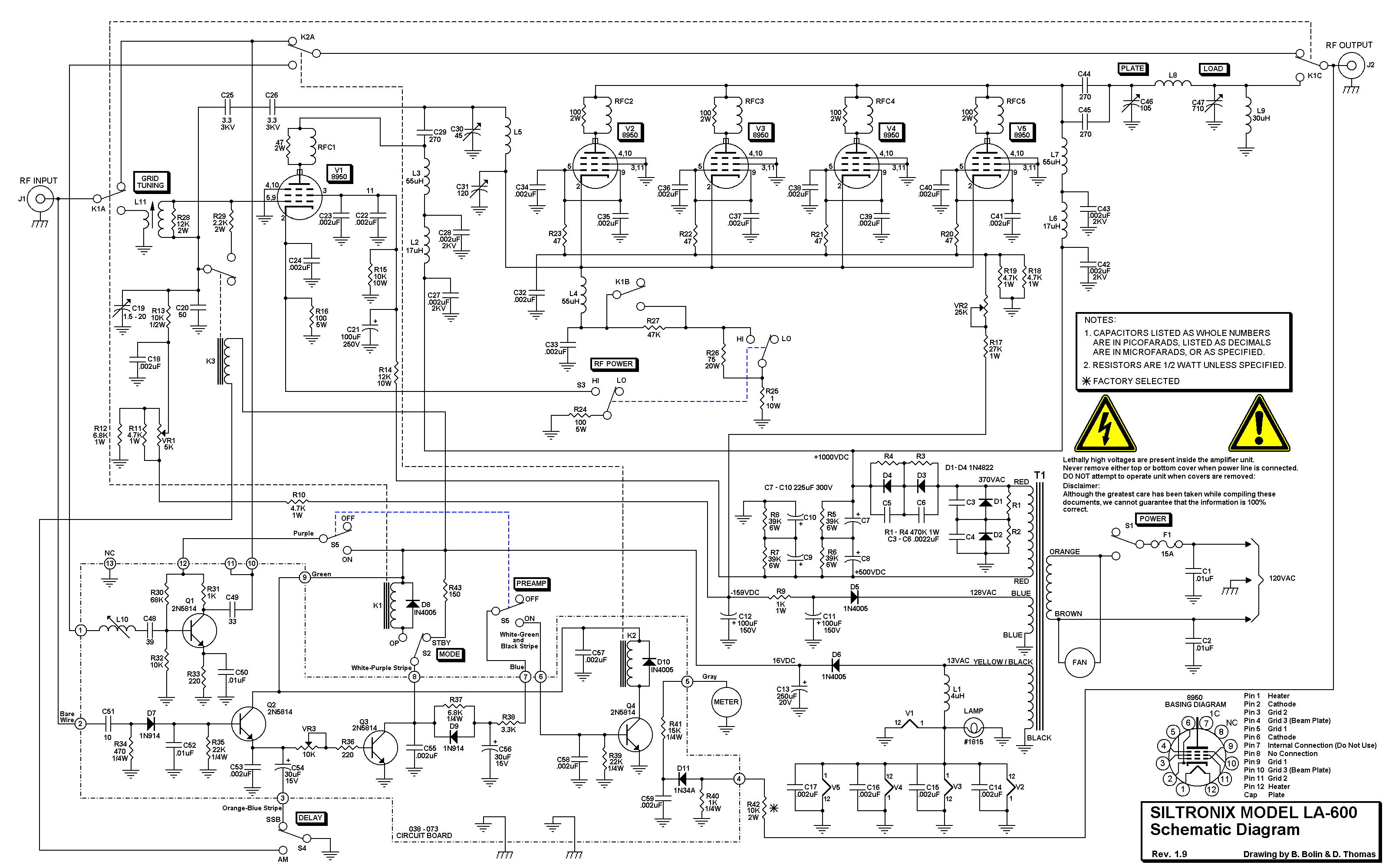

     Schematic Diagram

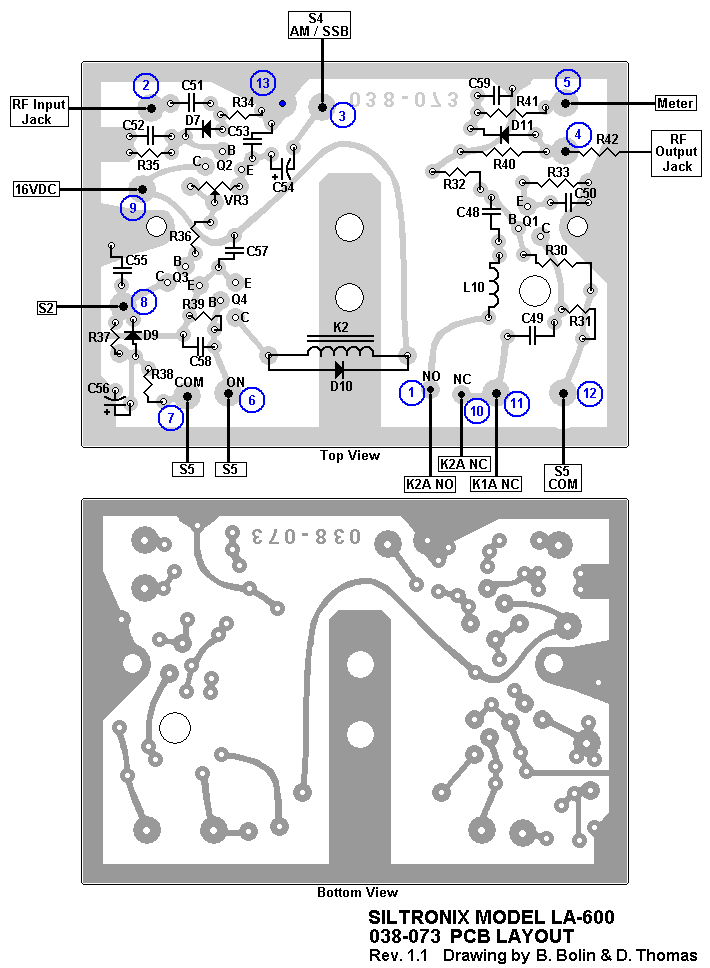

     PCB Layout
     Schematic Diagram
     PCB Layout
